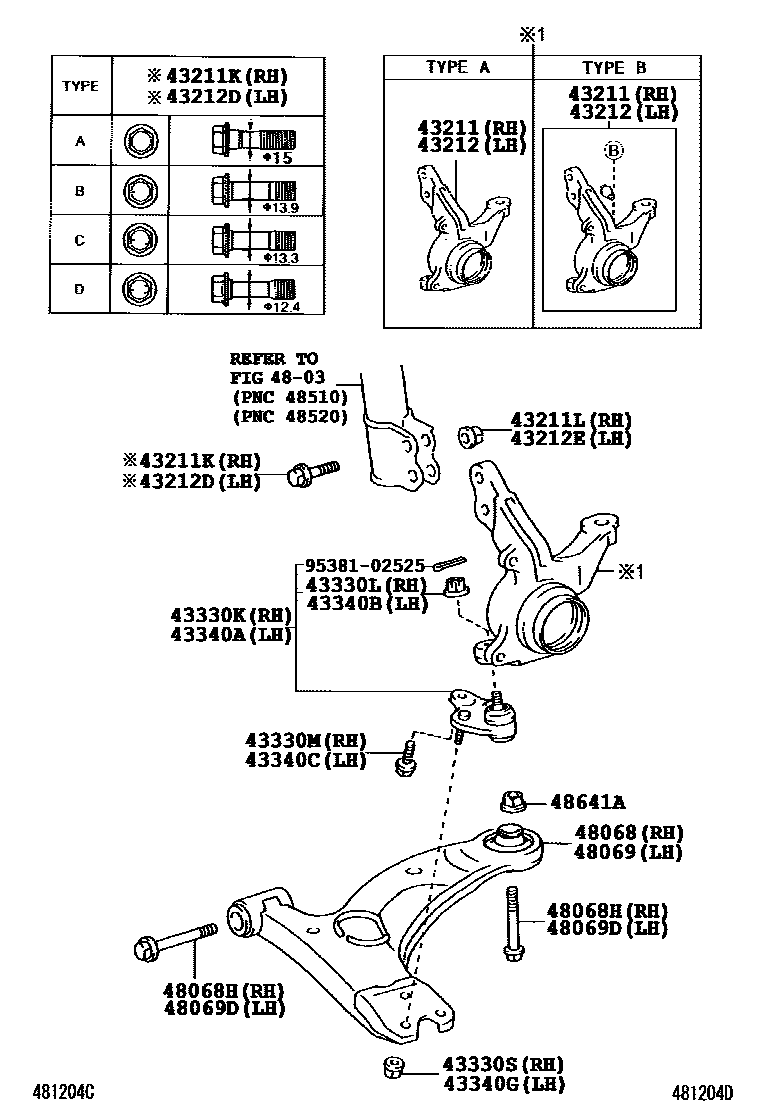

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.; W/O(ABS),TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.; W/O(ABS),TYPE B:REFER ILLUST.
43211KBOLT (FOR STEERING KNUCKLE RH)
*12-1.25PX29.5-23
OD=15.0,TYPE A:REFER TO ILLUSTRATION
OD=13.9,TYPE B:REFER TO ILLUSTRATION
OD=13.3,TYPE C:REFER TO ILLUSTRATION
OD=12.4,TYPE D:REFER TO ILLUSTRATION
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
TYPE A:REFER ILLUST.
W/O(ABS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.; W/O(ABS),TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.; W/O(ABS),TYPE B:REFER ILLUST.
43212DBOLT (FOR STEERING KNUCKLE LH)
*12-1.25PX29.5-23
OD=15.0,TYPE A:REFER TO ILLUSTRATION
OD=13.9,TYPE B:REFER TO ILLUSTRATION
OD=13.3,TYPE C:REFER TO ILLUSTRATION
OD=12.4,TYPE D:REFER TO ILLUSTRATION
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
4803FRONT SPRING & SHOCK ABSORBER
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
W/O(ABS)
W(ABS)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
SINGAPORE SPEC
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
9538102525
main95381-02525
21 parts on this diagram · 1 diagram in section
