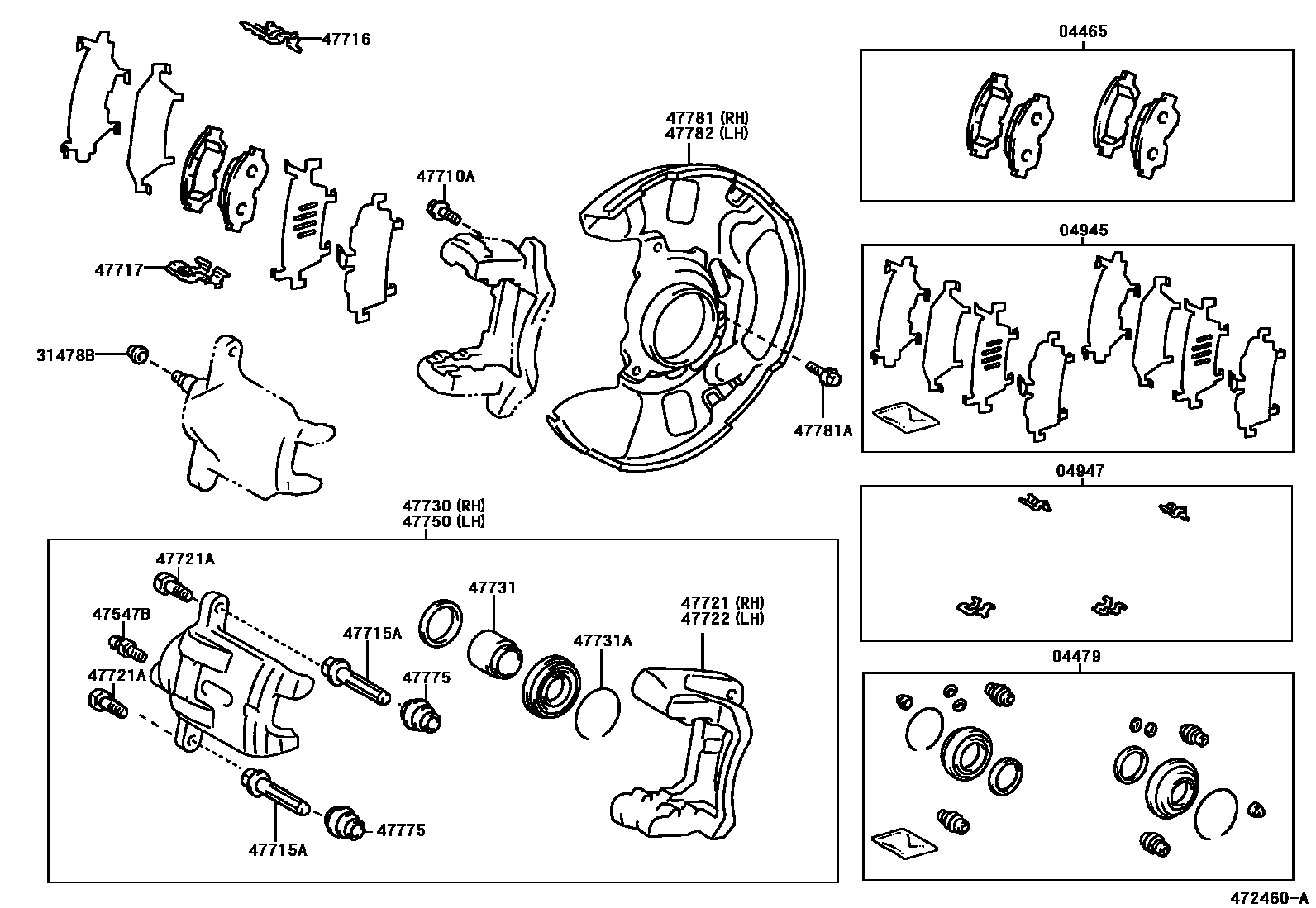

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02110iZZE122..IND200508

MARK TRW PAGID 648

main04465-12581iZZE121..TH200105-200205

MARK AISIN PC554

main04465-12590iZZE12#200103-200105

MARK AISIN PC554

main04465-12592iZZE121..TH200205-200403

MARK AISIN PC554

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02110iZZE122..IND200508-200805

main04478-02290iZZE122..IND200805

main04479-02150iZZE12#..IDN,TH200311-200801

main04479-02160iZZE122..IND200301-200508

main04479-20320iZZE122..IDN,MA,PHL,VN200105-200403

main04479-32140iZZE12#..TAIW200103-200310

main04479-47020iZZE121..MA,PHL200401-200802

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02030iZZE12#..TAIW200103-200310

main04945-02060iZZE12#..TH200205-200311

main04945-20210iZZE12#..PHL200401-200802

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02040iZZE12#..TAIW200103-200211

main04947-02090iZZE122..IND200508

main04947-20110iZZE121..TH200205-200403

main04947-47010iZZE121..TH200105-200205

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-02010×2iZZE12#..TAIW200409-200712

main31478-30010×2iZZE12#..IDN,TH200310-200801

main47548-02050×2iZZE122..IND200508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iZZE12#..IDN,TH200311-200801

main47547-27050×2iZZE12#..TAIW200310-200712

main90080-93014×2iZZE122..IND200301-200508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-02040×4iZZE121..16E..TAIW200103-200211

main47715-52010×4iZZE12#..IDN,TH200105-200311

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-02170×4iZZE122..IND200301-200508

main47716-12070×2iZZE121..MA,PHL200105-200401

main47716-20200×2iZZE122..IDN,TH200103-200311

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030×2iZZE121..MA,PHL200105-200401

main47717-20100×2iZZE122..MA,PHL200103-200401

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02070iZZE12#..TAIW200103-200310

main47721-02200iZZE12#..IDN,TH200311-200801

main47721-09141iZZE122..IND200508-200805

main47721-09440iZZE122..IND200805

main47721-12220iZZE121..MA,PHL200401-200802

main47721-20440iZZE122..PHL200401-200802

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90080-10190×4iZZE122..IND200508

*8-1.00PX22-14.5

main90080-10247×4iZZE12#..TAIW200310-200712

*8-1.00PX23-15

main90105-08164×4iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-09450iZZE122..IND200805

main47722-02020iZZE12#..TAIW200103-200310

main47722-02090iZZE12#..IDN,TH200311-200801

main47722-09051iZZE122..IND200301-200508

main47722-12040iZZE121..MA,PHL200401-200802

main47722-20130iZZE122..IDN,MA,PHL,VN200105-200403

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02070iZZE12#..(16J,18E,18G)..TAIW200103-200310

main47730-02180iZZE12#..IDN,TH200311-200801

main47730-02200iZZE122..IND200508

main47730-12490iZZE121..TH200105-200205

main47730-20600iZZE122..MA,PHL200105-200401

47731PISTON, FRONT DISC BRAKE

main47731-02160×2iZZE12#..IDN,TH200311-200801

main47731-12170×2iZZE121..MA,PHL200401-200802

main47731-20260×2iZZE122..MA,PHL200103-200401

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iZZE121..16E..TAIW200103-200211

main90522-66001×2iZZE121..TH200105-200205

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02090iZZE12#..(16J,18E,18G)..TAIW200103-200310

main47750-02180iZZE12#..IDN,TH200311-200801

main47750-02200iZZE122..IND200301-200508

main47750-12490iZZE121..TH200105-200205

main47750-20510iZZE122..TH200105-200205

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-02130×4iZZE12#..IDN,TH200311-200801

main47775-52010×4iZZE12#..MA,PHL200103-200401

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02080iZZE122..IND200311

main47781-12240iZZE12#..TAIW200310-200712

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iZZE12#..TAIW200310-200712

main90119-T0005×6iZZE12#..TH200209-200311

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02080iZZE122..IND200311

main47782-12240iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

21 parts on this diagram · 4 diagrams in section
