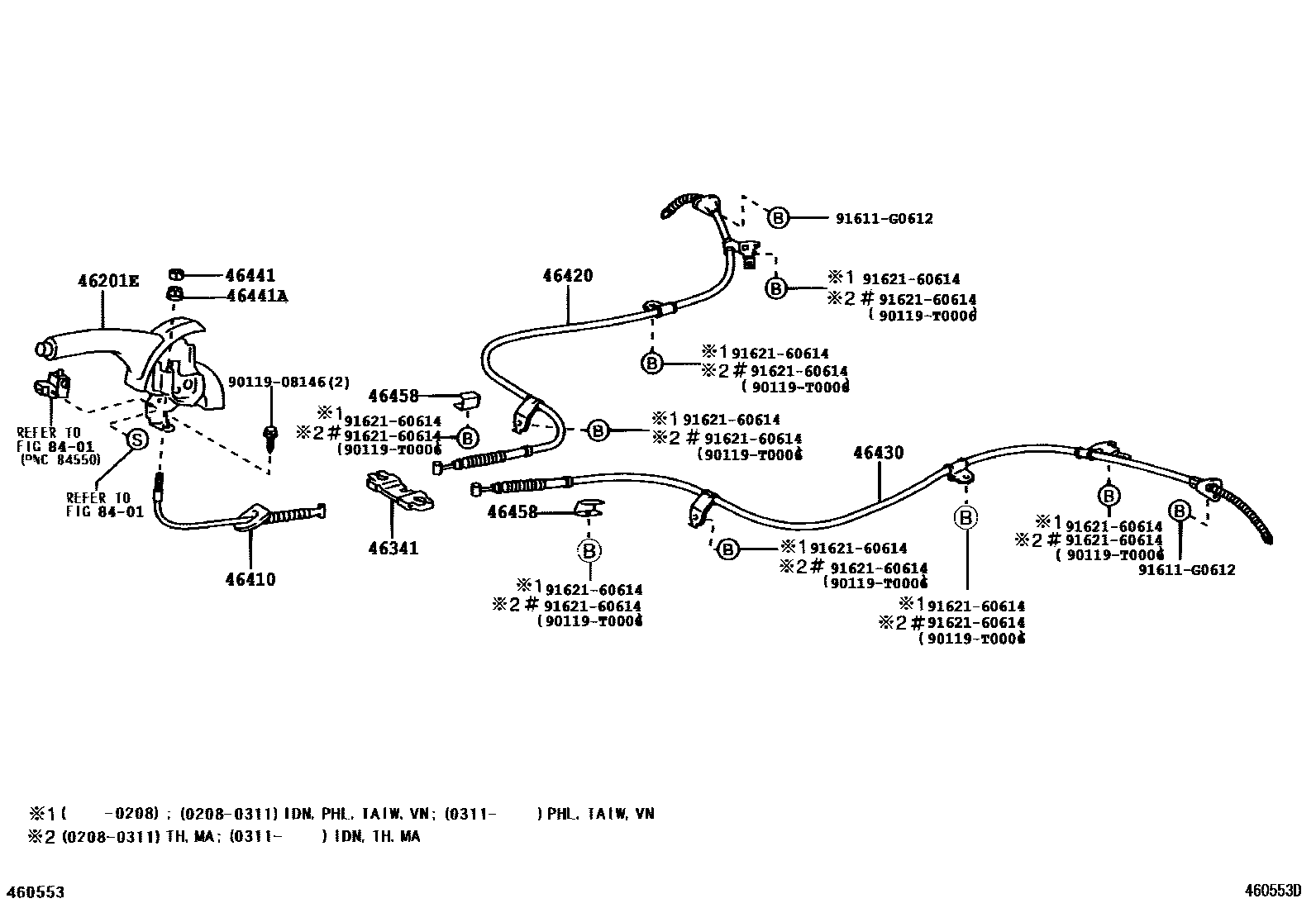

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0005 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02060-B0iZZE121..(16,16J)..TH200105-200801

DK. GRAY,TRIM1#

main46201-02060-E0iZZE121..MTM..16E..TH200107-200801

SANDAL WOOD,TRIM0#

main46201-02060-E0iZZE121..ATM..16E..TH200211-200801

W/O(ABS),SANDAL WOOD,TRIM0#

main46201-02070-E0iZZE121..MTM..16E..TH200105-200801

SANDAL WOOD,TRIM0#

main46201-02080-B0iZZE122..18E..TH200105-200311

DK.GRAY,TRIM1#

main46201-02080-E0iZZE122..TH200311-200801

CHROME PLATED,SANDAL WOOD,TRIM0#

main46201-02080-E0iZZE122..(18E,18G)..(IND,MA,TH)200105-200508

SANDAL WOOD,TRIM0#

main46201-02090-B0iZZE121..TAIW200103-200802

DK. GRAY,TRIM1#

main46201-02090-B0iZZE122..18E..TAIW200211-200310

W/O(ABS),DK. GRAY,TRIM17,18

main46201-02090-B0iZZE121..TAIW200310-200712

W/O(ABS),DK. GRAY,TRIM14,15

main46201-02090-E0iZZE122..18E..TAIW200211-200712

W/O(ABS),SANDAL WOOD,TRIM0#

main46201-02100-B0iZZE122..PHL200103-200605

DK. GRAY,TRIM1#

main46201-02100-B0iZZE122..18E..TAIW200310-200712

DK. GRAY,TRIM14,15

main46201-02100-B0iZZE122..18E..TAIW200103-200310

DK. GRAY,TRIM17,18

main46201-02100-E0iZZE12#..(16E,18E)..TAIW200103-200712

SANDAL WOOD,TRIM0#

main46201-02110-B0iZZE122..PHL200310-200802

CHROME PLATED KNOB,DK. GRAY,TRIM1#

main46201-02110-B0iZZE122..18E..TAIW200411-200712

L&S PACKAGE,DK. GRAY,TRIM1#

main46201-02110-B0iZZE122..LHD..ATM..18G200103-200401

DK. GRAY,TRIM1#

main46201-02110-E0iZZE122..18G..TAIW200103-200712

SANDAL WOOD,TRIM0#

main46201-02250-B0iZZE122..18E..TAIW200411-200511

DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-20070iZZE121..16E..TAIW200103-200802

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02060iZZE121..16E..TAIW200103-200802

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02020iZZE122..18E..TAIW200211-200712

W/O(ABS)

main46420-02020iZZE121..16J..TAIW200103-200310

main46420-02060iZZE122..TAIW200103-200712

main46420-02100iZZE121..16E..TH200205-200311

main46420-02100iZZE121..ATM..16J..TH;ZZE12#..MTM..(16,16E,16J,18J)..(IDN,TH)200311-200801

W/O(ABS)

main46420-12490iZZE122..VN200105-200802

main46420-12510iZZE121..(16,16J)..TH200105-200802

main46420-12541iZZE122..IND200301-200508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02020iZZE121..TAIW200211-200712

W/O(ABS)

main46430-02020iZZE121..16J..TAIW200103-200310

main46430-02060iZZE122..TAIW200103-200712

main46430-02100iZZE121..16E..TH200205-200311

main46430-02100iZZE121..ATM..16E..TH200311-200801

W/O(ABS)

main46430-12400iZZE122..MA,VN;ZZE121..ATM..MA200105-200802

main46430-12410iZZE121..(16E,16J)..PHL200105-200802

main46430-12441iZZE122..IND200301-200508

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iZZE12#..IDN,TH200103-200802

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06171iZZE121..16E..TAIW200103-200802

46458RETAINER, CABLE

main46458-02030iZZE12#..MA200105-200801

main46458-28010iZZE122..IDN200103-200802

8401

9011908146

main90119-08146

90119T0006

main90119-T0006

91611G0612

main91611-G0612

9162160614

main91621-60614

13 parts on this diagram · 4 diagrams in section
