FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

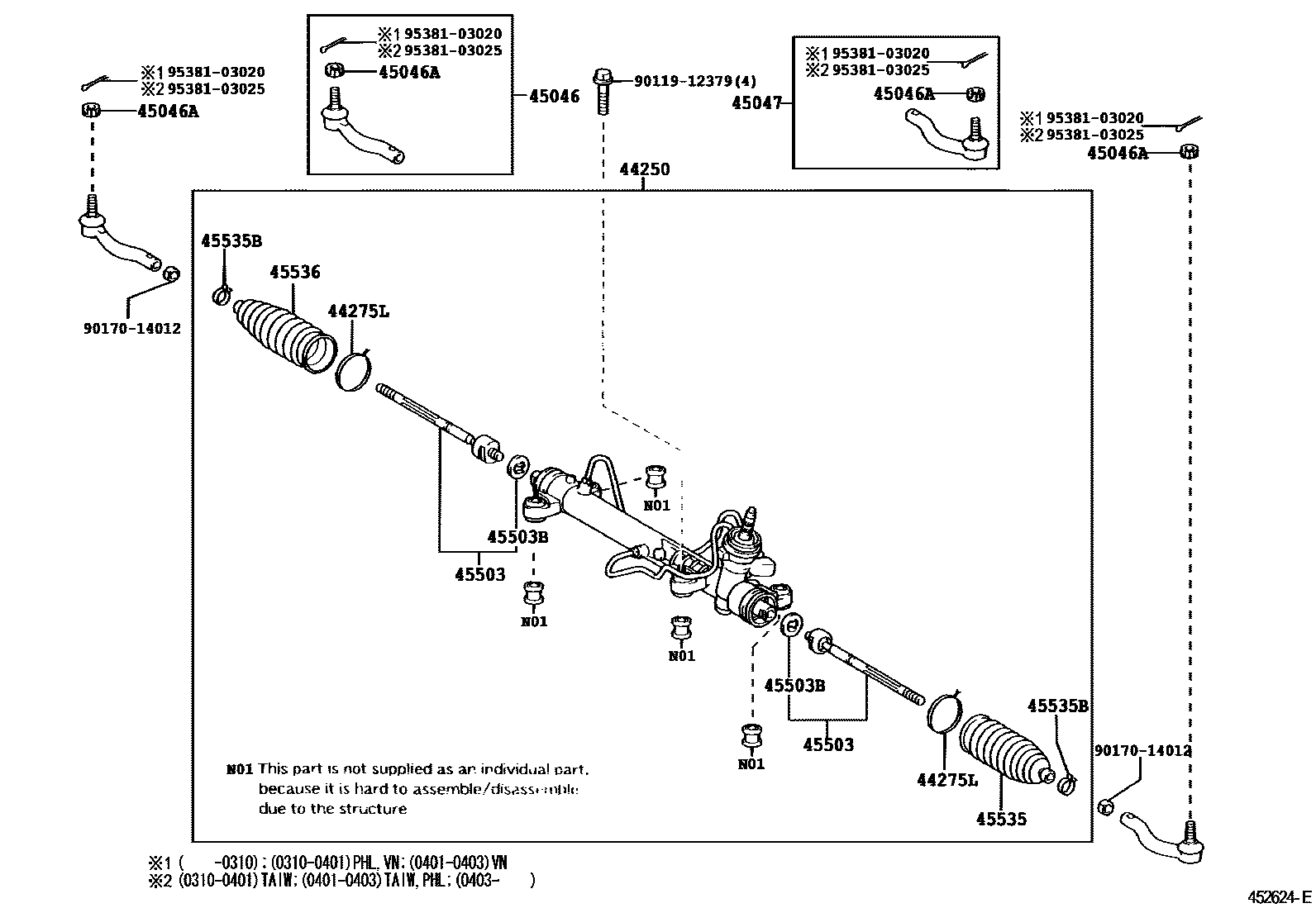

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-02040iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

main44250-02170iZZE122..IND,MA;ZZE121..ATM..MA200311

main44250-13020iZZE12#..RHD200105-200108

44275LWIRE, BOOT

main90580-14073×2iZZE12#..TAIW200310-200712

45046END SUB-ASSY, TIE ROD, RH

main45046-09160iZZE121..16E..TAIW200103-200211

main45046-49115iZZE12#..MA200105-200401

(J)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iZZE12#..IDN,TH200103-200311

45047END SUB-ASSY, TIE ROD, LH

main45047-09050iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200310-200802

main45047-49045iZZE12#..MA200105-200401

(J)

45503END SUB-ASSY, STEERING RACK

main45503-09220×2iZZE121..16E..TAIW200103-200211

main45503-19255×2iZZE12#..IDN,TH200105-200311

(J)

45503BWASHER, CLAW(FOR STEERING RACK END)

main90080-21019×2iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

OD=35.2

main90214-14009×2iZZE12#..IDN,TH200105-200311

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-02030iZZE12#..IDN,TH200311-200801

WIRE TYPE CLAMP

main45535-02040iNZE120,ZZE12#..LHD200105-200403

(L)

main45535-13010iZZE12#..IDN,TH200311-200801

BAND TYPE CLAMP

main45535-32070iZZE12#..TAIW200310-200712

(J)

main45535-52050×2iZZE12#..RHD200105-200109

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iZZE12#..IDN,TH200310-200801

REFER TO ILLUSTRATION

45536BOOT, STEERING RACK, NO.2

main45535-02030iZZE12#..IDN,TH200311-200801

WIRE TYPE CLAMP

main45535-02040iNZE120,ZZE12#..LHD200105-200403

(L)

main45535-13010iZZE122..IND,MA;ZZE121..ATM..MA200311

BAND TYPE CLAMP

main45535-32070iNZE120,ZZE12#..LHD200105-200403

(J)

main45535-52050×2iZZE12#..RHD200105-200109

9011912379

main90119-12379

9017014012

main90170-14012

9538103020

main95381-03020

9538103025

main95381-03025

14 parts on this diagram · 4 diagrams in section
