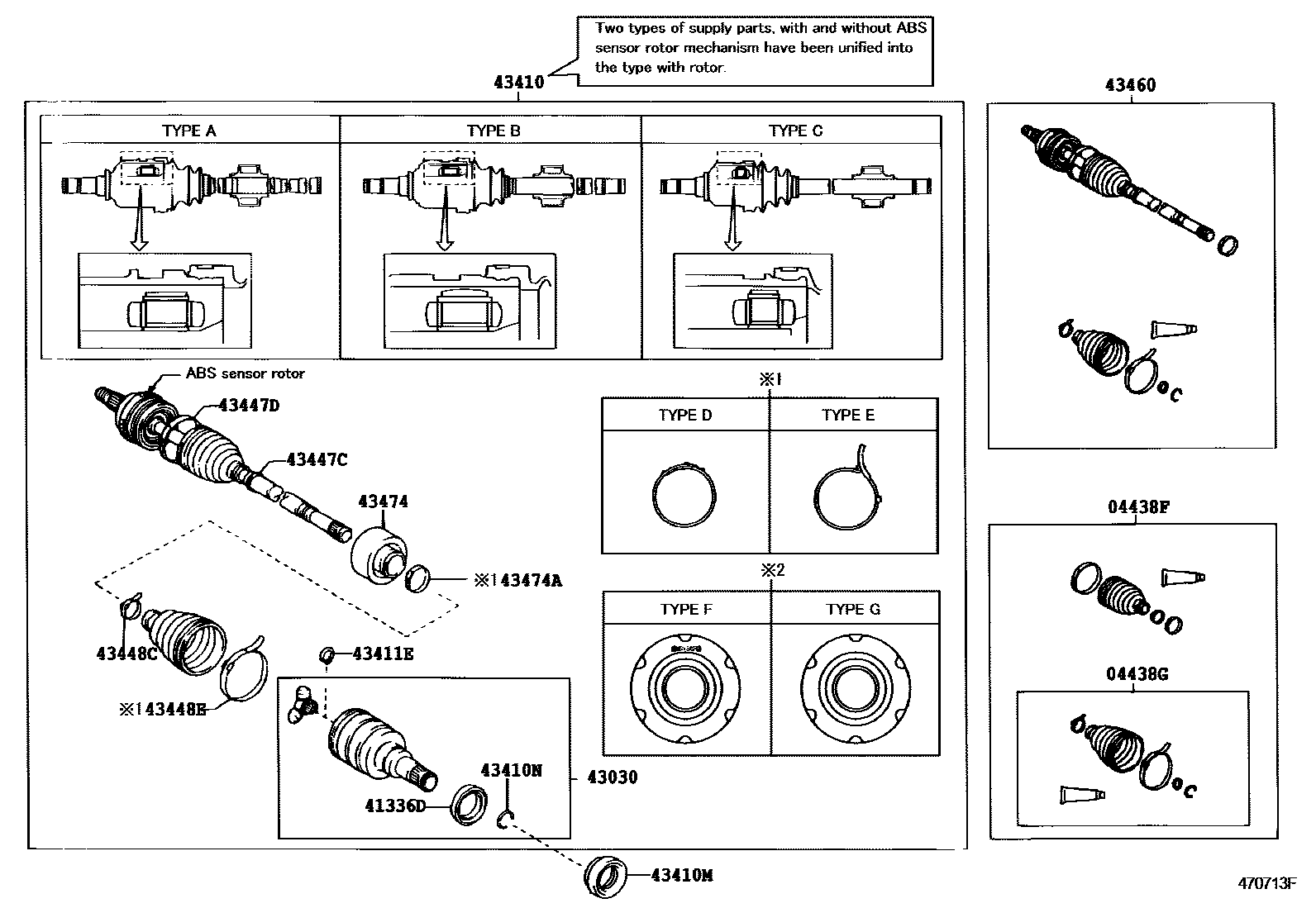

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
PNC 43410=TYPE A
PNC 43410=TYPE A
TYPE A:REFER ILLUST.
PNC 43410=TYPE A
PNC 43410=TYPE B
PNC 43410=TYPE B
PNC 43410=TYPE A
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
PNC 43410=TYPE A
TYPE A:REFER ILLUST.
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
(L); PNC 43410=TYPE A
(J); PNC 43410=TYPE B
(L)
TYPE C:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE B:REFER TO ILLUSTRATION,(L)
TYPE A:REFER ILLUST.; TYPE B:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(L)
TYPE A:REFER TO ILLUSTRATION
(J)
TYPE B:REFER TO ILLUSTRATION & W(ABS),(J)
TYPE B:REFER TO ILLUSTRATION,(J)
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
TYPE C:REFER TO ILLUSTRATION
TYPE A OR TYPE B:REFER TO ILLUSTRATION
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
PNC 43410=TYPE A
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
W(ABS)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE D:REFER TO ILLUSTRATION
TYPE E:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
(L)
W/O(ABS),(L)
PNC 43410=TYPE A
(J)
PNC 43410=TYPE B
main43460-80001iZZE121..ATM..16E..TH;ZZE122..18G..(IDN,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW)200104-200403
(J),PNC 43410=TYPE B
(J),PNC 43410=TYPE B
43474DAMPER, DRIVE SHAFT
PNC 43410=TYPE A
TYPE A OR TYPE B:REFER TO ILLUSTRATION
PNC 43410=TYPE B; TYPE G:REFER ILLUST.
PNC 43410=TYPE A; TYPE F:REFER ILLUST.
TYPE D:REFER TO ILLUSTRATION
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
ID=35.75; TYPE D:REFER ILLUST.
ID=35.45; TYPE E:REFER ILLUST.
15 parts on this diagram · 5 diagrams in section
