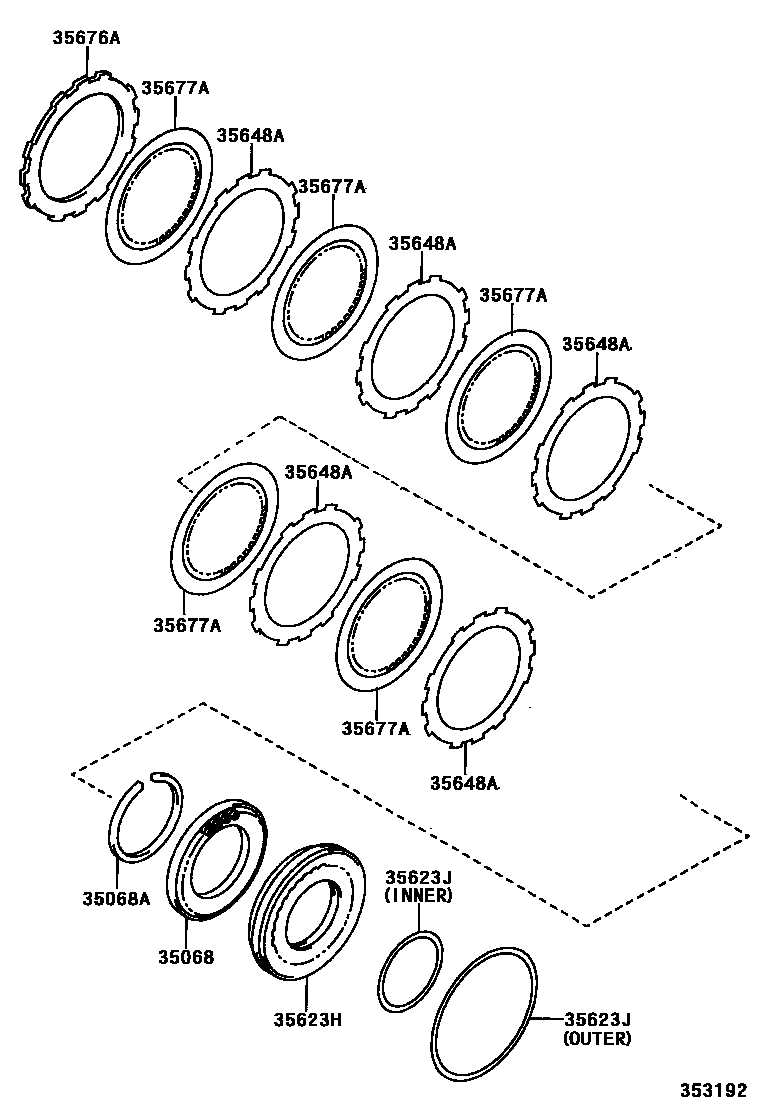

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A245E 0003 1U341E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iZZE121..TAIW200310-200712

main35068-52030iZZE122..ATM..(IND,MA,PHL,TAIW,TH)200103-200508

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iZZE121..16J..TAIW200103-200310

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iZZE122..ATM..IDN200107-200311

main35623-20020iZZE121..ATM..TH200310-200801

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iZZE121..ATM..TH200310-200801

OUTER

main90301-99131iZZE121..16E..TAIW200103-200211

INNER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020×5iZZE121..ATM..TH200103-200311

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iZZE121..ATM..(MA,PHL)200103-200401

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12080×5iZZE121..16E..TAIW200103-200211

7 parts on this diagram · 2 diagrams in section
