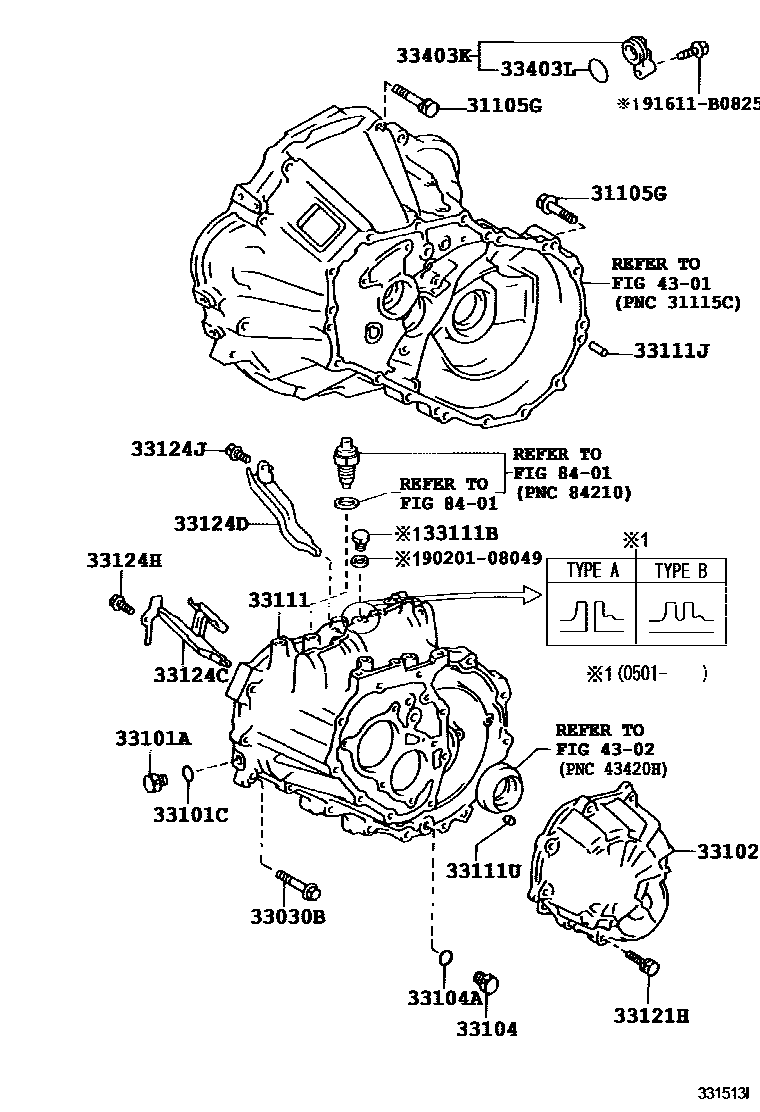

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52 0002 1C150

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61050×7iNZE120200107-200403

*10-1.25PX50-30

main91619-61255×2iZZE12#..MTM..(IDN,TH)200311-200801

*12-1.25PX55-30

main91642-81055×2iZZE122..MTM..(IND,VN)200311

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×3iZZE12#..MTM..(IDN,TH)200105-200311

*8-1.25PX45-27.5

main90105-08353×13iZZE122..MTM..(IND,VN)200311

*8-1.25PX50-30

main90105-08430×3iZZE121..MTM..PHL200407-200802

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNZE120,ZZE12#..MTM200105-200508

main90341-18033iZZE12#..MTM..(IDN,TH)200506-200801

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNZE120,ZZE12#..MTM200105-200508

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iNZE120200107-200403

main33102-12021iZZE12#..MTM200105-200508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNZE120,ZZE12#..MTM200105-200508

main90341-18033iZZE12#..MTM..(IDN,TH)200506-200801

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNZE120,ZZE12#..MTM200105-200508

33111CASE, MANUAL TRANSMISSION

main33111-12280iZZE122..MTM..(IND,VN)200706

main33111-16053×2iNZE120200401-200403

main33111-16063iZZE121..MTM..(PHL,TH)200311-200501

main33111-16064iZZE121..MTM200501-200706

TYPE A:REFER ILLUST.

main33111-17100iZZE122..MTM200107-200301

main33111-17101iZZE122..MTM200301-200501

main33111-17102iZZE122..MTM..IND200501-200508

main33111-52110iZZE121..MTM200501-200706

TYPE B:REFER ILLUST.

main33111-52140iZZE121..MTM..TH200706-200801

33111BBOLT, STUD OR BOLT(FOR TRANSMISSION CASE)

main90101-08166iZZE122..MTM..IND200501-200508

*8-1.25PX14-12

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iZZE122..MTM..(IND,VN)200311

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iZZE12#..MTM..(IDN,TH)200105-200311

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373×9iNZE120200107-200403

main90119-08782×9iZZE12#..MTM..(IDN,TH)200603-200801

main91611-60835×9iZZE12#..MTM200105-200508

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iNZE120200107-200403

main33124-20050iZZE12#..MTM..(IDN,TH)200311-200801

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNZE120200107-200403

main33124-12021iZZE12#..MTM200105-200508

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNZE120,ZZE12#..MTM200105-200508

33124JBOLT, W/WASHER

main91611-G0820iNZE120,ZZE12#..MTM200105-200508

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iZZE121..MTM..(16E,16J)..TH200105-200211

33403LRING, O

main96711-24030iZZE121..MTM..(16E,16J)..TH200105-200211

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9020108049

main90201-08049

91611B0825

main91611-B0825

23 parts on this diagram · 2 diagrams in section
