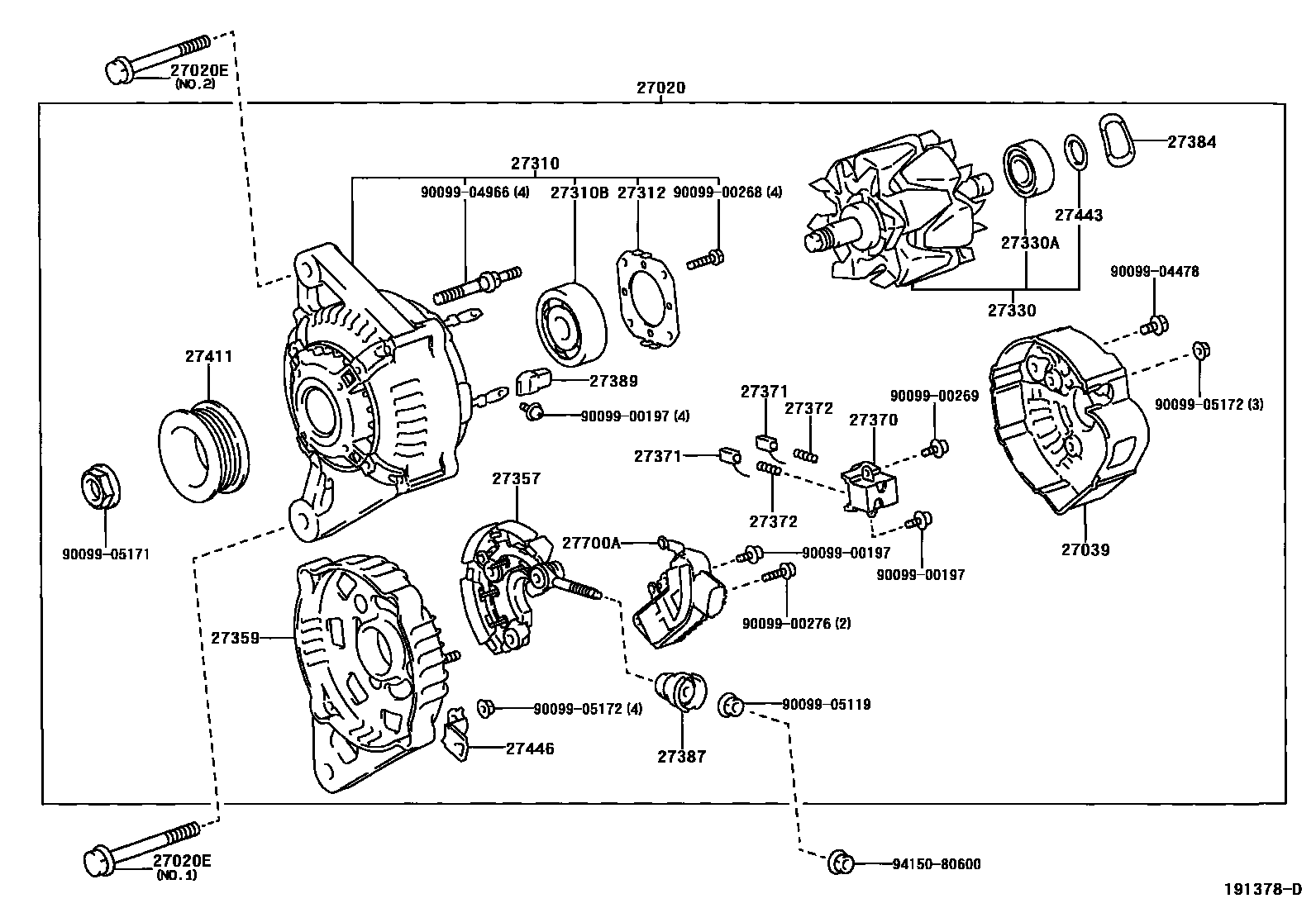

ALTERNATOR

0001 112V 70A 0003 112V 80A 0005 112V 70A 0006 112V 70A 0008 112V 80A

27020ALTERNATOR ASSY

main27060-0D040i3ZZFE..ZZE121..MTM..TH200105-200406

12V 70A

sub27060-0D041

main27060-0D041i1ZZFE,3ZZFE..ZZE12#..MTM..(IDN,TH)200407-200801

12V 70A

main27060-0D050i1ZZFE,3ZZFE..ZZE12#..ATM..TH200105-200406

12V 80A

sub27060-0D051

main27060-0D051i1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,TH)200407-200801

12V 80A

main27060-0D060i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200406

12V 80A

sub27060-0D061

main27060-0D061i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

12V 80A

main27060-0D070i1ZZFE..ZZE122..MTM..IDN200107-200311

12V 70A

main27060-0D080i1ZZFE..ZZE122..ATM..IDN200107-200311

12V 80A

main27060-0D090i3ZZFE..ZZE121..MTM..MA200107-200401

12V 70A

main27060-0D100i1ZZFE,3ZZFE..ZZE12#..ATM..MA200107-200605

12V 80A

sub27060-0D101

main27060-0D101i1ZZFE,3ZZFE..ZZE12#..MA200606-200801

12V 80A

main27060-0D150i1ZZFE..ZZE122..MTM..IND200301-200508

12V 70A

main27060-21050i1NZFE..NZE120200107-200403

12V 70A

main27060-22030i1ZZFE..ZZE122..18G..IND200401-200712

12V 80A

main27060-22140i3ZZFE..ZZE121..MTM..PHL200401-200712

12V 70A

main27060-22170i1ZZFE,3ZZFE..ZZE12#..LHD..MTM200107-200403

12V 70A

sub27060-22140

main27060-22180i1ZZFE,3ZZFE..ZZE12#..ATM..(IND,PHL)200107-200508

12V 80A

sub27060-22030

27020EBOLT(FOR ALTERNATOR)

main90105-10038i1NZFE..NZE120200107-200403

main90105-10075i3ZZFE..ZZE121..16E..TAIW200103-200802

NO.1

main91511-80830i1ZZFE,3ZZFE..ZZE12#..IDN,TH200103-200802

NO.2

27039COVER, ALTERNATOR REAR END

main27039-0D140i1ZZFE..ZZE122..MTM..IND200301-200508

main27039-20020i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200407

sub27039-28090

main27039-28090i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

main27039-67271i3ZZFE..ZZE121..MTM..TH200105-200311

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0D030i3ZZFE..ZZE121..MTM..TH200105-200311

main27310-0D050i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200407

main27310-0D051i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

sub27310-22180

main27310-22080i1ZZFE..ZZE122..MTM..IND200301-200508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10005i3ZZFE..ZZE121..MTM..TH200105-200311

sub90099-10178

main90068-10015i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200407

main90068-10015i1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH)200103-200311

(L)

main90068-10029i1ZZFE..ZZE122..MTM..IND200612

main90099-10199i1ZZFE..ZZE122..MTM..IND200301-200611

main90099-10219i1ZZFE,3ZZFE..ZZE12#..ATM..(TAIW,TH)200103-200311

(J)

main90099-10226i1ZZFE,3ZZFE..ZZE12#..TAIW200407-200712

27312PLATE, RETAINER

main27312-42010i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

main27312-70200i3ZZFE..ZZE121..MTM..TH200105-200311

main27312-72100i1ZZFE..ZZE122..MTM..IND200301-200612

27330ROTOR ASSY, ALTERNATOR

main27330-02090i3ZZFE..ZZE121..MTM..TH200105-200801

main27330-0D010i1ZZFE,3ZZFE..ZZE12#..ATM..(IDN,MA,TH)200107-200801

main27330-16390i1ZZFE,3ZZFE..ZZE12#..ATM..PHL200107-200712

main27330-67100i1ZZFE..ZZE122..MTM..(IND,VN)200107-200712

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i3ZZFE..ZZE121..MTM..TH200105-200311

(L),NO.1

main90068-10013i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

main90068-10013i1ZZFE,3ZZFE..ZZE12#..ATM..TH200105-200311

NO.1

main90099-10140i3ZZFE..ZZE121..MTM..TH200105-200311

(J),NO.1

main90099-10216i1ZZFE..ZZE122..MTM..IND200301-200508

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0D140i1ZZFE..ZZE122..MTM..IND200301-200508

main27357-21060i1ZZFE..ZZE122..VN200107-200712

main27357-22050i1ZZFE,3ZZFE..ZZE12#..ATM..MA200107-200801

main27357-22180i3ZZFE..ZZE121..MTM..TH200105-200801

27359FRAME, ALTERNATOR RECTIFIER END

main27359-0D010i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200712

main27359-0D030i3ZZFE..ZZE121..MTM..TH200105-200311

main27359-22080i1ZZFE..ZZE122..MTM..IND200301-200508

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i3ZZFE..ZZE121..MTM..PHL200105-200801

main27370-75060i1ZZFE..ZZE122..18G..IND200107-200801

27371BRUSH, ALTERNATOR

main27371-70300i3ZZFE..ZZE121..MTM..TH200105-200508

27372SPRING, ALTERNATOR BRUSH

main27372-87501i3ZZFE..ZZE121..MTM..TH200105-200508

27384WASHER

main27384-16380i1ZZFE,3ZZFE..ZZE12#..MTM..(IND,TH)200105-200508

main27384-50030i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200712

27387INSULATOR, TERMINAL

main27387-42021i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200712

main27387-70171i3ZZFE..ZZE121..MTM..TH200105-200508

27389INSULATOR, TERMINAL

main27389-0D140i1ZZFE..ZZE122..MTM..IND200301-200612

main27389-42010i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200712

main27389-63020i3ZZFE..ZZE121..MTM..TH200105-200311

27411PULLEY, ALTERNATOR

main27411-0D140i1ZZFE..ZZE122..MTM..IND200301-200508

main27411-22080i3ZZFE..ZZE121..MTM..PHL200105-200801

main27411-50050i1ZZFE..ZZE122..18G..IND200107-200801

main27411-65010i1NZFE..NZE120200107-200403

27443COVER, ALTERNATOR BEARING

main27443-63020i3ZZFE..ZZE121..MTM..TH200103-200712

27446CLIP, ALTERNATOR CORD

main27446-22040i1ZZFE,3ZZFE..ZZE12#..MTM..(IND,TH)200105-200712

27700AREGULATOR ASSY, GENERATOR

main27700-20050i1ZZFE,3ZZFE..ZZE12#..MA200103-200801

main27700-21020i1NZFE..NZE120200107-200403

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9415080600

main94150-80600

30 parts on this diagram · 5 diagrams in section
