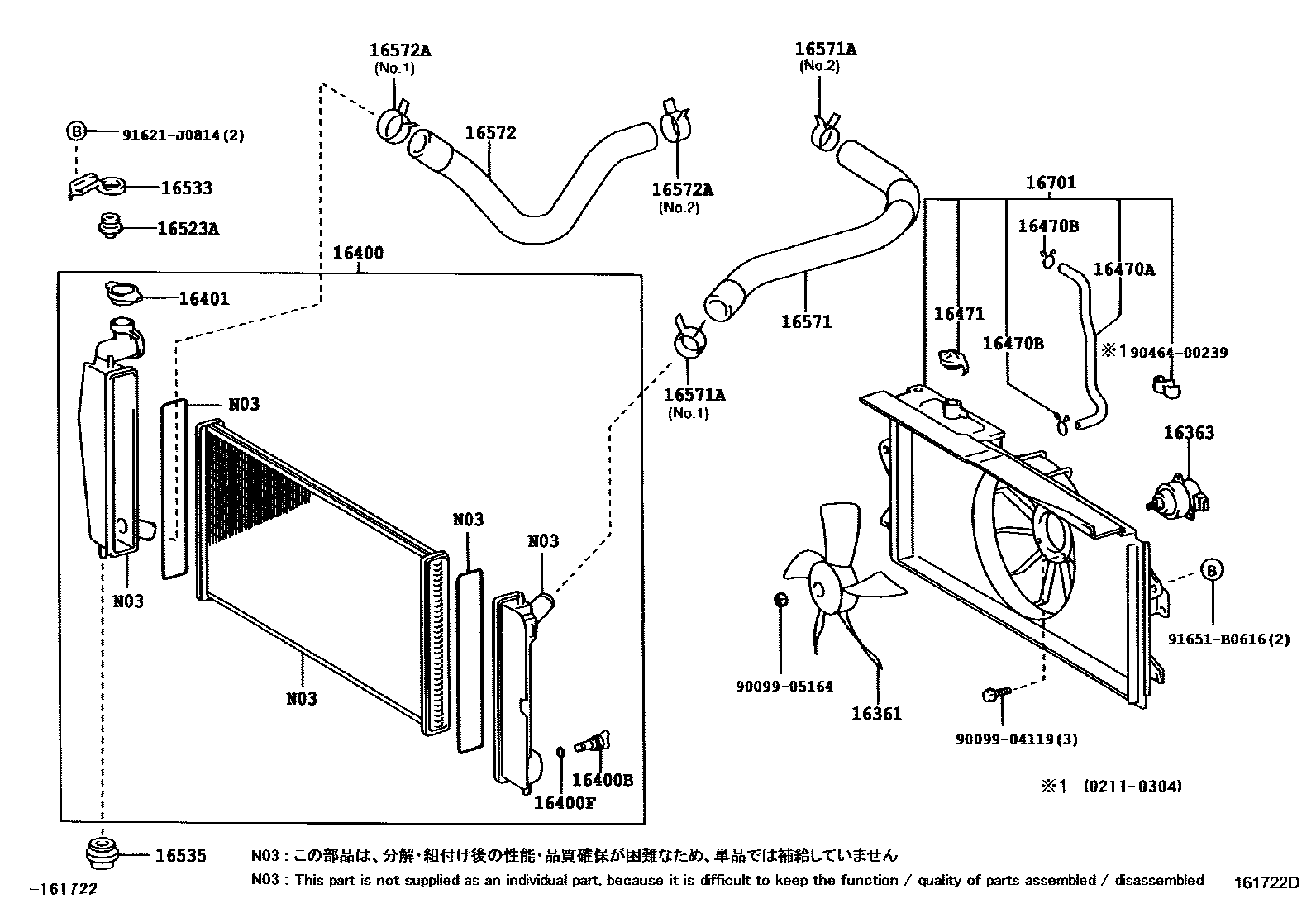

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16361FAN

main16361-0D060i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH200105-200802

main16361-0D070i1ZZFE..ZZE122..IND200301-200508

main16361-0D070i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

(L)

main16361-21060i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200307

(J)

main16361-21060i1ZZFE..ZZE122..VN200107-200403

16363MOTOR, COOLING FAN

main16363-0D080i1ZZFE..ZZE122..IND200301-200410

sub16363-28200

main16363-0M010i3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..(MA,PHL)200305-200802

main16363-23020i1NZFE..NZE120200103-200305

main16363-28150i1NZFE..NZE120200305-200403

main16363-28200i1ZZFE..ZZE122..IND200411-200508

16400RADIATOR ASSY

main16400-0D150i3ZZFE..ZZE121..MTM..MA200107-200310

main16400-0D160i1ZZFE,3ZZFE..ZZE12#..ATM..MA200107-200801

main16400-0D170i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

main16400-0D180i3ZZFE..ZZE121..MTM..PHL200107-200802

main16400-0D190i1ZZFE,3ZZFE..ZZE12#..ATM..PHL200107-200802

main16400-0D360i1ZZFE..ZZE122..MTM..IND200301-200508

main16400-0D370i1ZZFE..ZZE122..18G..IND200301-200508

main16400-21130i1NZFE..NZE120200107-200403

main16400-21140i1ZZFE..ZZE122..VN200107-200403

sub16400-21130

main16400-21180i1ZZFE..ZZE122..ATM..IDN200107-200402

main16410-0D110i3ZZFE..ZZE121..MTM..TH200105-200801

main16410-0D120i1ZZFE,3ZZFE..ZZE12#..ATM..TH200105-200801

16400BPLUG, RADIATOR DRAIN COCK

main23322-0D130i1ZZFE,3ZZFE..ZZE12#..MA200107-200801

main23322-54010i1ZZFE..ZZE122..IND,VN200103-200802

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NZE120200103-200802

16401CAP SUB-ASSY, RADIATOR

main16401-05040i1ZZFE,3ZZFE..ZZE12#..TH200105-200801

main16401-20353i1ZZFE..ZZE122..IND,VN200807

sub16401-36030

main16401-72090i1ZZFE..ZZE122..IDN200107-200806

sub16401-20353

main16401-7A020i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

sub16401-20353

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0D060i1ZZFE,3ZZFE..ZZE12#..IDN,TH200307-200802

main16377-0D070i1ZZFE..ZZE122..IND200103-200712

main16377-21040i1NZFE..NZE120200105-200403

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200802

16471CAP SUB-ASSY, RESERVE TANK

main16405-21030i1ZZFE..ZZE122..IND200307-200508

W(FILTER)

main16405-21030i1ZZFE,3ZZFE..ZZE12#..TAIW200211-200802

main16471-21010i1ZZFE..ZZE122..IND200404-200508

main16471-23010i1NZFE..NZE120200105-200307

16523ACUSHION, RADIATOR SUPPORT

main16523-0D010i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200802

16533SUPPORT, RADIATOR, UPPER

main16533-0D020i1ZZFE,3ZZFE..ZZE12#200103-200802

16535SUPPORT, RADIATOR, LOWER

main16504-0D010i1ZZFE,3ZZFE..ZZE12#..ATM200103-200108

sub16535-0D050

main16535-0D050i1ZZFE,3ZZFE..ZZE12#..ATM200108-200802

main90480-40016i1ZZFE..ZZE122..MTM..(IND,VN)200105-200802

16571HOSE, RADIATOR, INLET

main16571-0D080i1NZFE..NZE120200107-200403

main16571-0D090i3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..PHL200105-200802

main16571-0D100i1ZZFE,3ZZFE..ZZE12#..MA200107-200801

main16571-0D110i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1NZFE..NZE120200105-200802

NO.2

main90467-34004i1NZFE..NZE120200107-200403

NO.1

main90467-37005i1ZZFE,3ZZFE..ZZE12#..TAIW200310-200802

NO.1

16572HOSE, RADIATOR, OUTLET

main16572-0D070i1NZFE..NZE120200107-200403

main16572-0D080i1ZZFE..ZZE122..IND,VN200105-200802

main16572-0D090i1ZZFE,3ZZFE..ZZE12#..MA200107-200801

main16572-0D100i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200712

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1NZFE..NZE120200107-200802

NO.2

main90467-34004i1ZZFE,3ZZFE..ZZE12#..TAIW200105-200802

NO.1

16701SHROUD SUB-ASSY, FAN

main16711-0D040i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TH200105-200307

sub16711-0D041

main16711-0D041i1ZZFE,3ZZFE..ZZE12#..IDN,TH200307-200802

main16711-0D050i1ZZFE..ZZE122..IND200301-200307

sub16711-0D051

main16711-0D050i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200307

(L)

sub16711-0D051

main16711-0D051i1ZZFE,3ZZFE..ZZE12#..TAIW200307-200712

(L)

main16711-0D051i1ZZFE..ZZE122..IND200307-200508

main16711-21050i1ZZFE,3ZZFE..ZZE12#..TAIW200103-200306

(J)

sub16711-21080

main16711-21080i1ZZFE..ZZE122..VN200107-200403

9009904119

main90099-04119

9009905164

main90099-05164

9046400239

main90464-00239

91621J0814

main91621-J0814

91651B0616

main91651-B0616

22 parts on this diagram · 7 diagrams in section
