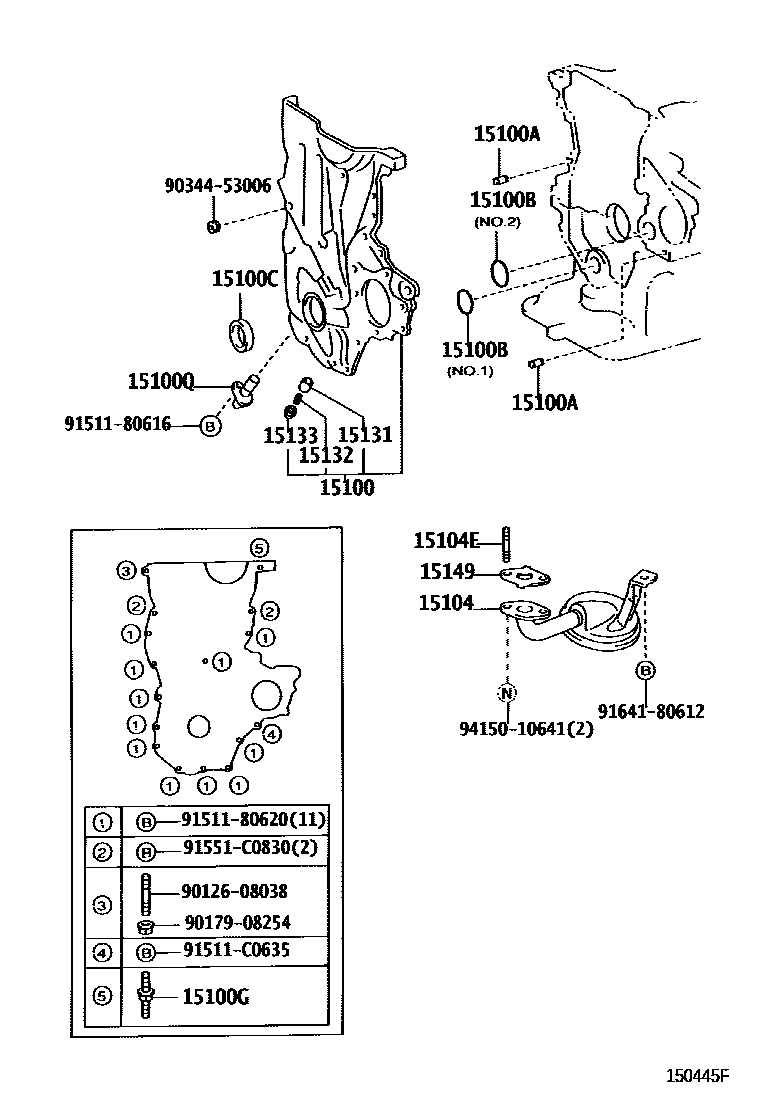

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-0D040i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH200103-200206

(L)

sub15100-0D041

main15100-0D041i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH200206-200808

(L)

main15100-21030i1NZFE..NZE120200107-200403

sub15100-21032

main15100-22040i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH200103-200206

(J)

sub15100-22041

main15100-22040i1ZZFE..ZZE122..VN200107-200206

sub15100-22041

main15100-22041i1ZZFE..ZZE122..IND,VN200206-200508

main15100-22041i1ZZFE,3ZZFE..ZZE12#..IDN,MA,PHL,TAIW,TH200206-200808

(J)

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NZE120200107-200403

main90253-09003i3ZZFE..ZZE121..ATM..MA;1ZZFE..ZZE122..IND,MA,VN200103-200802

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFE..NZE120200107-200403

NO.1

sub12151-21010

main90301-42006i1NZFE..NZE120200107-200403

NO.2

sub11497-21010

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NZE120200210-200403

sub90311-25032

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NZE120200107-200403

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NZE120200107-200403

sub90919-05081

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE..NZE120200107-200403

sub15104-21022

main15104-22022i1ZZFE,3ZZFE..ZZE12#200103-200204

sub15104-22023

main15104-22023i1ZZFE,3ZZFE..ZZE12#200204-200802

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE..NZE120200107-200403

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NZE120200107-200403

main15131-24010i1ZZFE,3ZZFE..ZZE12#200206-200802

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NZE120200107-200403

main15132-22040i1ZZFE,3ZZFE..ZZE12#200206-200802

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1ZZFE..ZZE122..MA,VN;3ZZFE..ZZE121..ATM..MA200206-200802

main15133-21020i1NZFE..NZE120200107-200403

15149GASKET, OIL STRAINER FLANGE

main15149-22010i1ZZFE,3ZZFE..ZZE12#..IDN,TH200103-200802

main16258-21010i1NZFE..NZE120200107-200302

sub16258-21030

main16258-21030i1NZFE..NZE120200302-200403

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180616

main91511-80616

9151180620

main91511-80620

91511C0635

main91511-C0635

91551C0830

main91551-C0830

9164180612

main91641-80612

9415010641

main94150-10641

21 parts on this diagram · 2 diagrams in section
