VENTILATION HOSE

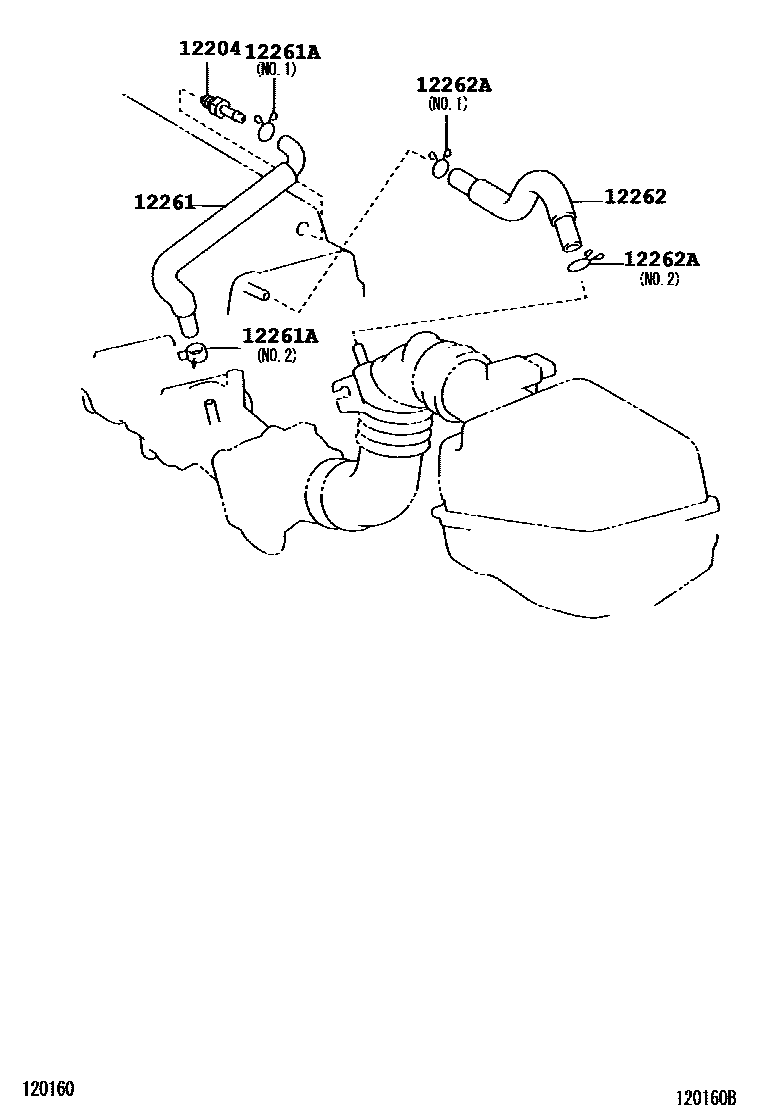

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-21010i200107-200401
sub12204-21011
main12204-21011i200401-200403
main12204-22050i200103-200411
sub12204-22051
main12204-22051i200405-200802
12261HOSE, VENTILATION
main12261-0D040i200103-200802
(L)
main12261-21050i200107-200403
main12261-22050i200103-200802
(J)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-13057i200107-200403
NO.1
main90467-17011i200107-200204
NO.2
sub96134-51700
main90467-21152i200103-200802
main96134-51700i200204-200403
NO.2
12262HOSE, VENTILATION, NO.2
main12262-0D050i200103-200802
(L)
main12262-0D060i200103-200802
(L)
main12262-21060i200107-200403
main12262-22040i200103-200802
(J)
main12262-22060i200103-200802
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90466-18002i200403-200508
NO.2
main90467-13103i200103-200802
NO.1
main90467-19003i200103-200802
NO.2
main90467-21004i200107-200403
NO.1,NO.2

5 parts on this diagram · 2 diagrams in section
