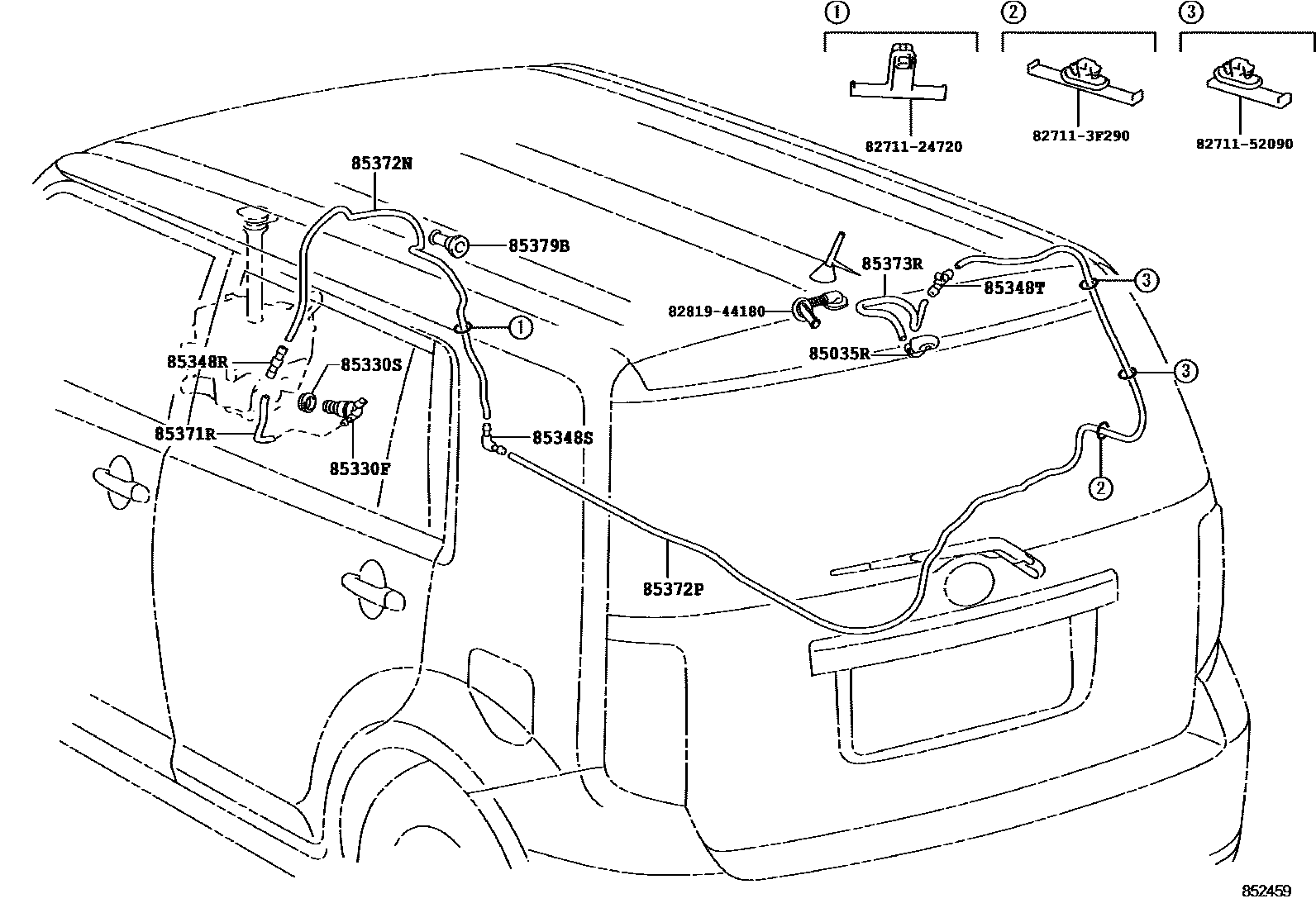

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-12090iAZE151201003

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iAZE151201003-201512

85330SBUSH, REAR WASHER JAR

main85336-60300iAZE151201003-201512

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iAZE151201003

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iAZE151201003

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iAZE151201003

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZE151201003-201512

L=1450(*H,L=100)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iAZE151201003

L=1800(*H,L=1410)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iAZE151201003

L=3675

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAZE151201003

L=1450(*H,L=325)

85379BGROMMET, WASHER, A

main85379-12850iAZE151201003

8271124720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24720

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8281944180GROMMET, WIRING HARNESS

main82819-44180

15 parts on this diagram · 1 diagram in section
