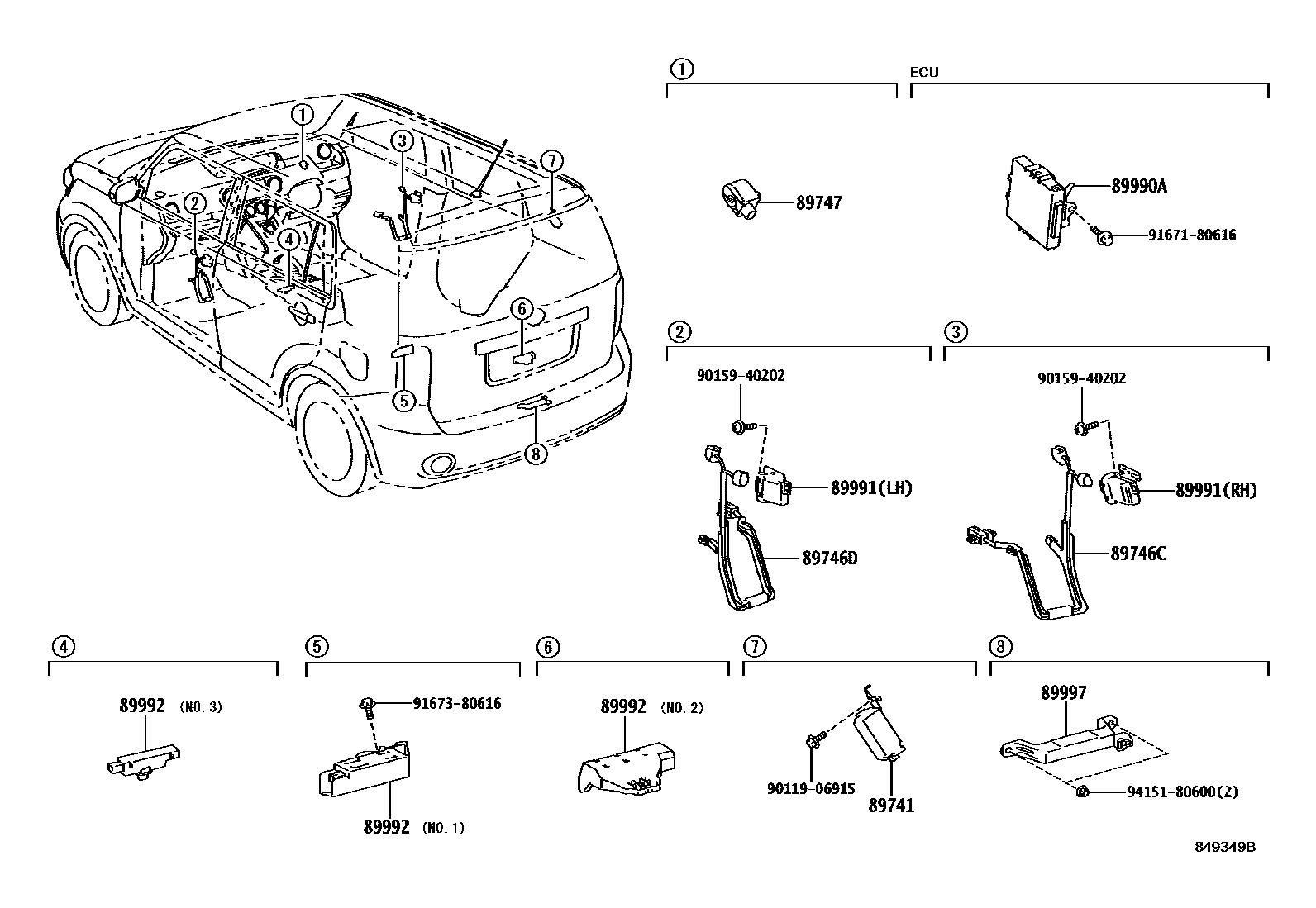

WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
89991OSCILLATOR, DOOR ELECTRICAL KEY
RH
LH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
NO.1
NO.2
NO.3
89997ANTENNA, ELECTRICAL KEY
9011906915
main90119-06915
9015940202
main90159-40202
9167180616
main91671-80616
9167380616
main91673-80616
9415180600
main94151-80600
13 parts on this diagram · 1 diagram in section
