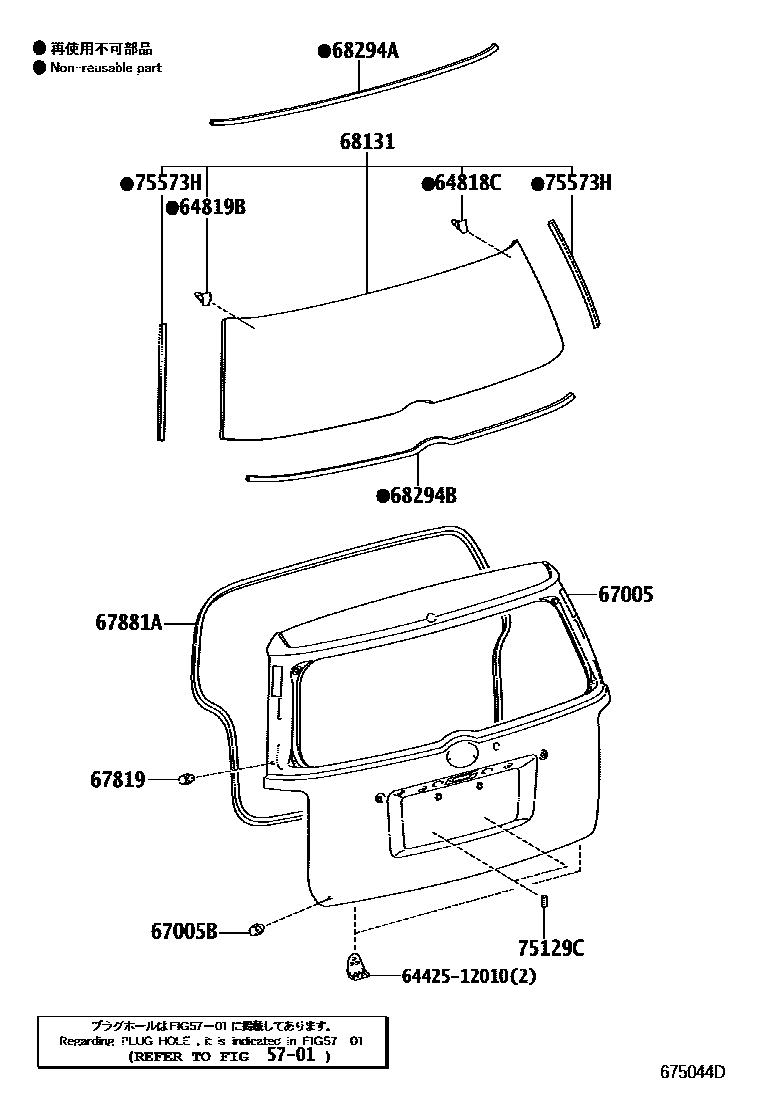

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-12060iAZE151201003

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-12040iAZE151201003

67005PANEL SUB-ASSY, BACK DOOR

main67005-12B90iAZE151201003-201512

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iAZE151201003

67819PAD, BACK DOOR OUTSIDE PANEL

main67819-12010iAZE151201003

67881AWEATHERSTRIP, BACK DOOR

main67881-12300iAZE151201003

68131GLASS, BACK DOOR

main68105-12380iAZE151201003

*EHT,T=3.1,D.GRAY

68294ADAM, BACK DOOR GLASS ADHESIVE

main64813-12200iAZE151201003

sub56117-50140

68294BDAM, BACK DOOR GLASS ADHESIVE

main64814-12010iAZE151201003

sub56117-50140

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iAZE151201003-201212

main75129-30010iAZE151201301

75573HMOULDING, BACK WINDOW, OUTSIDE

main75573-12370iAZE151201003

6442512010PLUG, LUGGAGE COMPARTMENT DOOR, RH

main64425-12010

13 parts on this diagram · 2 diagrams in section
