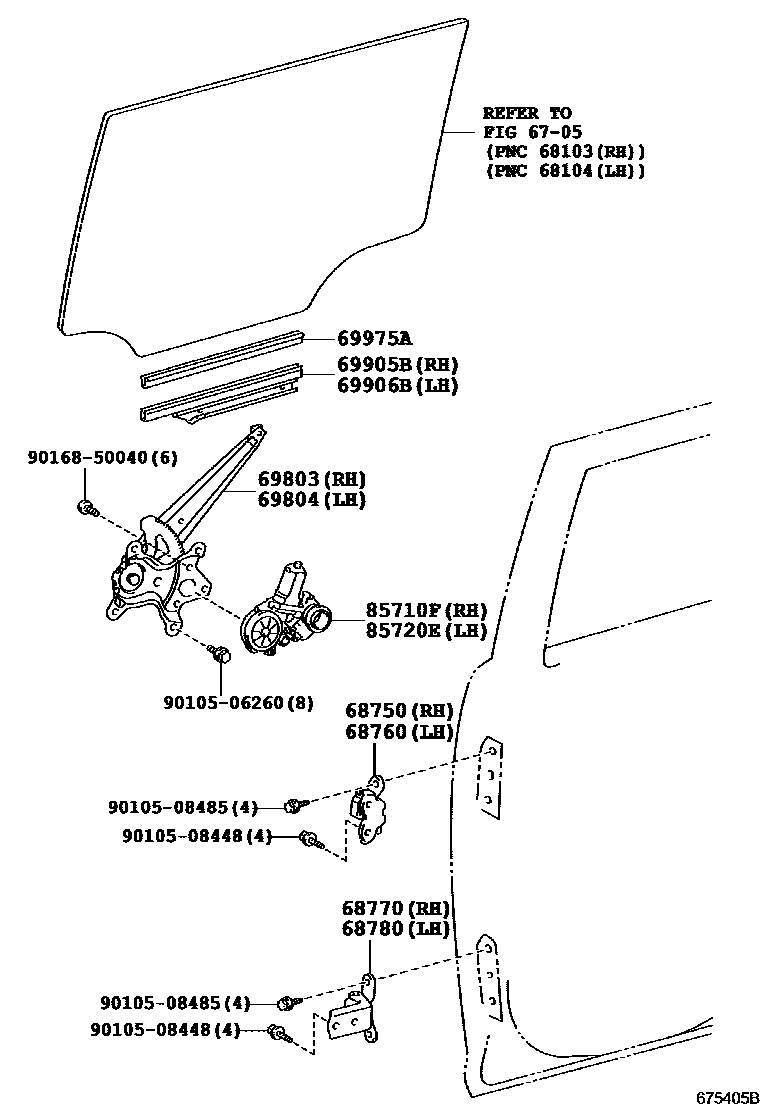

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iAZE151201003-201205

main68750-20122iAZE151201206

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iAZE151201003-201205

main68760-20122iAZE151201206

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iAZE151201003

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iAZE151201003

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12180iAZE151201003

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12180iAZE151201003

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iAZE151201003-201512

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iAZE151201003-201512

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iAZE151201003-201512

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-12430iAZE151201003

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-12430iAZE151201003

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
