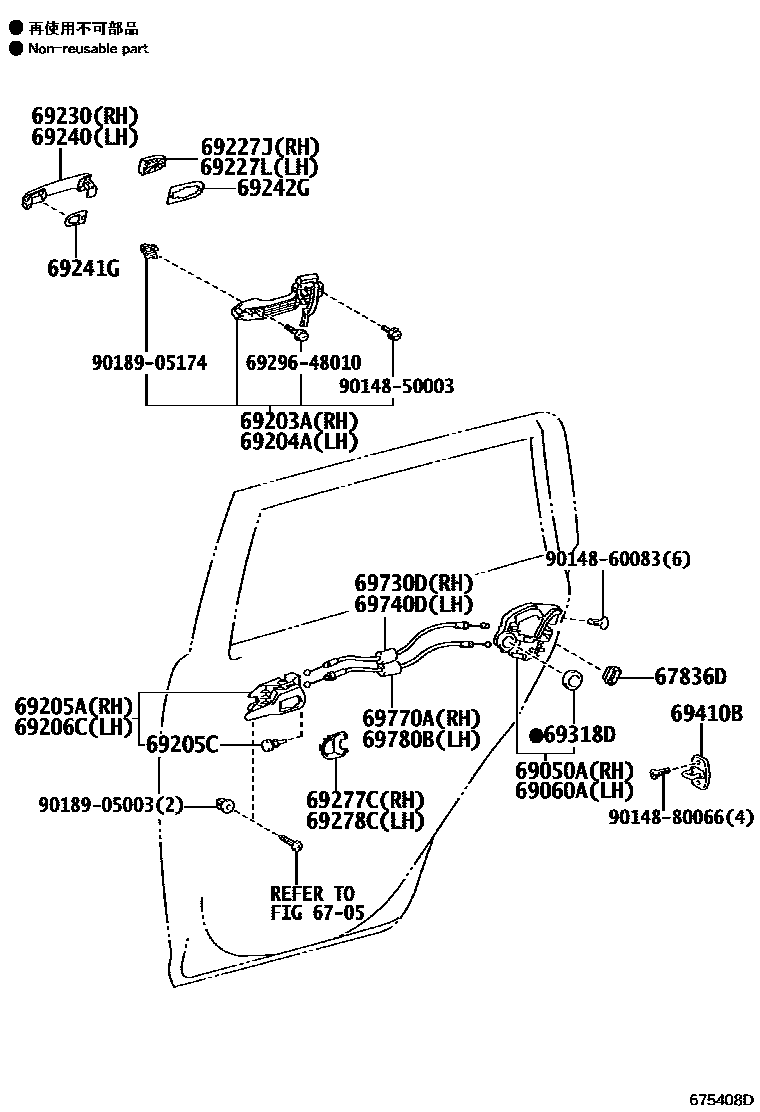

REAR DOOR LOCK & HANDLE
6705REAR DOOR PANEL & GLASS
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
ORNAMENT SILVER,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
ORNAMENT SILVER,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
BLACK MC.,209
DK.VIOLET M.M.,9AF
ARMY ROCK ME.,4V0
SILVER ME.,1F7
BLUE ME.,8T4
DK.BLUE MC.,8S6
COOL SODA ME.,8V7
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
BLACK MC.,209
DK.VIOLET M.M.,9AF
ARMY ROCK ME.,4V0
SILVER ME.,1F7
BLUE ME.,8T4
DK.BLUE MC.,8S6
COOL SODA ME.,8V7
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
BLACK MC.,209
DK.VIOLET M.M.,9AF
ARMY ROCK ME.,4V0
SILVER ME.,1F7
BLUE ME.,8T4
DK.BLUE MC.,8S6
COOL SODA ME.,8V7
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
BLACK MC.,209
DK.VIOLET M.M.,9AF
ARMY ROCK ME.,4V0
SILVER ME.,1F7
BLUE ME.,8T4
DK.BLUE MC.,8S6
COOL SODA ME.,8V7
SUPER RED 5,3P0
BLACKISH RED MC.,3R0
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9018905174
main90189-05174
29 parts on this diagram · 1 diagram in section
