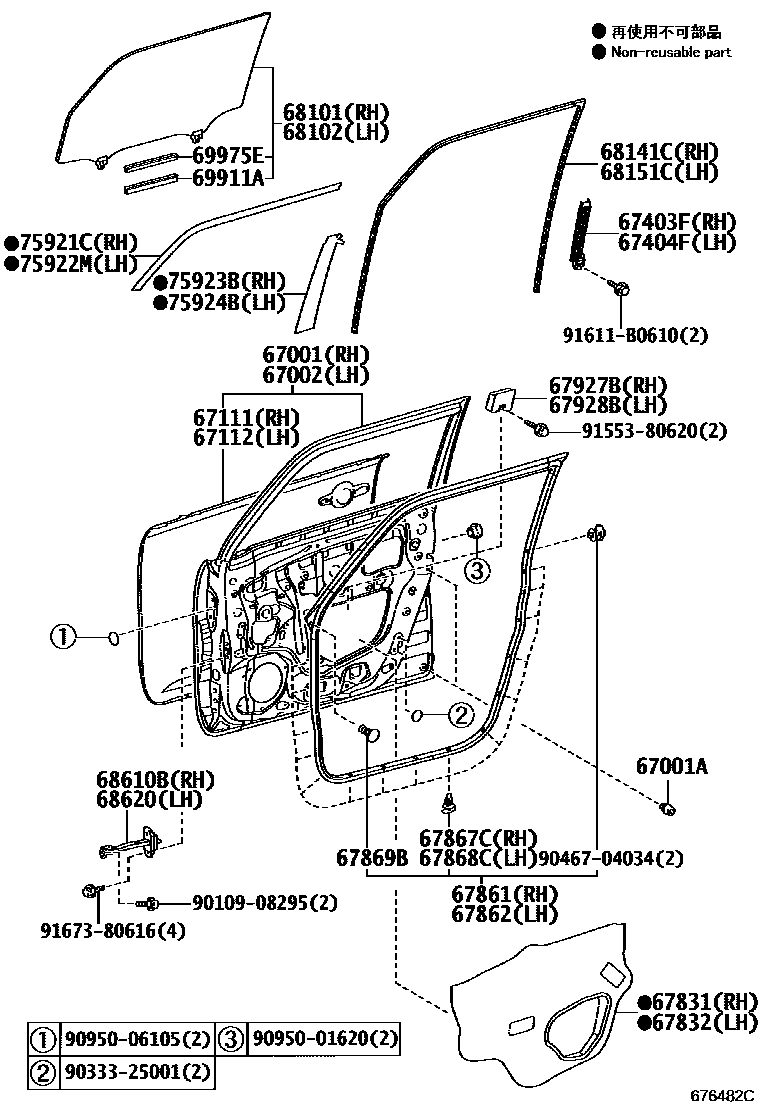

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1
67928BCUSHION, SEPARATION DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
69911ACHANNEL, FRONT DOOR GLASS, NO.1
69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75923BTAPE, BLACK OUT, NO.2 RH
75924BTAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9033325001
main90333-25001
9046704034
main90467-04034
9095001620
main90950-01620
9095006105
main90950-06105
9155380620
main91553-80620
91611B0610
main91611-B0610
9167380616
main91673-80616
36 parts on this diagram · 2 diagrams in section
