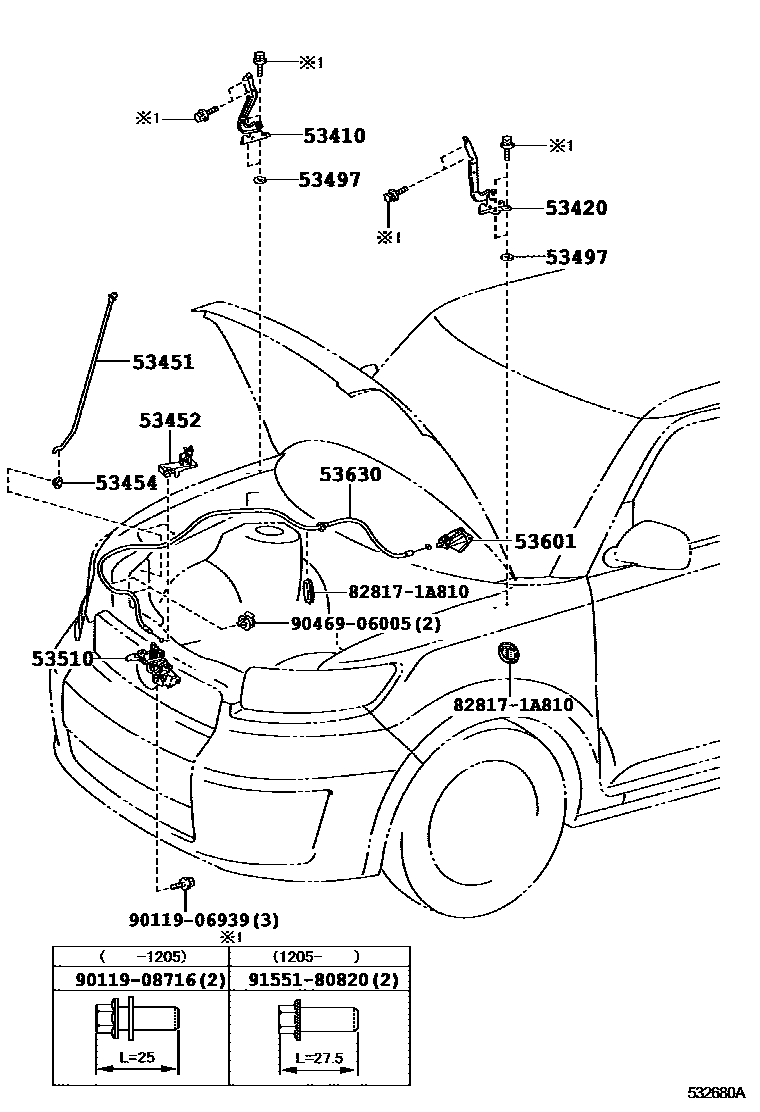

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12580iAZE151201003

53420HINGE ASSY, HOOD, LH

main53420-12570iAZE151201003

53451ROD, HOOD SUPPORT

main53440-12120iAZE151201003-201411

main53440-12121iAZE151201412

53452HOLDER, HOOD STAY

main53452-12100iAZE151201003

53454CLIP, HOOD SUPPORT ROD

main53454-12020iAZE151201003

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iAZE151201003

T=2.0

main53497-42010×4iAZE151201003

T=0.5

53510LOCK ASSY, HOOD

main53510-12A50iAZE151201003

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iAZE151201003-201512

DK.GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12630iAZE151201003

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906939

main90119-06939

9011908716

main90119-08716

9046906005

main90469-06005

9155180820

main91551-80820

14 parts on this diagram · 1 diagram in section
