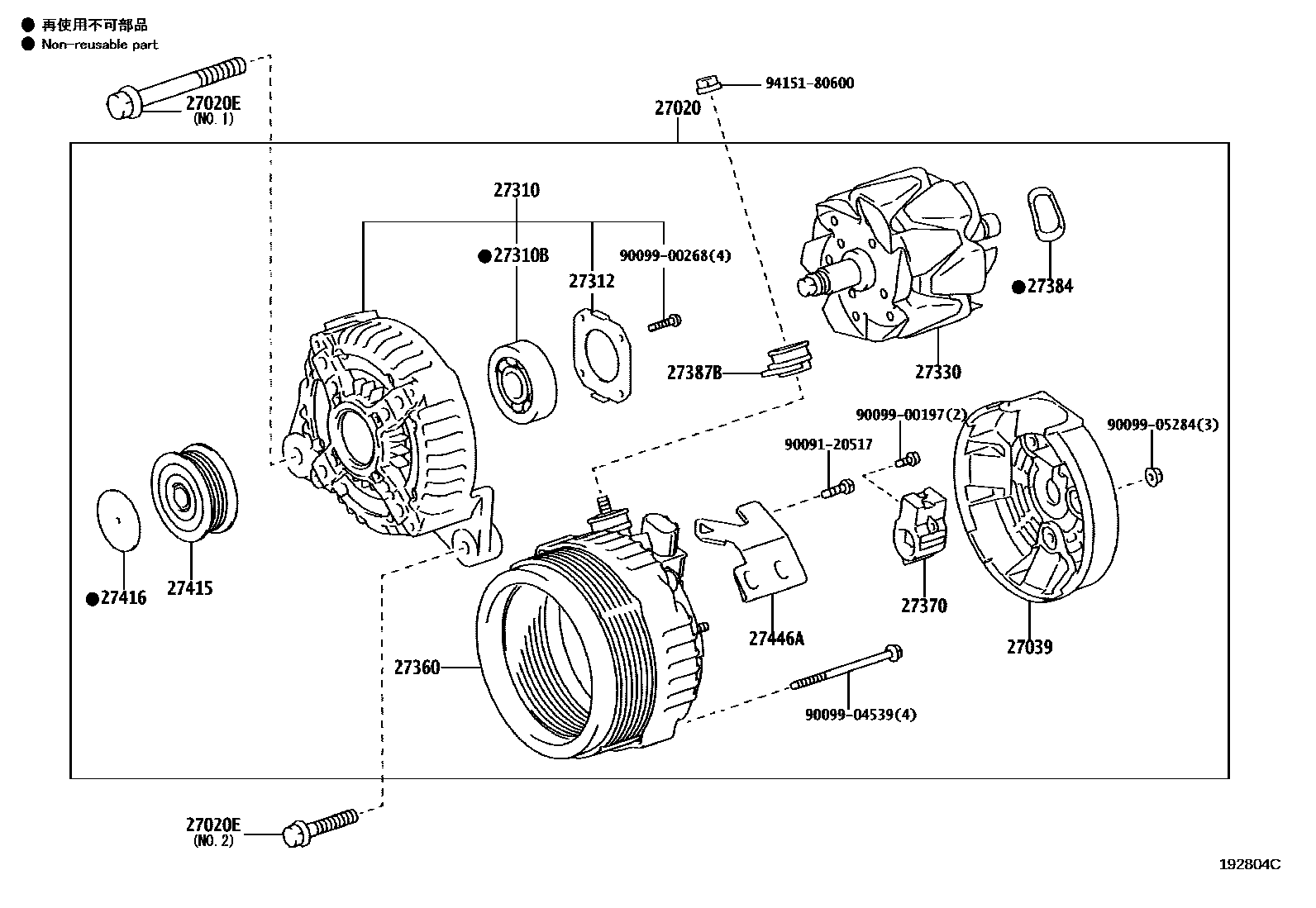

ALTERNATOR

27020ALTERNATOR ASSY

main27060-28321i2AZFE..AZE151201003

12V 100A

27020EBOLT(FOR ALTERNATOR)

main91512-81085i2AZFE..AZE151201003

NO.1

main91551-80840i2AZFE..AZE151201003

NO.2

27039COVER, ALTERNATOR REAR END

main27039-31390i2AZFE..AZE151201003

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-28120i2AZFE..AZE151201003

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2AZFE..AZE151201003

27312PLATE, RETAINER

main27312-72100i2AZFE..AZE151201003

27330ROTOR ASSY, ALTERNATOR

main27330-30070i2AZFE..AZE151201003

27360COIL ASSY, ALTERNATOR

main27360-28280i2AZFE..AZE151201003

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i2AZFE..AZE151201003

27384WASHER

main27384-50030i2AZFE..AZE151201003

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2AZFE..AZE151201003

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W041i2AZFE..AZE151201003-201310

sub27415-0W042

sub27416-0W050

main27415-0W042i2AZFE..AZE151201310-201512

27416CAP, ALTERNATOR PULLEY

main27416-0W020i2AZFE..AZE151201003-201310

main27416-0W050i2AZFE..AZE151201310-201512

27446ACLAMP

main27446-28120i2AZFE..AZE151201003

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
