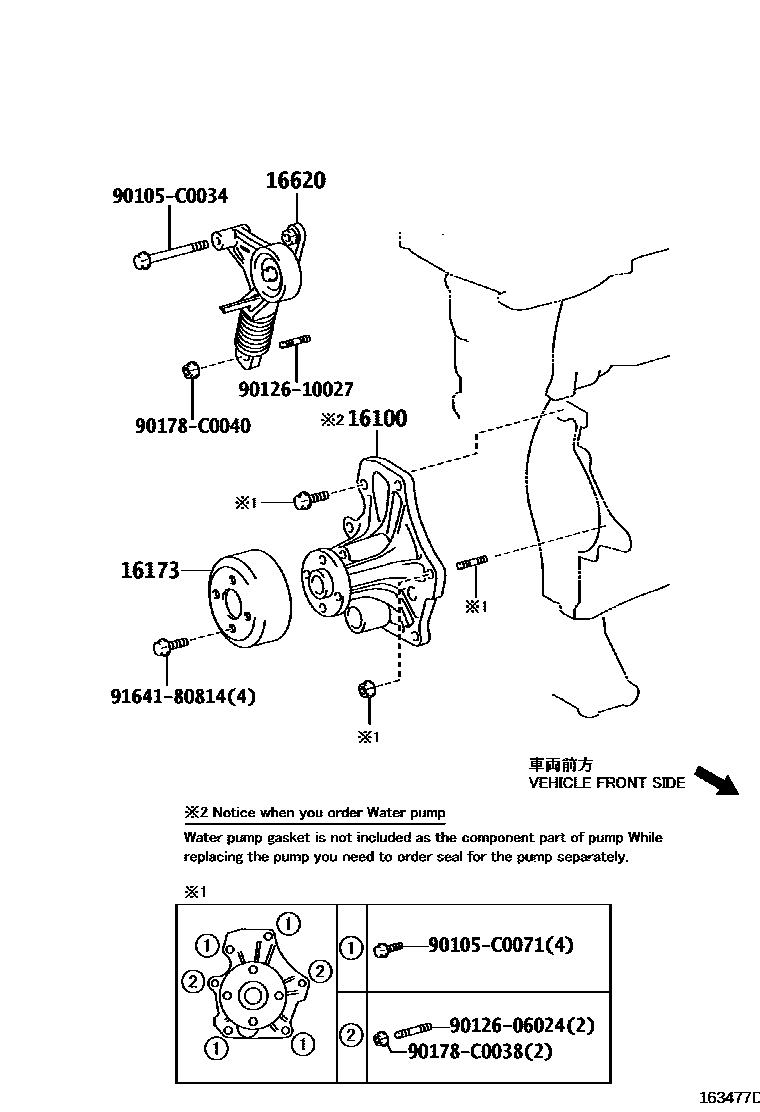

WATER PUMP

0001 1*194 0002 1*195

16100PUMP ASSY, ENGINE WATER

main16100-28041supersedes 16100-0H040i2AZFE..AZE151201011

2AZ-FE,*195

16173PULLEY, WATER PUMP

main16173-28020supersedes 16173-0H040i2AZFE..AZE151201011

2AZ-FE,*195

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..AZE151201011-201301

2AZ-FE,*195

main16620-0H021i2AZFE..AZE151201301

*194; 2AZ-FE,*195

90105C0034

main90105-C0034

90105C0071

main90105-C0071

9012606024

main90126-06024

9012610027

main90126-10027

90178C0038

main90178-C0038

90178C0040

main90178-C0040

9164180814

main91641-80814

10 parts on this diagram · 2 diagrams in section
