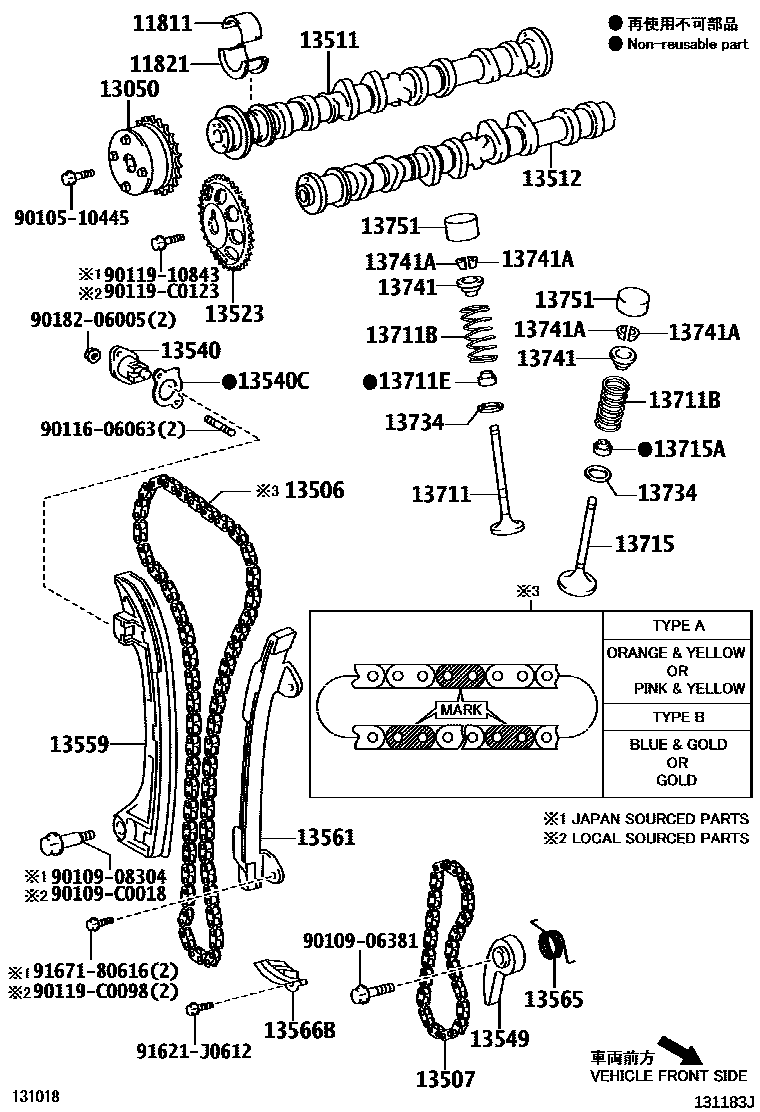

CAMSHAFT & VALVE

11811BEARING, CAMSHAFT, NO.1

main11811-28010-01supersedes 11811-28010-03i2AZFE..AZE151201011

2AZ-FE,MARK 1,*195

main11811-28010-02supersedes 11811-28010-03i2AZFE..AZE151201011

2AZ-FE,MARK 2,*195

main11811-28010-03i2AZFE..AZE151201011

2AZ-FE,MARK 3,*195

11821BEARING, CAMSHAFT, NO.2

main11821-28010-01supersedes 11821-28010-03i2AZFE..AZE151201011

2AZ-FE,MARK 1,*195

main11821-28010-02supersedes 11821-28010-03i2AZFE..AZE151201011

2AZ-FE,MARK 2,*195

main11821-28010-03i2AZFE..AZE151201011

2AZ-FE,MARK 3,*195

13050GEAR ASSY, CAMSHAFT TIMING

main13050-28021i2AZFE..AZE151201011

2AZ-FE,*195

13506CHAIN SUB-ASSY

main13506-28011supersedes 13506-28020i2AZFE..AZE151201011

2AZ-FE,*195 TYPE A:REF ILL.

main13506-28020i2AZFE..AZE151201011-201112

2AZ-FE,*195 TYPE B:REF ILL.

13507CHAIN SUB-ASSY, NO.2

main13507-28010i2AZFE..AZE151201011

2AZ-FE,*195

13511CAMSHAFT

main13501-0H040supersedes 13501-28060i2AZFE..AZE151201011

2AZ-FE,(L),*195

main13501-28060i2AZFE..AZE151201011

2AZ-FE,(J),*195

13512CAMSHAFT, NO.2

main13502-0H030supersedes 13502-28030i2AZFE..AZE151201011

2AZ-FE,(L),*195

main13502-28030i2AZFE..AZE151201011

2AZ-FE,(J),*195

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i2AZFE..AZE151201011

2AZ-FE,*195

13540TENSIONER ASSY, CHAIN, NO.1

main13540-28010i2AZFE..AZE151201011

2AZ-FE,*195

13540CGASKET(FOR CHAIN TENSIONER)

main13552-28010i2AZFE..AZE151201011

2AZ-FE,*195

13549PLATE, CHAIN TENSIONER

main13549-28012i2AZFE..AZE151201011

2AZ-FE,*195

13559SLIPPER, CHAIN TENSIONER

main13559-28010i2AZFE..AZE151201011

2AZ-FE,*195

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-28010i2AZFE..AZE151201011

2AZ-FE,*195

13565SPRING, CHAIN DAMPER

main13565-28012i2AZFE..AZE151201011

2AZ-FE,*195

13566BGUIDE, TIMING CHAIN

main13566-28010i2AZFE..AZE151201011

2AZ-FE,*195

13711VALVE, INTAKE

main13711-28010×8i2AZFE..AZE151201011

2AZ-FE,*195

13711BSPRING, COMPRESSION(FOR INNER)

main90501-28038×16supersedes 90501-C0010i2AZFE..AZE151201011

2AZ-FE,*195

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101×8supersedes 90913-T2001i2AZFE..AZE151201011

2AZ-FE,*195

13715VALVE, EXHAUST

main13715-28040×8i2AZFE..AZE151201011

2AZ-FE,*195

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112×8supersedes 90913-T2003i2AZFE..AZE151201011

2AZ-FE,*195

13734SEAT, VALVE SPRING

main13734-74010×16i2AZFE..AZE151201011

2AZ-FE,*195

13741RETAINER, VALVE SPRING

main13741-22021×16i2AZFE..AZE151201011

2AZ-FE,*195

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i2AZFE..AZE151201011

2AZ-FE,*195

13751LIFTER, VALVE

main13751-46030×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.06,2AZ-FE,*195

main13751-46040×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.08,2AZ-FE,*195

main13751-46050×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.10,2AZ-FE,*195

main13751-46060×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.12,2AZ-FE,*195

main13751-46070×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.14,2AZ-FE,*195

main13751-46080×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.16,2AZ-FE,*195

main13751-46090×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.18,2AZ-FE,*195

main13751-46100×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.20,2AZ-FE,*195

main13751-46110×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.22,2AZ-FE,*195

main13751-46120×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.24,2AZ-FE,*195

main13751-46130×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.26,2AZ-FE,*195

main13751-46140×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.28,2AZ-FE,*195

main13751-46150×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.30,2AZ-FE,*195

main13751-46160×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.32,2AZ-FE,*195

main13751-46170×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.34,2AZ-FE,*195

main13751-46180×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.36,2AZ-FE,*195

main13751-46190×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.38,2AZ-FE,*195

main13751-46200×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.40,2AZ-FE,*195

main13751-46210×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.42,2AZ-FE,*195

main13751-46220×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.44,2AZ-FE,*195

main13751-46230×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.46,2AZ-FE,*195

main13751-46240×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.48,2AZ-FE,*195

main13751-46250×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.50,2AZ-FE,*195

main13751-46260×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.52,2AZ-FE,*195

main13751-46270×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.54,2AZ-FE,*195

main13751-46280×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.56,2AZ-FE,*195

main13751-46290×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.58,2AZ-FE,*195

main13751-46300×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.60,2AZ-FE,*195

main13751-46310×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.62,2AZ-FE,*195

main13751-46320×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.64,2AZ-FE,*195

main13751-46330×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.66,2AZ-FE,*195

main13751-46340×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.68,2AZ-FE,*195

main13751-46350×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.70,2AZ-FE,*195

main13751-46360×16supersedes 13751-46370i2AZFE..AZE151201011

T=5.72,2AZ-FE,*195

main13751-46370×16i2AZFE..AZE151201011

T=5.74,2AZ-FE,*195

9010510445

main90105-10445

9010906381

main90109-06381

9010908304

main90109-08304

90109C0018

main90109-C0018

9011606063

main90116-06063

9011910843

main90119-10843

90119C0098

main90119-C0098

90119C0123

main90119-C0123

9018206005

main90182-06005

91621J0612

main91621-J0612

9167180616

main91671-80616

35 parts on this diagram · 1 diagram in section
