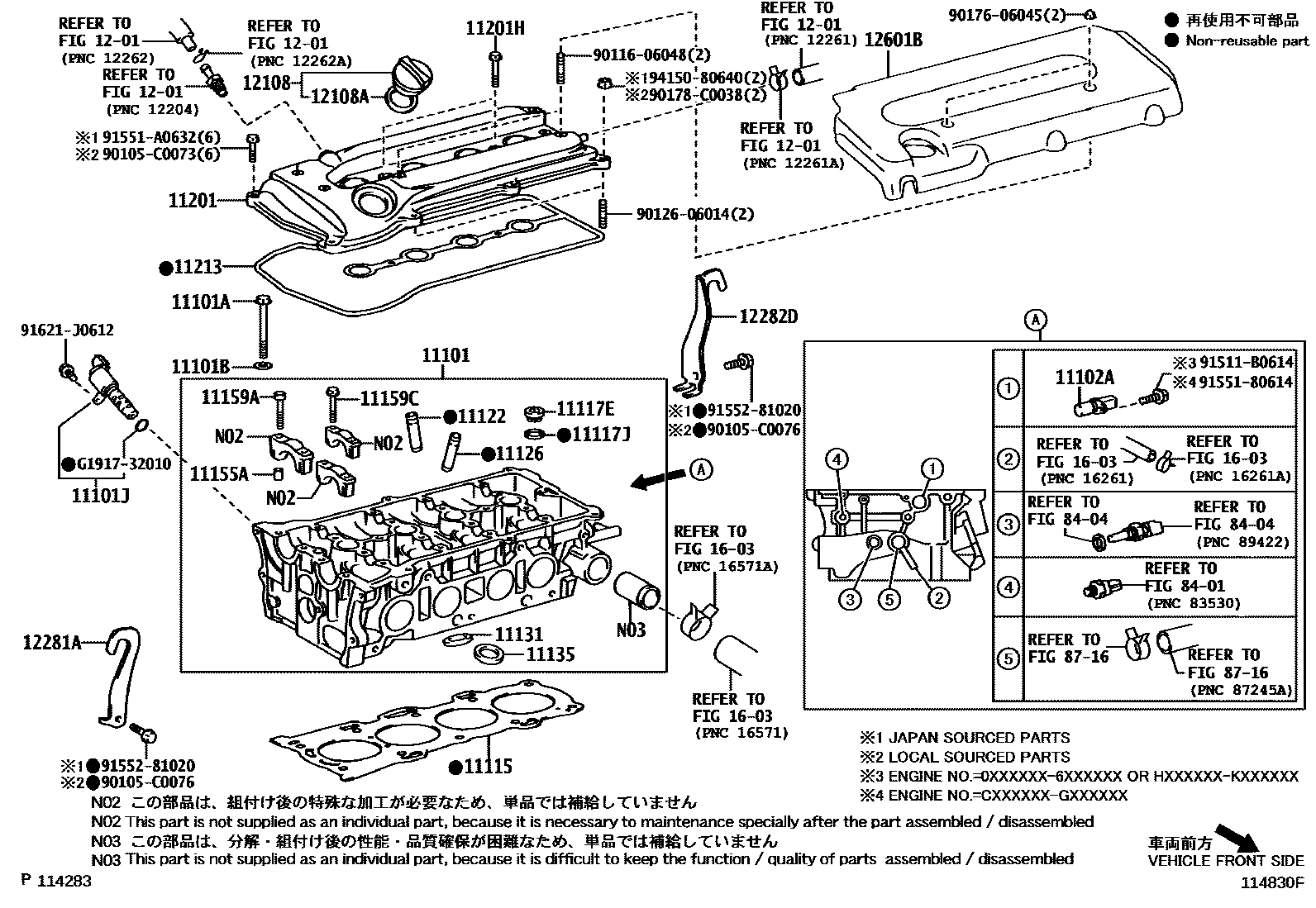

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*194
2AZ-FE,*194
11101ABOLT(FOR CYLINDER HEAD SET)
*194
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*194
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11102ASENSOR, CAMSHAFT POSITION
*194
11115GASKET, CYLINDER HEAD
*194
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*194
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*194
11122BUSH, INTAKE VALVE GUIDE
STD,*194
O/S 0.05,*194
11126BUSH, EXHAUST VALVE GUIDE
STD,*194
O/S 0.05,*194
11131SEAT, INTAKE VALVE
STD,*194
STD,(J),*194
O/S 0.03,*194
O/S 0.03,2AZ-FE,*195
O/S 0.03,*194
11135SEAT, EXHAUST VALVE
STD,(J),*194
O/S 0.03,*194
11155APIN, RING W/HEAD
*194
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
*194
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
*194
11201COVER SUB-ASSY, CYLINDER HEAD
*194
11201HBOLT(FOR CYLINDER HEAD COVER)
*194
11213GASKET, CYLINDER HEAD COVER
(L),*194
(J),*194
1201
12108CAP SUB-ASSY, OIL FILLER
2AZ-FE,(L),*194
(L),*194
*194
2AZ-FE,*194
(J),*194
12108AGASKET(FOR OIL FILLER CAP)
*194
2AZ-FE,*194
12281AHANGER, ENGINE, NO.1
(L),*194
(J),*194
12282DHANGER, ENGINE, NO.2
(L),*194
(J),*194
12601BCOVER SUB-ASSY, ENGINE, NO.1
1603
8401
8404
8716
90105C0073
main90105-C0073
90105C0076
main90105-C0076
9011606048
main90116-06048
9012606014
main90126-06014
9017606045
main90176-06045
90178C0038
main90178-C0038
91511B0614
main91511-B0614
9155180614
main91551-80614
91551A0632
main91551-A0632
9155281020
main91552-81020
91621J0612
main91621-J0612
9415080640
main94150-80640
G191732010
mainG1917-32010
41 parts on this diagram · 1 diagram in section
