STANDARD TOOL

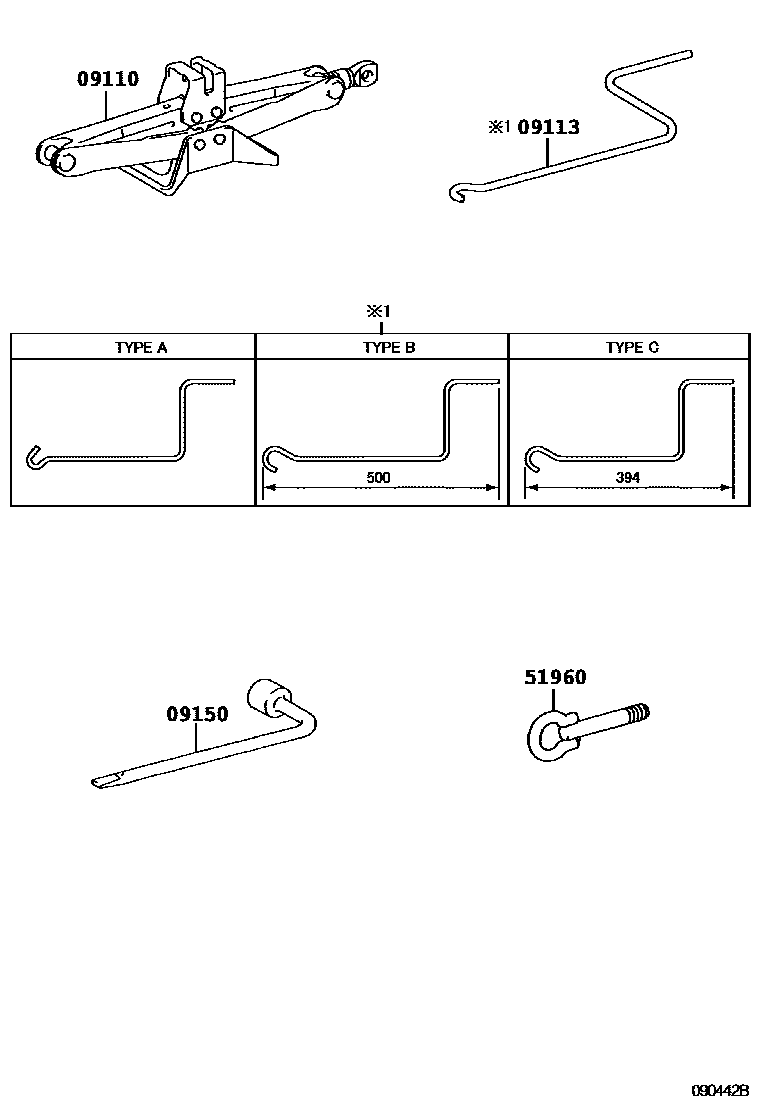

Parts diagram
09110JACK ASSY
main09110-12190i201003-201011
sub09110-47030
main09110-47030i201011
09113HANDLE, JACK
main09113-20040i201003-201107
TYPE A:REFER ILLUST.
sub09113-20050
main09113-20050i201110
TYPE C:REFER ILLUST.
main09113-52010i201003-201109
TYPE B:REFER ILLUST.
main09113-52040i201108-201110
TYPE C:REFER ILLUST.
sub09113-20050
09150WRENCH, HUB NUT BOX
main09150-35070i201003
51960HOOK ASSY, FRONT
main51960-28020i201003

4 parts on this diagram · 1 diagram in section
