FRONT TURN SIGNAL LAMP

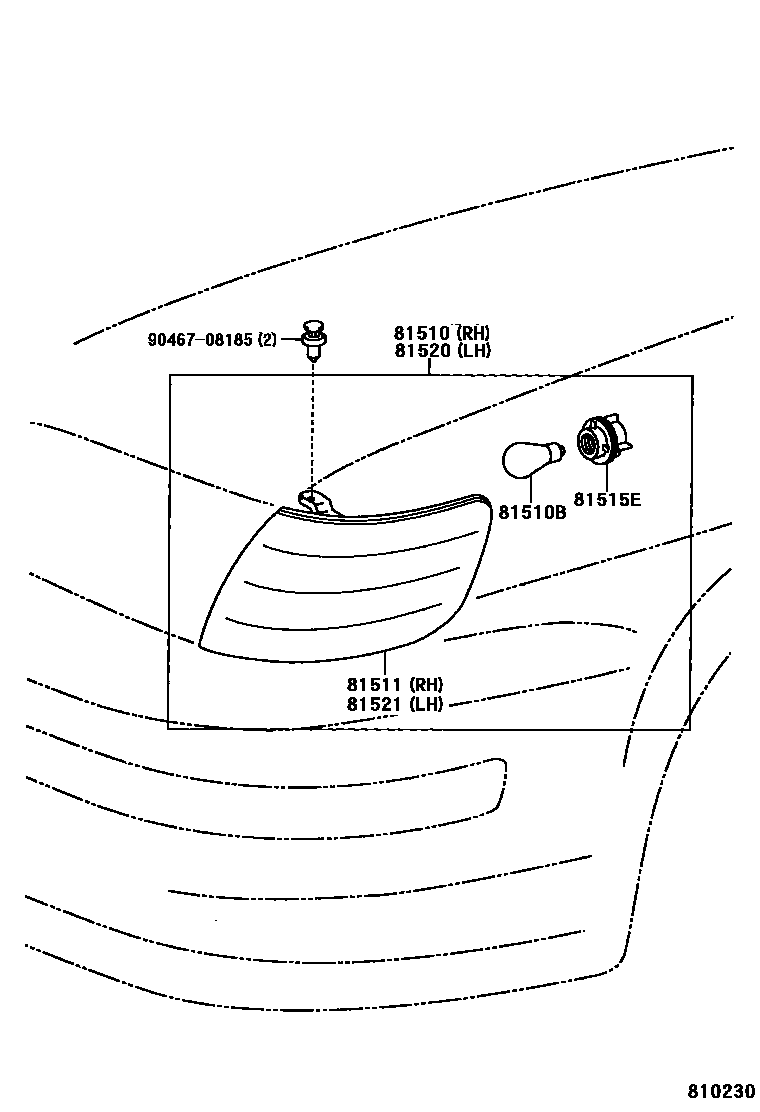

Parts diagram
81510LAMP ASSY, FRONT TURN SIGNAL, RH
main81510-13030i199805
main81510-13080i199912
HONG KONG SPORTS PACKAGE
81510BBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15009×2i199805
12V 21W,AMBER
81511LENS, FRONT TURN SIGNAL LAMP, RH
main81511-13030i199805
main81511-13080i199912
HONG KONG SPORTS PACKAGE
81515ESOCKET PLUG ASSY
main90075-60006×2i199805
81520LAMP ASSY, FRONT TURN SIGNAL, LH
main81520-13030i199805
main81520-13080i199912
HONG KONG SPORTS PACKAGE
81521LENS, FRONT TURN SIGNAL LAMP, LH
main81521-13030i199805
main81521-13080i199912
HONG KONG SPORTS PACKAGE
9046708185

7 parts on this diagram · 1 diagram in section
