DECK BOARD & DECK TRIM COVER

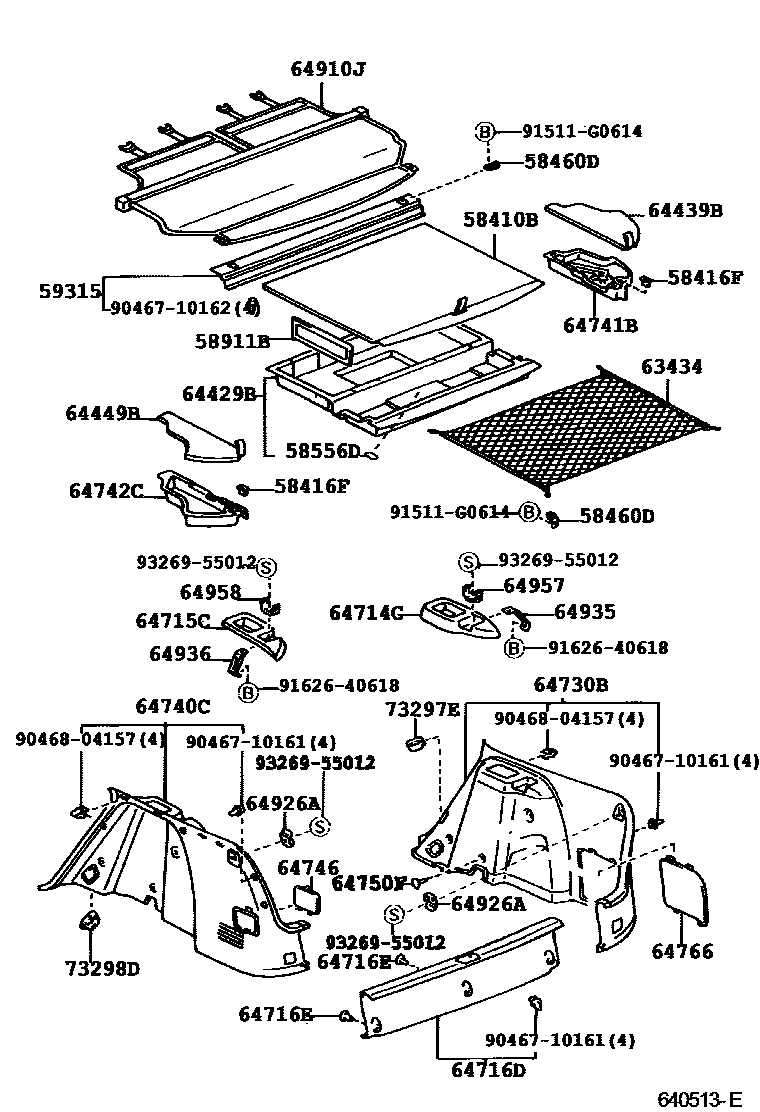

Parts diagram
58410BBOARD ASSY, DECK
main58410-13120-B1i199805
MEDIUM CHARCOAL,TRIM1#
58416FBRACKET, DECK BOARD, NO.1
main58416-13070-B0i199811-199904
MD.CHARCOAL,TRIM1#
main58416-33020-B0i199805-199811
MD.CHARCOAL,TRIM1#
sub58416-33020
main58416-33020-C0i199904
BLACK,TRIM1#
sub58416-33020
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-13020i199805
58556DSILENCER, REAR FLOOR
main58556-13010i199805
20 X 70
main58563-13030i199805
30 X 30
58911BPANEL, BOX, NO.1
main58911-13020-B1i199805-199904
MD.CHARCOAL,TRIM1#
main58911-13020-C0i199904
BLACK,TRIM1#
59315COVER, REAR FLOOR BOX
main59315-13010-B1i199805
MEDIUM CHARCOAL,TRIM1#
63434NET, ROOM RACK
main63434-13040i199805
64429BBOX, LUGGAGE ROOM
main64429-13010-B1i199805-199904
MD.CHARCOAL,TRIM1#
sub64429-13010
main64429-13010-C0i199904
BLACK,TRIM1#
sub64429-13010
64439BCOVER, LUGGAGE ROOM BOX SIDE, RH
main64439-13010-B0i199805
MEDIUM CHARCOAL,TRIM1#
64449BCOVER, LUGGAGE ROOM BOX SIDE, LH
main64449-13010-B0i199805
MEDIUM CHARCOAL,TRIM1#
64714CCOVER, DECK SIDE TRIM, RH
main64714-13040-B0i199805-199904
MD.CHARCOAL,TRIM1#
main64714-13060-B0i199805
MD.CHARCOAL,TRIM1#
main64714-13090-B0i199904
MD.CHARCOAL,TRIM1#
64715CCOVER, DECK SIDE TRIM, LH
main64715-13040-B0i199805-199904
MD.CHARCOAL,TRIM1#
main64715-13060-B0i199805
MD.CHARCOAL,TRIM1#
main64715-13090-B0i199904
MD.CHARCOAL,TRIM1#
64716DCOVER, DECK TRIM, REAR
main64716-13100-B0i199805
MD.CHARCOAL,TRIM1#
sub64716-13100
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-04017-B0i199805
MD.CHARCOAL,TRIM1#,NO.1
main90467-07059-B3i199805
MD.CHARCOAL,TRIM1#,NO.2
sub90467-07059
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-13080-B0i199805
MD. CHARCOAL,TRIM1#
main64730-13120-B0i199805
MD.CHARCOAL,TRIM1#
sub64730-13120
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-13070-B0i199805
MD.CHARCOAL,TRIM1#
main64740-13100-B0i199805
MD.CHARCOAL,TRIM1#
sub64740-13100
64741BBOX, DECK SIDE TRIM, RH
main64741-13010-B1i199805-199904
MD.CHARCOAL,TRIM1#
sub64741-13010
main64741-13010-C0i199904
BLACK,TRIM1#
sub64741-13010
64742CBOX, DECK SIDE TRIM, LH
main64742-13010-B1i199805-199904
MD.CHARCOAL,TRIM1#
sub64742-13010
main64742-13010-C0i199904
BLACK,TRIM1#
sub64742-13010
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-13010-B0i199805
MD.CHARCOAL,TRIM1#
sub64746-13010
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-07059-B3i199805
MD.CHARCOAL,TRIM1#
sub90467-07059
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64766-13090-B0i199805
MD.CHARCOAL,TRIM1#
sub64766-13090
64910JCOVER ASSY, TONNEAU
main64910-13010-B0i199805-199904
MD.CHARCOAL,TRIM1#
main64910-13010-B1i199904
MD.CHARCOAL,TRIM1#
64926AHOOK, TONNEAU
main64926-13010-B0i199805
MD.CHARCOAL,TRIM1#
64935HOLDER, TONNEAU COVER, RH
main64935-13080i199805
64936HOLDER, TONNEAU COVER, LH
main64936-13030i199805
64957RETAINER, TONNEAU COVER, RH
main64957-13010-B0i199805
MD.CHARCOAL,TRIM1#
64958RETAINER, TONNEAU COVER, LH
main64958-13010-B0i199805
MD.CHARCOAL,TRIM1#
73297ECOVER, DECK TRIM SIDE BELT HOLE, RH
main73297-13020-B0i199805
MD.CHARCOAL,TRIM1#
sub73297-13020
73298DCOVER,DECK TRIM SIDE BELT HOLE, LH
main73298-13010-B0i199805
MD.CHARCOAL,TRIM1#
sub73298-13010
main73298-13020-B0i199805
MD.CHARCOAL,TRIM1#
sub73298-13020
9046710161
main90467-10161
9046710162
main90467-10162
9046804157
main90468-04157
91511G0614
main91511-G0614
9162640618
main91626-40618
9326955012
main93269-55012

35 parts on this diagram · 2 diagrams in section
