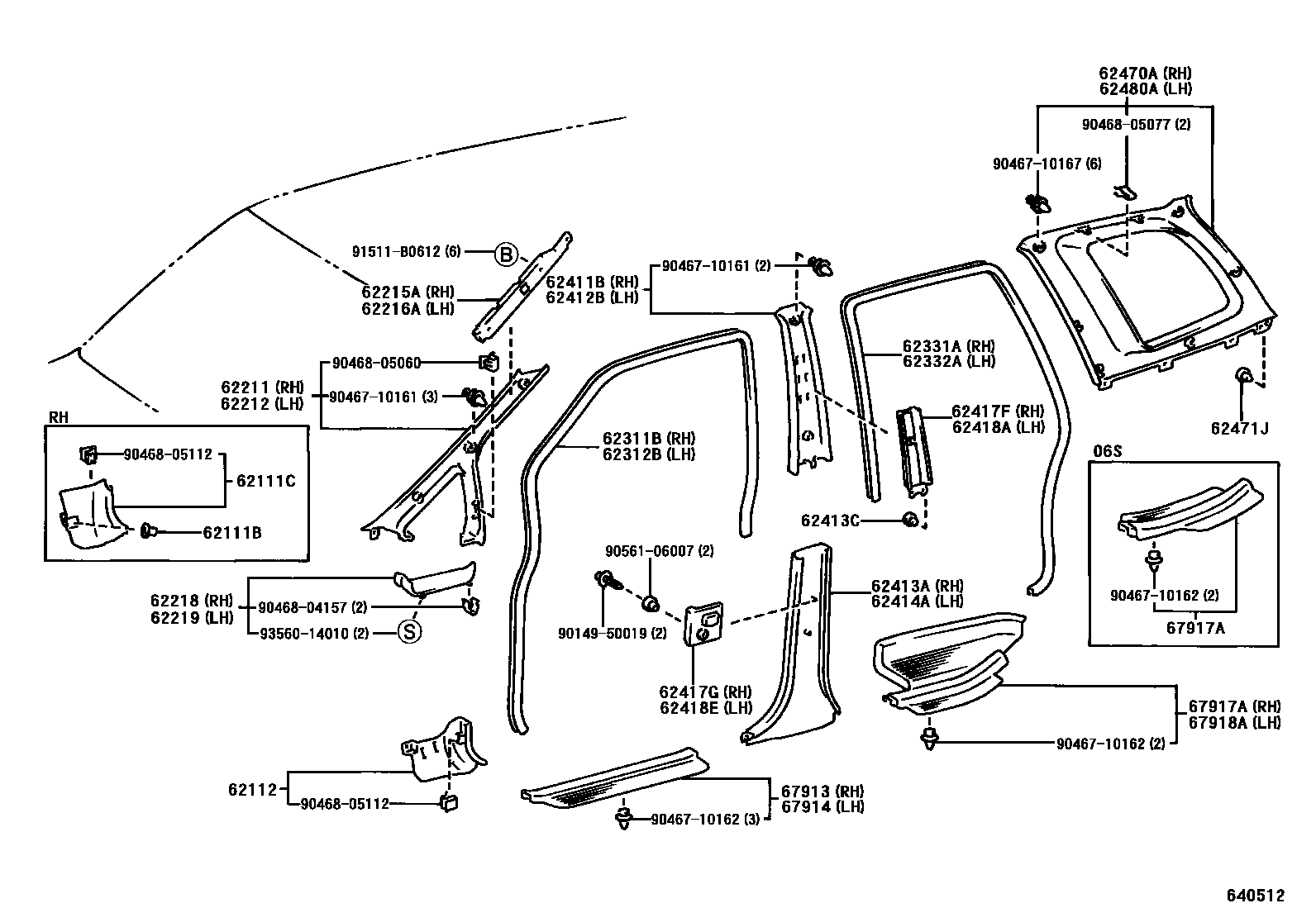

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05050-22iAE111199805

BLACK,TRIM1#

sub90467-05050

62111CBOARD, COWL SIDE TRIM, RH

main62111-12231-B1iAE111199805

MD.CHARCOAL,TRIM1#

sub62111-12231

62112BOARD, COWL SIDE TRIM, LH

main62112-12230-B1iAE111199805

MD.CHARCOAL,TRIM1#

sub62112-12230

62211GARNISH, FRONT PILLAR, RH

main62211-13050-B0iAE111199805

MD.CHARCOAL,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-13050-B0iAE111199805

MD.CHARCOAL,TRIM1#

62215AINSERT, FRONT PILLAR GARNISH, RH

main62215-13010iAE111199805

62216AINSERT, FRONT PILLAR GARNISH, LH

main62216-13010iAE111199805

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-13020-B0iAE111199805

MD.CHARCOAL,TRIM1#

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-13020-B0iAE111199805

MD.CHARCOAL,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-13010-B0iAE111199805-199809

MD.CHARCOAL,TRIM1#

sub62311-13011

main62311-13011-B0iAE111199809

MD.CHARCOAL,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-13010-B0iAE111199805-199809

MD.CHARCOAL,TRIM1#

sub62312-13011

main62312-13011-B0iAE111199809

MD.CHARCOAL,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-13010-B0iAE111199805-199809

MD.CHARCOAL,TRIM1#

sub62331-13011

main62331-13011-B0iAE111199809

MD.CHARCOAL,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-13010-B0iAE111199805-199809

MD.CHARCOAL,TRIM1#

sub62332-13011

main62332-13011-B0iAE111199809

MD.CHARCOAL,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-13040-B0iAE111199805

MD.CHARCOAL,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-13040-B0iAE111199805

MD.CHARCOAL,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-13030-B0iAE111199805

MD.CHARCOAL,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-07059-B3iAE111199805

MD.CHARCOAL,TRIM1#

sub90467-07059

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-13030-B0iAE111199805

MD.CHARCOAL,TRIM1#

62417FPAD, CENTER PILLAR GARNISH, RH

main62417-13010iAE111199805

62417GPAD, CENTER PILLAR GARNISH, LOWER RH

main62417-13020iAE111199805

62418APAD, CENTER PILLAR GARNISH, LH

main62418-13010iAE111199805

62418EPAD, CENTER PILLAR GARNISH, LOWER LH

main62418-13020iAE111199805

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-13040-B0iAE111..06S199805

MD.CHARCOAL,TRIM1#

main62470-13060-B0iAE111..05S199805

MD.CHARCOAL,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-07059-B3iAE111199805

MD.CHARCOAL,TRIM1#

sub90467-07059

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-13040-B0iAE111..06S199805

MD.CHARCOAL,TRIM1#

main62480-13060-B0iAE111..05S199805

MD.CHARCOAL,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12240-B1iAE111199805

MD.CHARCOAL,TRIM1#

sub67913-12240

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12210-B1iAE111199805

MD.CHARCOAL,TRIM1#

sub67914-12210

67917APLATE, REAR DOOR SCUFF, RH

main67917-13040-B0iAE111199805

MD.CHARCOAL,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-13040-B0iAE111..06S199805

MD.CHARCOAL,TRIM1#

main67918-13050-B0iAE111..05S199805

MD.CHARCOAL,TRIM1#

9014950019

main90149-50019

9046710161

main90467-10161

9046710162

main90467-10162

9046710167

main90467-10167

9046804157

main90468-04157

9046805060

main90468-05060

9046805077

main90468-05077

9046805112

main90468-05112

9056106007

main90561-06007

91511B0612

main91511-B0612

9356014010

main93560-14010

40 parts on this diagram · 1 diagram in section
