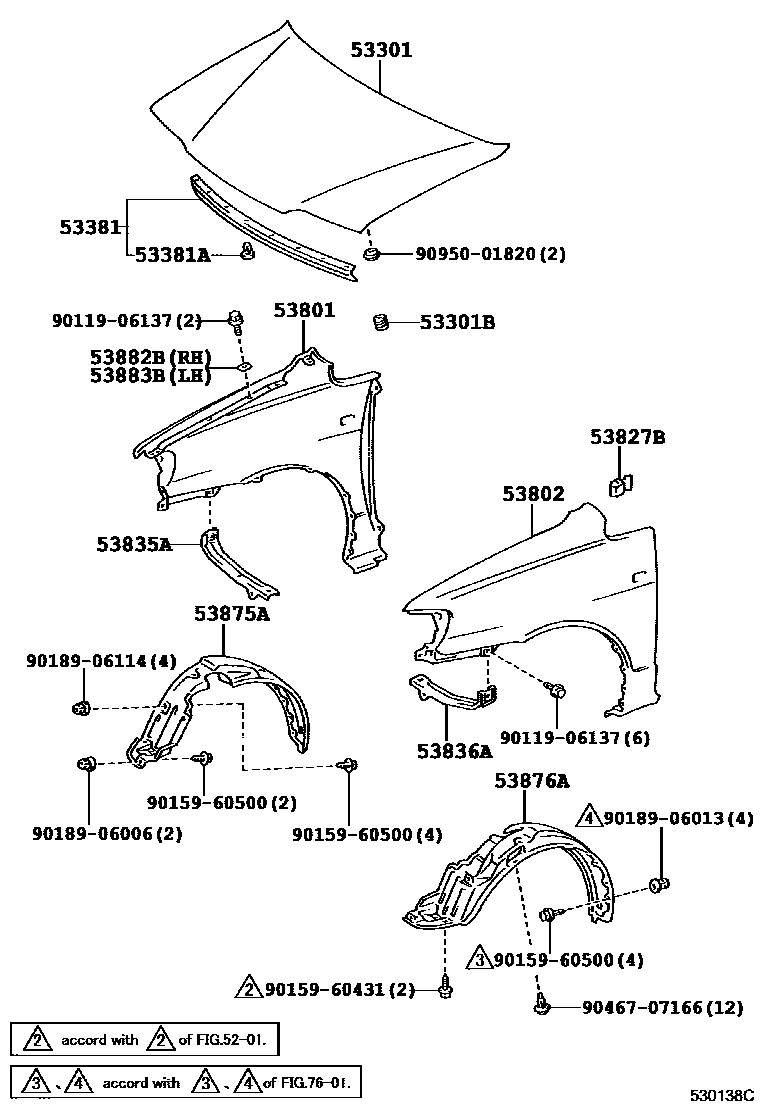

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-13040iAE111199805

53301BCUSHION, HOOD BUMPER

main90541-15022×2iAE111199805

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-13010iAE111199805

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iAE111199805

53801FENDER SUB-ASSY, FRONT RH

main53811-13902iAE111199805

53802FENDER SUB-ASSY, FRONT LH

main53812-13902iAE111199805

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-13010×2iAE111199805

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-13020iAE111199805

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-13020iAE111199805

53875ALINER, FRONT FENDER, RH

main53875-13010iAE111199805-199904

main53875-13030iAE111199904

53876ALINER, FRONT FENDER, LH

main53876-13010iAE111199805-199904

main53876-13030iAE111199904

53882BSEAL, FRONT FENDER, RH

main53882-16030×4iAE111199805

53883BSEAL, FRONT FENDER, LH

main53882-16030×4iAE111199805

9011906137

main90119-06137

9015960431

main90159-60431

9015960500

main90159-60500

9018906006

main90189-06006

9018906013

main90189-06013

9018906114

main90189-06114

9046707166

main90467-07166

9095001820

main90950-01820

21 parts on this diagram · 1 diagram in section
