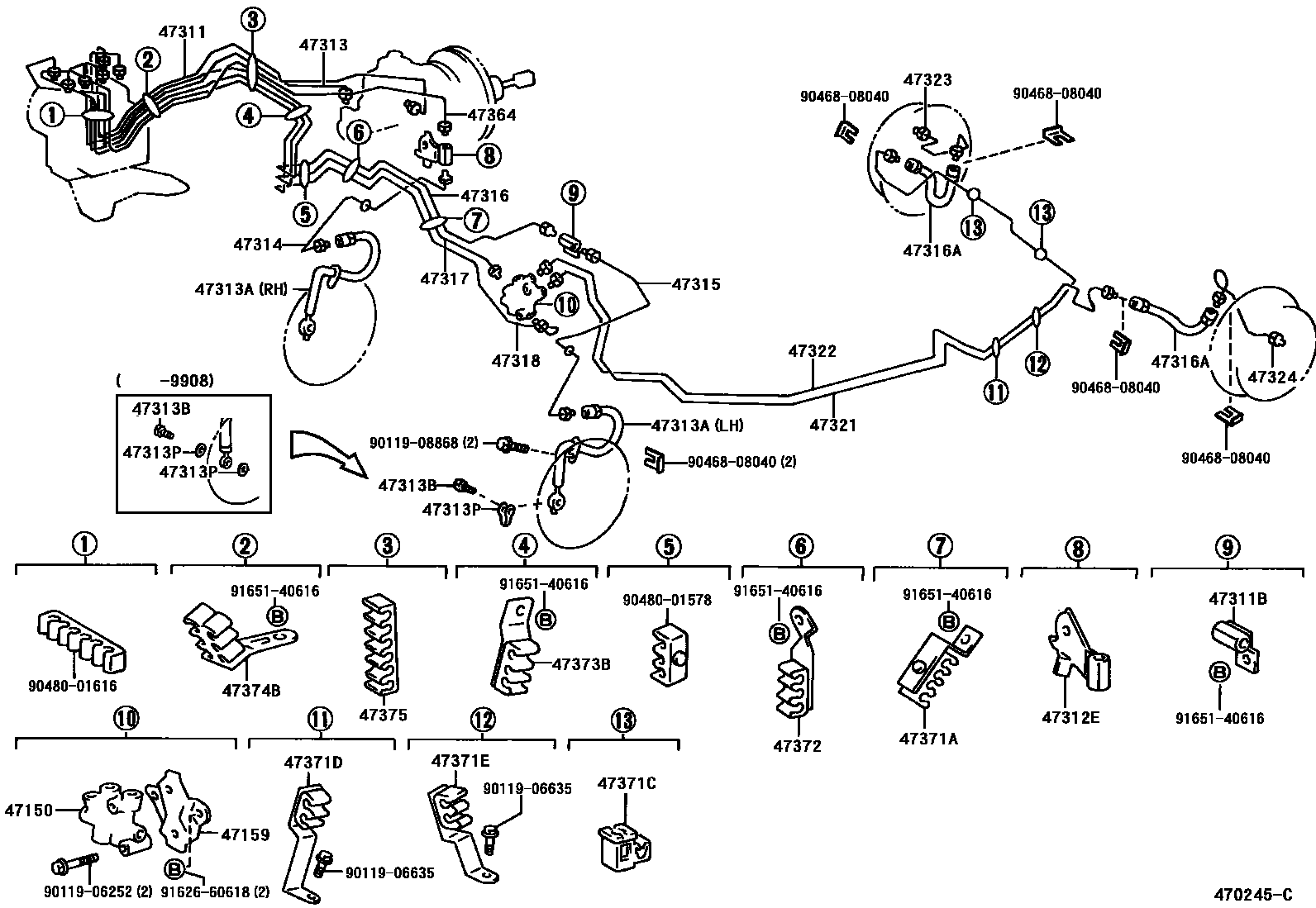

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47150VALVE ASSY, PROPORTIONING

main47150-12150iAE111199805

47159BRACKET, PROPORTIONING VALVE

main47159-12070iAE111199805

47311TUBE, FRONT BRAKE, NO.1

main47311-12580iAE111199805-199904

main47311-12620iAE111199904

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10116iAE111199805

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12007iAE111199805

47313TUBE, FRONT BRAKE, NO.3

main47313-12390iAE111199805-199904

main47313-12430iAE111199904

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02911iAE111199805

RH

main90947-02912iAE111199805

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAE111199805-199908

main90401-10058×2iAE111199908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAE111199908

main90430-10074×4iAE111199805-199908

47314TUBE, FRONT BRAKE, NO.4

main47314-12290iAE111199805

47315TUBE, FRONT BRAKE, NO.5

main47315-12450iAE111199805

47316TUBE, FRONT BRAKE, NO.6

main47316-12270iAE111199805-199904

main47316-12320iAE111199904

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02921×2iAE111199805

47317TUBE, FRONT BRAKE, NO.7

main47317-12140iAE111199805-199904

main47317-12170iAE111199904

47318TUBE, FRONT BRAKE, NO.8

main47318-12280iAE111199805-199904

main47318-12310iAE111199904

47321TUBE, REAR BRAKE, NO.1

main47321-12130iAE111199805

47322TUBE, REAR BRAKE, NO.2

main47322-12280iAE111199805

47323TUBE, REAR BRAKE, NO.3

main47323-12250iAE111199805

47324TUBE, REAR BRAKE, NO.4

main47324-12210iAE111199805

47364TUBE, FRONT BRAKE, NO.13

main47364-12110iAE111199805-199904

main47364-12160iAE111199904

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12090iAE111199805

47371CCLAMP, BRAKE TUBE, NO.7

main47371-12150×2iAE111199805-199811

main90949-01B45×2iAE111199811

47371DCLAMP, BRAKE TUBE, NO.8

main47375-12040iAE111199805

47371ECLAMP, BRAKE TUBE, NO.9

main47375-12060iAE111199805

47372CLAMP, BRAKE TUBE, NO.2

main47372-12060iAE111199805

47373BCLAMP, BRAKE TUBE, NO.3

main47373-12010iAE111199805

47374BCLAMP, BRAKE TUBE, NO.4

main47374-12030iAE111199805

47375CLAMP, BRAKE TUBE, NO.5

main90949-01856iAE111199805

9011906252

main90119-06252

9011906635

main90119-06635

9011908868

main90119-08868

9046808040

main90468-08040

9048001578

main90480-01578

9048001616

main90480-01616

9162660618

main91626-60618

9165140616

main91651-40616
