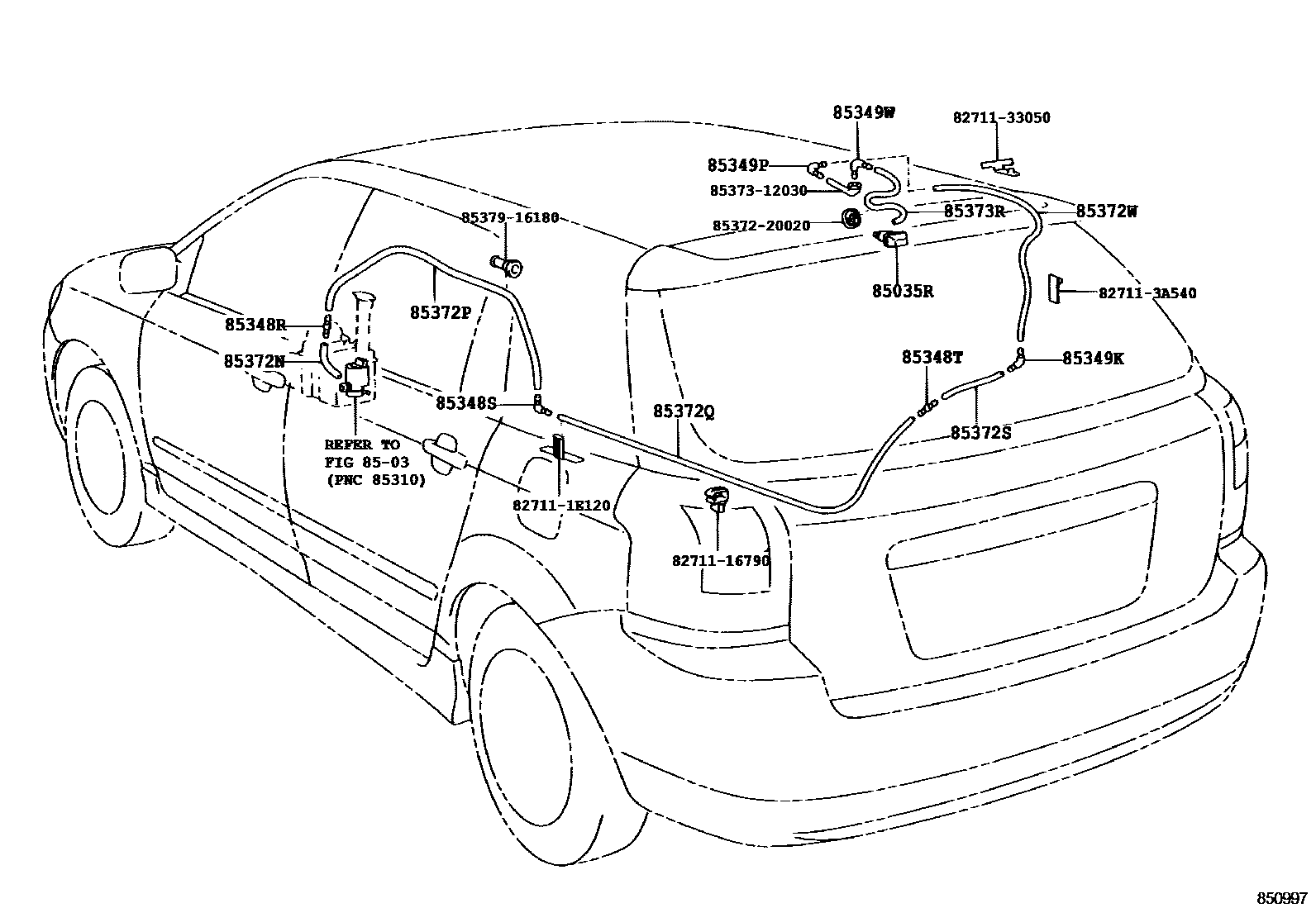

Toyota COROLLA 5D153 — REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
8537312030HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
8537916180JOINT
21 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota COROLLA 5D153
This section contains 21 genuine Toyota parts for the REAR WASHER system of the Toyota COROLLA 5D153. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
