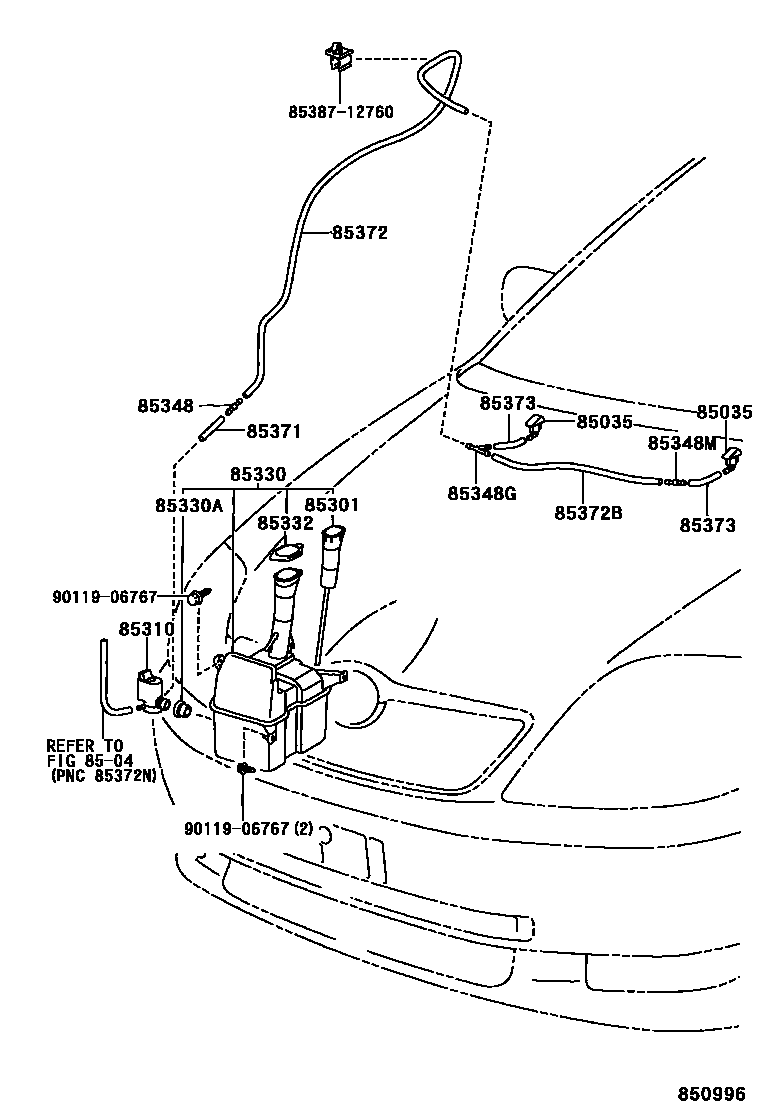

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-12210×2iZZE122200110-200404

main85381-44010×2iZZE122200404-200702

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85318-12450iZZE122200110-200404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iZZE122200110-200404

85330JAR ASSY, WINDSHIELD WASHER

main85315-12450iZZE122200110-200209

main85315-13040iZZE122200209-200404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iZZE122200110-200404

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iZZE122200110-200404

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iZZE122200110-200404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iZZE122200110-200404

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iZZE122200110-200404

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iZZE122200110-200404

L=1450(*H,L=50)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iZZE122200110-200404

L=1800(*H,L=1520)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iZZE122200110-200404

L=1800(*H,L=480)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iZZE122200110-200404

L=1450(*H,L=90)

8538712760CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12760

9011906767

main90119-06767

16 parts on this diagram · 2 diagrams in section
