WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR,ROOF & FLOOR 0005 1DOOR,ROOF & FLOOR 0006 1CLAMP & BRACKET 0007 1CABLE BOND 0008 1CONNECTOR

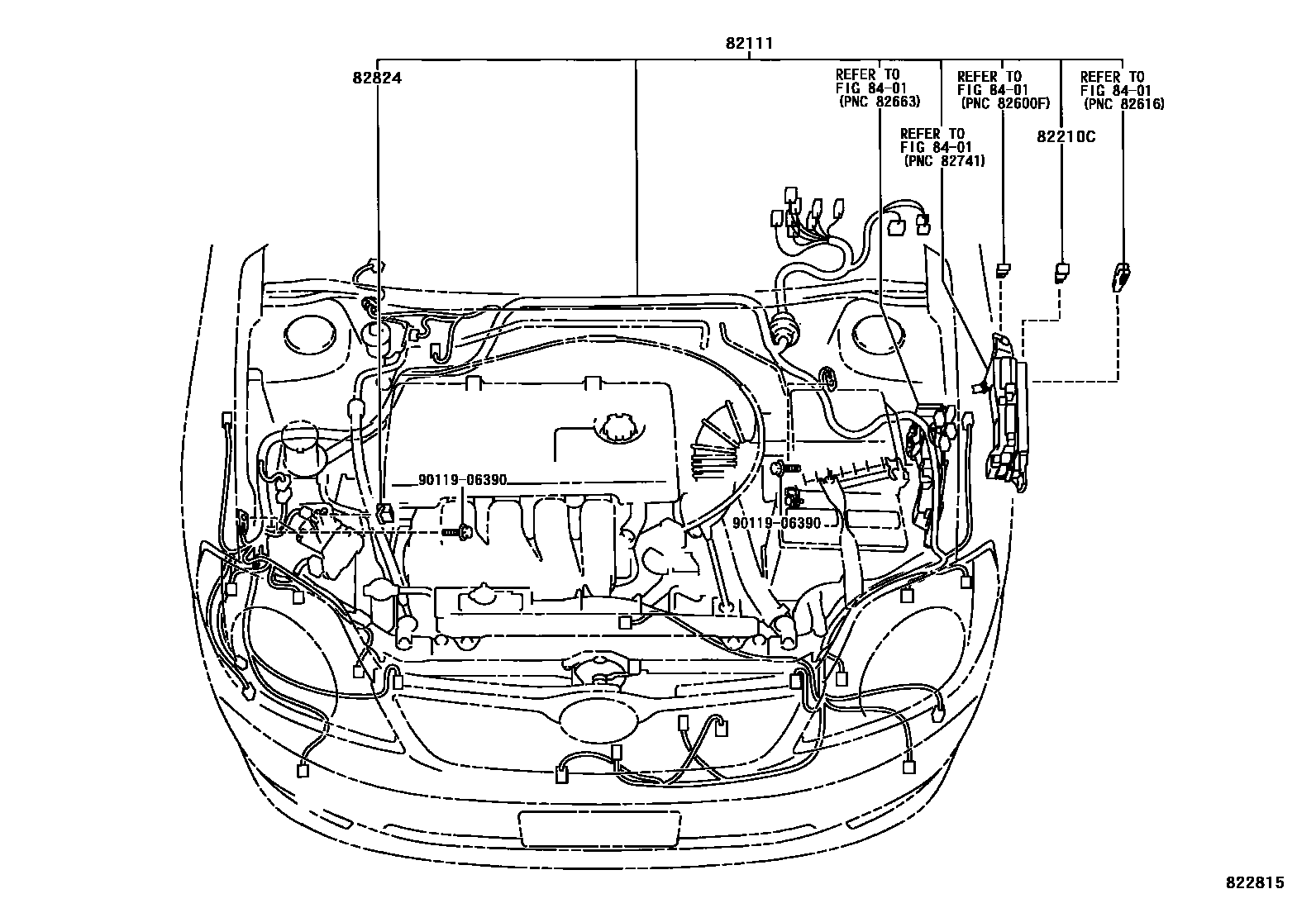

82111WIRE, ENGINE ROOM MAIN

main82111-13A60iZZE122..CONQ200404-200509

main82111-13A61iZZE122..CONQ200510-200702

main82111-13A70iZZE122200404-200509

W(*80,DRIVER SIDE & PASSENGER SIDE)

main82111-13A71iZZE122200510-200702

W(*80,DRIVER SIDE & PASSENGER SIDE)

main82115-12470iZZE122200110-200404

W(ABS)

main82115-12480iZZE122..CONQ200110-200404

82210CFUSIBLE LINK

main90982-08246iZZE122200110-200404

100A,TERM.:MALE,BLUE

main90982-08280iZZE122200404-200702

30A,TERM.:FEMALE,PNK,YAZAKI

main90982-08281iZZE122200110-200404

40A,TERM.:FEMALE,GRN,YAZAKI

main90982-08282iZZE122200110-200404

50A,TERM.:FEMALE,RED

main90982-08283iZZE122200110-200404

30A,TERM.:FEMALE,PNK

main90982-08284iZZE122200110-200404

40A,TERM.:FEMALE,GRN,TAIHEIYO

82824CONNECTOR, WIRING HARNESS

main82824-12300iZZE122200110-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

5 parts on this diagram · 8 diagrams in section
