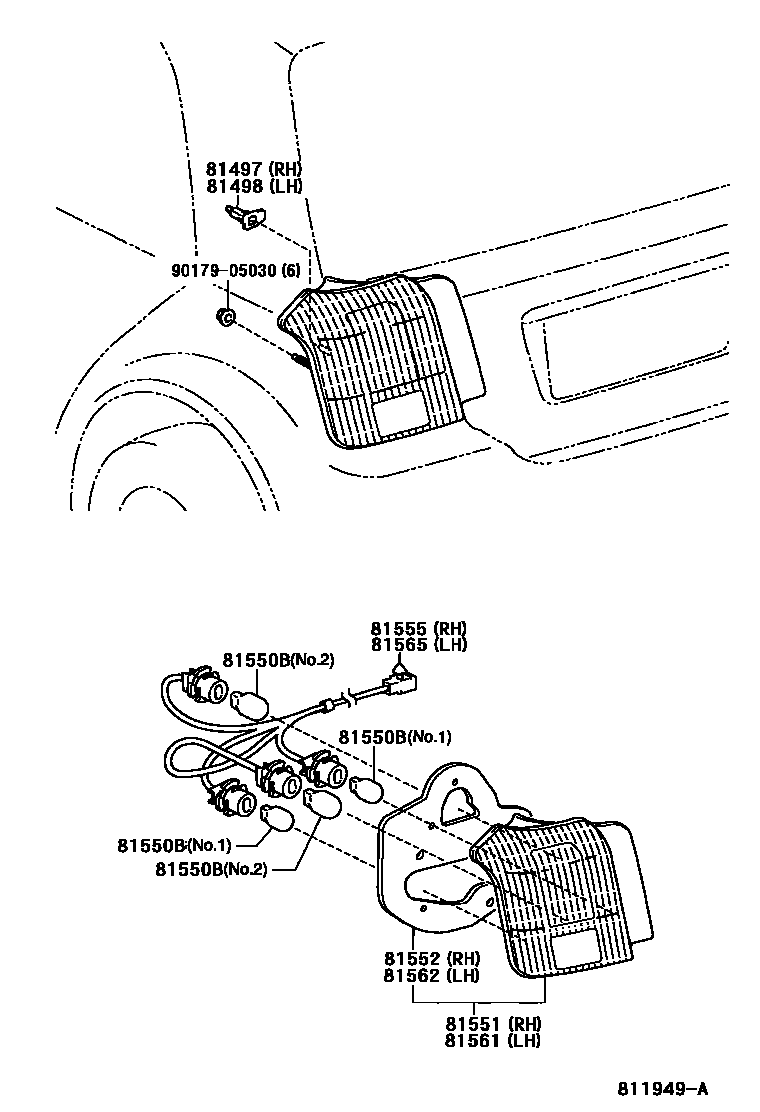

REAR COMBINATION LAMP

0001 1 0002 1

81497COVER, REAR COMBINATION LAMP, RH

main81497-13010iZZE122200110-200702

81498COVER, REAR COMBINATION LAMP, LH

main81498-13010iZZE122200110-200702

81550LAMP ASSY, REAR COMBINATION, RH

main81550-13650iZZE122200404-200702

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iZZE122200110-200404

12V 21W,NO.1

main90981-13044iZZE122200110-200404

12V 21/5W,NO.2

main99132-11210iZZE122200404-200702

12V 21W,NO.1

main99132-21210iZZE122200404-200702

12V 21/5W,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-13500iZZE122200110-200404

main81551-13650iZZE122200404-200702

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-13480iZZE122200110-200404

main81552-13660iZZE122200404-200702

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13500iZZE122200204-200404

main81565-13480iZZE122200110-200204

81561LENS, REAR COMBINATION LAMP, LH

main81561-13480iZZE122200110-200404

main81561-13620iZZE122200404-200702

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-13480iZZE122200110-200201

main81552-13660iZZE122200404-200702

main81562-13470iZZE122200201-200404

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-13480iZZE122200110-200404

9017905030

main90179-05030

11 parts on this diagram · 2 diagrams in section
