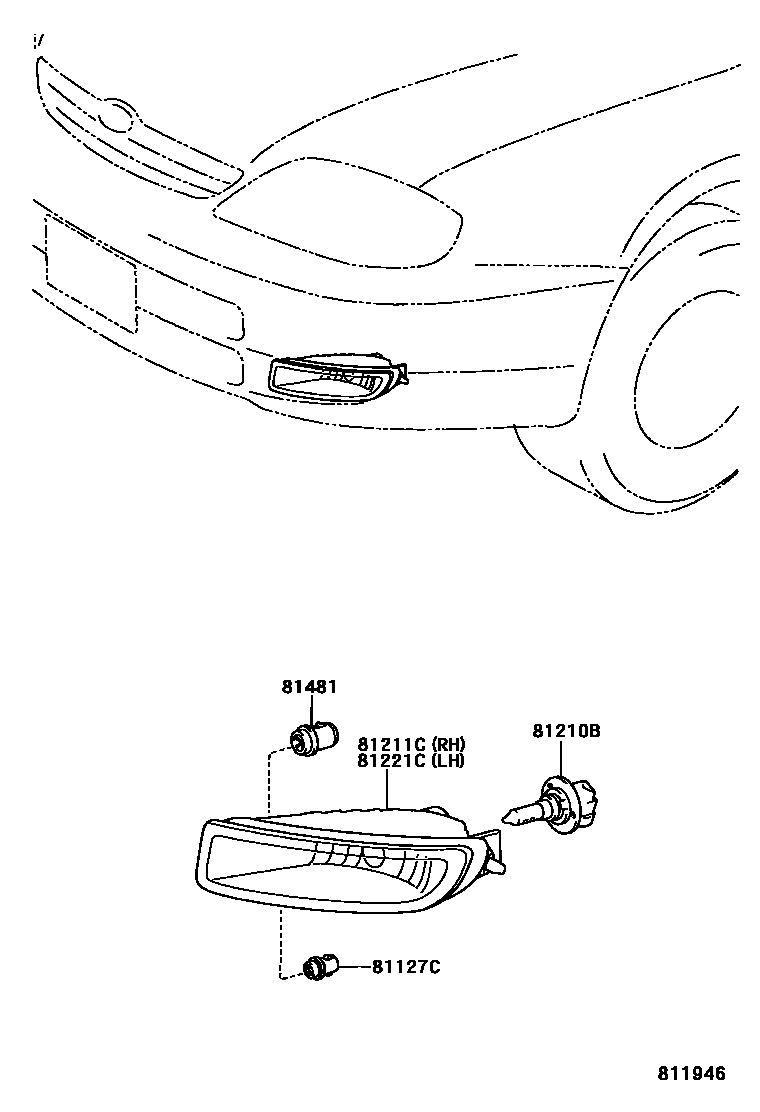

FOG LAMP

0001 1 0002 1

81127CBEARING FOG LAMP

main90075-10811×2iZZE122..LVN,ULT200110-200404

81210BBULB, FOG LAMP

main90981-13047×2iZZE122..LVN,ULT200110-200404

12V 51W,HALOGEN

main90981-13075×2iZZE122..LVN,ULT200511-200702

12V 55W,HALOGEN,PHILIPS

main90981-13081×2iZZE122..LVN,ULT200511-200702

12V 55W,HALOGEN,OSRAM

main90981-WD011×2iZZE122..LVN,ULT200404-200511

12V 55W,OSRAM

main90981-WD012×2iZZE122..LVN,ULT200404-200511

12V 55W,PHILIPS

81211CLAMP UNIT, FOG LAMP, RH

main81211-12150iZZE122..LVN,ULT200110-200404

81221CLAMP UNIT, FOG LAMP, LH

main81221-12160iZZE122..LVN,ULT200110-200404

81481BRACKET, FOG LAMP

main81481-10030×2iZZE122..LVN,ULT200110-200404

5 parts on this diagram · 2 diagrams in section
