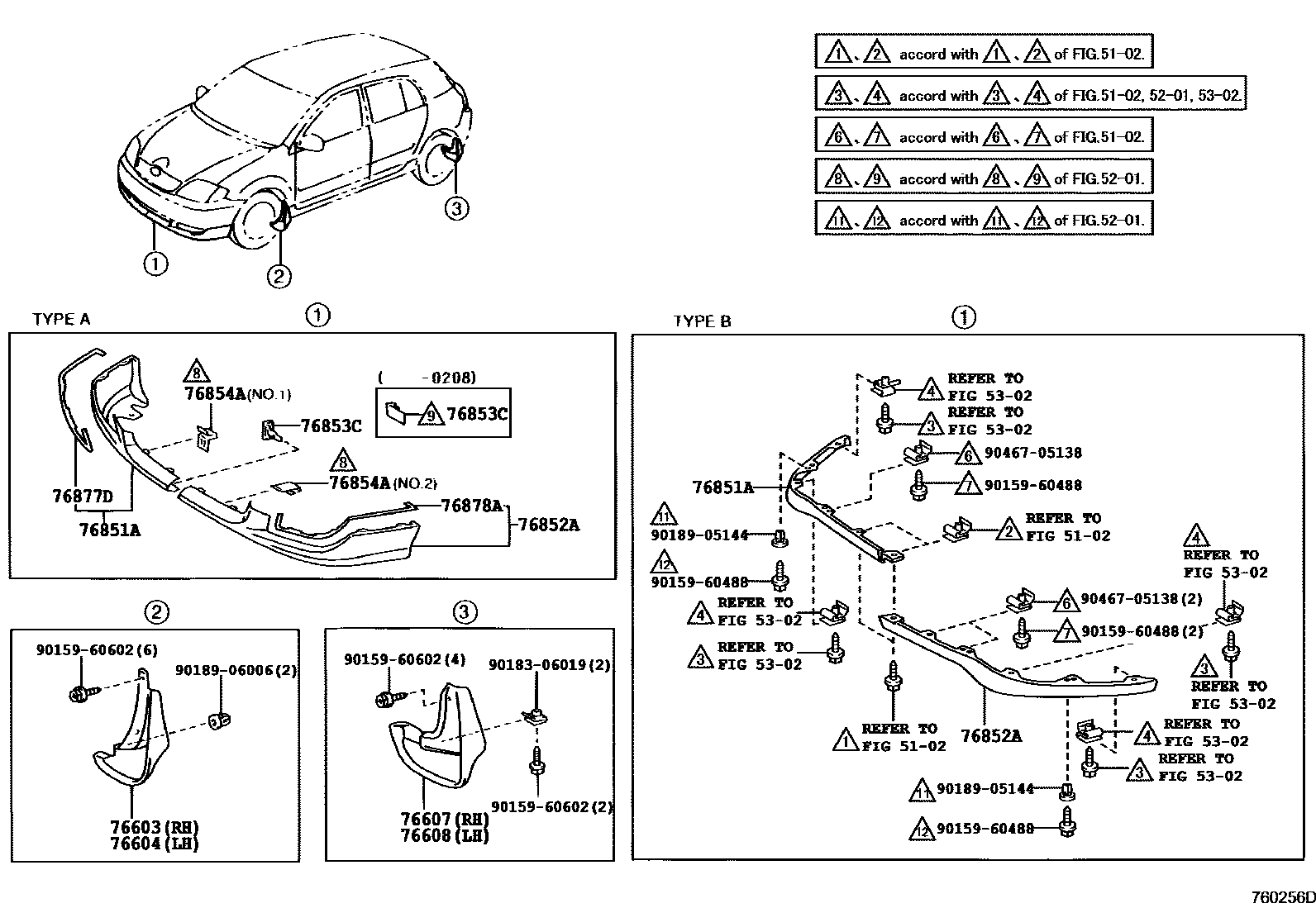

MUDGUARD & SPOILER
5102SUSPENSION CROSSMEMBER & UNDER COVER
5302HOOD & FRONT FENDER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
BLUE ME.,8P1
LT.BLUE M.M.,8S1
UNPAINTED
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
BLUE ME.,8P1
LT.BLUE M.M.,8S1
UNPAINTED
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
LT.BLUE M.M.,8S1
BLUE ME.,8P1
UNPAINTED
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
SILVER ME.,199
SILVER ME.,1C0
BLACK MC.,209
SUPER RED II,3E5
RED M.M.,3N8
DK. RED M.M.,3Q3
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
DK.BLUE M.M.,8P4
GRAYISH BLUE M.M.,8Q3
LT.BLUE M.M.,8S1
BLUE ME.,8P1
UNPAINTED
76851ACOVER, FRONT SPOILER, RH
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER ME.,199
TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209
TYPE A:REFER TO ILLUSTRATION,SUPER RED 11,3E5
TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8
TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4
TYPE A:REFER TO ILLUSTRATION,DK. BLUE M.M.,8P4
TYPE A:REFER TO ILLUSTRATION,GRAYISH BLUE M.M.,8Q3
76852ACOVER, FRONT SPOILER, LH
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER ME.,199
TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209
TYPE A:REFER TO ILLUSTRATION,SUPER RED 11,3E5
TYPE A:REFER TO ILLUSTRATION,RED M.M.,3N8
TYPE A:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4
TYPE A:REFER TO ILLUSTRATION,DK. BLUE M.M.,8P4
TYPE A:REFER TO ILLUSTRATION,GRAYISH BLUE M.M.,8Q3
76853CRETAINER, FRONT SPOILER, NO.1
76854ARETAINER, FRONT SPOILER, NO.2
NO.1
NO.2
76877DPROTECTOR, FRONT SPOILER SIDE, RH
SILVER ME.,040 ,199
BLACK,209 ,3E5 ,3N8 ,6R4 ,8P4 ,8Q3
76878APROTECTOR, FRONT SPOILER SIDE, LH
SILVER ME.,040 ,199
BLACK,209 ,3E5 ,3N8 ,6R4 ,8P4 ,8Q3
9015960488
main90159-60488
9015960602
main90159-60602
9018306019
main90183-06019
9018905144
main90189-05144
9018906006
main90189-06006
9046705138
main90467-05138
18 parts on this diagram · 3 diagrams in section
