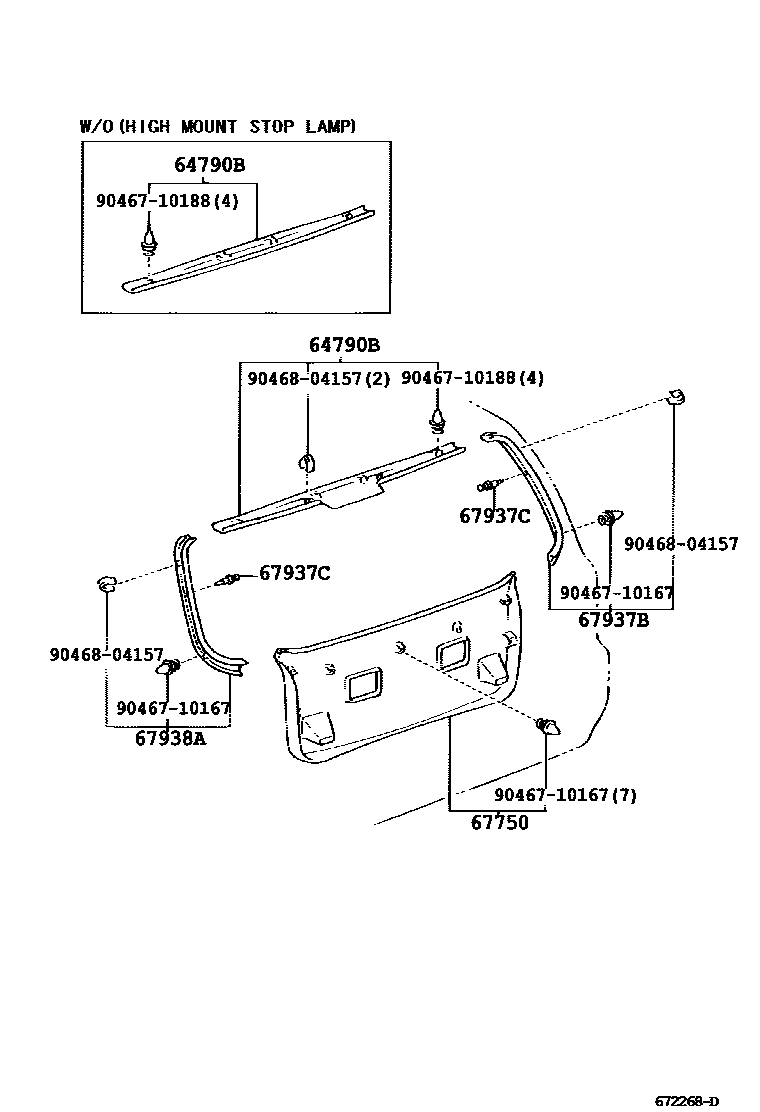

BACK DOOR PANEL & GLASS

0001 1 0002 1

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-13020-B0iZZE122..CONQ,LVN200110-200702

W(HIGH MOUNT STOP LAMP),DK.GRAY,TRIM1#

main64790-13020-B0iZZE122..CONQ,LVN200404-200702

W(HIGH MOUNT STOP LAMP),DK.GRAY,TRIM0#,1#

main64790-13020-B0iZZE122..CONQ,LVN200110-200404

W(HIGH MOUNT STOP LAMP),DK.GRAY,TRIM0#

main64790-13030-B0iZZE122..CONQ,LVN200110-200401

DK.GRAY,TRIM0#

main64790-13030-B0iZZE122..ULT200110-200702

DK.GRAY,TRIM1#

main64790-13030-B0iZZE122..CONQ,LVN200404-200702

DK.GRAY,TRIM0#,1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-13090-B0iZZE122..ULT200404-200702

DK.GRAY,TRIM0#,1#

main67750-13090-B0iZZE122..CONQ,LVN200110-200702

DK.GRAY,TRIM1#

main67750-13090-B0iZZE122..CONQ,LVN200110-200404

DK.GRAY,TRIM0#

67937BGARNISH, BACK DOOR SIDE, RH

main67937-13010-B0iZZE122..ULT200110-200702

DK.GRAY,TRIM1#

main67937-13010-B0iZZE122..ULT200110-200404

DK.GRAY,TRIM0#

main67937-13010-B0iZZE122..CONQ,LVN200404-200702

DK.GRAY,TRIM0#,1#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main64338-13010iZZE122200110-200702

67938AGARNISH, BACK DOOR SIDE, LH

main67938-13010-B0iZZE122..ULT200110-200404

DK.GRAY,TRIM0#

main67938-13010-B0iZZE122..CONQ,LVN200110-200702

DK.GRAY,TRIM1#

main67938-13010-B0iZZE122..CONQ,LVN200404-200702

DK.GRAY,TRIM0#,1#

9046710167

main90467-10167

9046710188

main90467-10188

9046804157

main90468-04157

8 parts on this diagram · 2 diagrams in section
