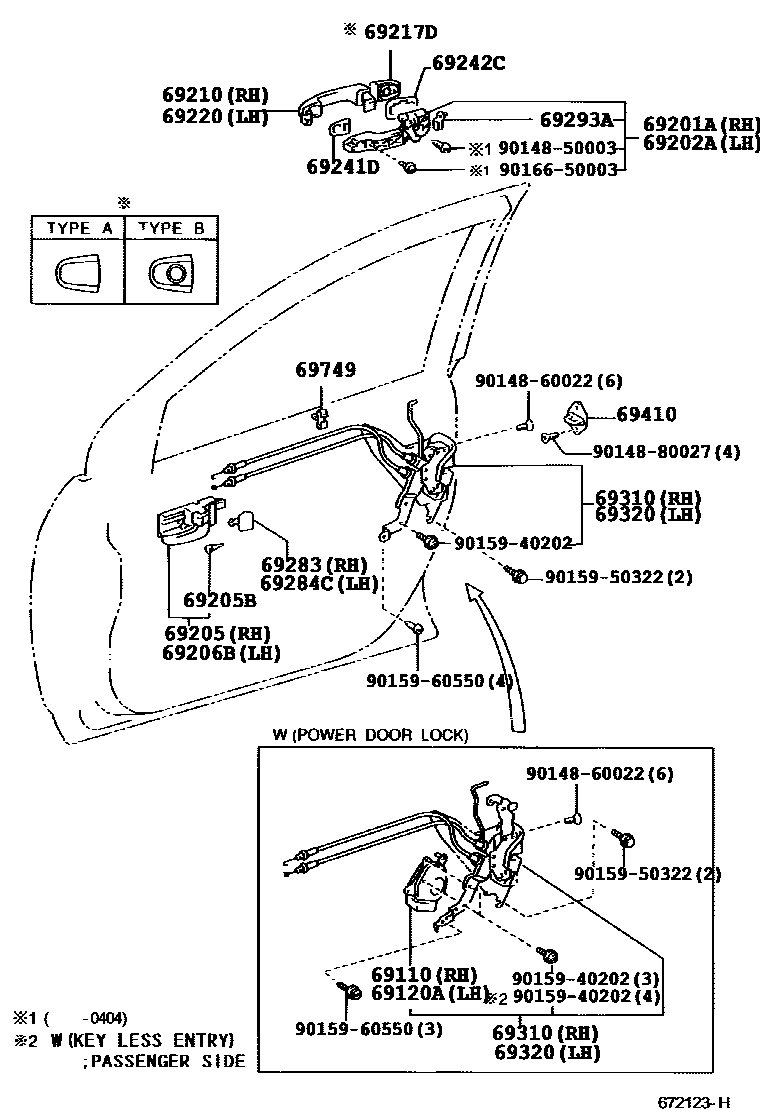

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(KEY LESS ENTRY)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,199
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAY M.M.,1C3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1C0
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),RED M.M.,3N8
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK. RED M.M.,3Q3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DARK GREEN MC.,6R4
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.GREEN M.M.,6S3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAYISH BLUE M.M.,8Q3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE,8Q4
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLUE ME.,8P1
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE M.M.,8S1
sub69217-12040
BLACK MATERIAL,TYPE B:REFER TO ILLUSTRATION, UNPAINTED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM10
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & WIRELESS DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9015960550
main90159-60550
9016650003
main90166-50003
26 parts on this diagram · 1 diagram in section
