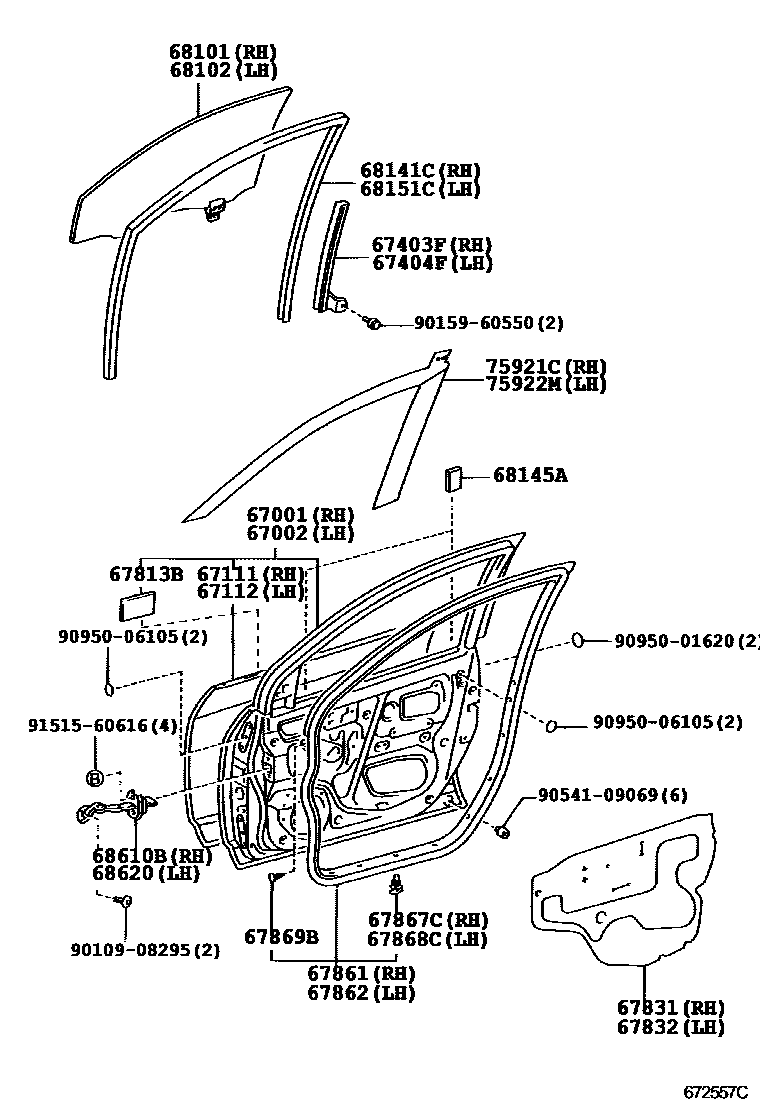

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE TABLE 0004 1TRIM CODE TABLE

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-1A620iZZE122200110-200112

sub67001-1A680

main67001-1A680iZZE122200112-200212

sub67001-1A681

main67001-1A681iZZE122200212-200702

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-1A580iZZE122200110-200112

sub67002-1A640

main67002-1A640iZZE122200112-200702

67111PANEL, FRONT DOOR, OUTER RH

main67111-12670iZZE122200110-200702

67112PANEL, FRONT DOOR, OUTER LH

main67112-12660iZZE122200110-200702

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12220iZZE122200110-200702

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12200iZZE122200110-200702

67813BPACKING, DOOR PROTECTOR

main67817-47010iZZE122200110-200702

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12630iZZE122200110-200702

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12410iZZE122200110-200702

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-1A020iZZE122200110-200702

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12870iZZE122200110-200702

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iZZE122200110-200702

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iZZE122200110-200702

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12050iZZE122200110-200702

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12A00iZZE122..CONQ200301-200702

*TT,T=3.5,GREEN

main68101-1A480iZZE122..LVN,ULT200110-200702

*UVCTT,T=3.5,GREEN

main68101-1A530iZZE122..CONQ200110-200301

*TT,T=3.5,GREEN

sub68101-12A00

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12A00iZZE122..CONQ200301-200702

*TT,T=3.5,GREEN

main68102-1A480iZZE122..LVN,ULT200110-200702

*UVCTT,T=3.5,GREEN

main68102-1A530iZZE122..CONQ200110-200301

*TT,T=3.5,GREEN

sub68102-12A00

68141CRUN, FRONT DOOR GLASS, RH

main68141-12510iZZE122200110-200201

main68141-12511iZZE122200201-200601

sub68141-12512

main68141-12512iZZE122200602-200702

68145ACUSHION, FRONT DOOR WINDOW

main69759-12110iZZE122200110-200702

68151CRUN, FRONT DOOR GLASS, LH

main68151-12210iZZE122200110-200201

main68151-12211iZZE122200201-200601

sub68151-12212

main68151-12212iZZE122200602-200702

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12160iZZE122200110-200404

sub68610-12161

main68610-12161iZZE122200404-200702

68620CHECK ASSY, FRONT DOOR, LH

main68620-12090iZZE122200110-200404

sub68620-12091

main68620-12091iZZE122200404-200702

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12030iZZE122200110-200111

sub75921-12031

main75921-12031iZZE122200111-200305

sub75921-12032

main75921-12032iZZE122200305-200702

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12030iZZE122200110-200111

sub75922-12031

main75922-12031iZZE122200111-200305

sub75922-12032

main75922-12032iZZE122200305-200702

9010908295

main90109-08295

9015960550

main90159-60550

9054109069

main90541-09069

9095001620

main90950-01620

9095006105

main90950-06105

9151560616

main91515-60616

29 parts on this diagram · 4 diagrams in section
