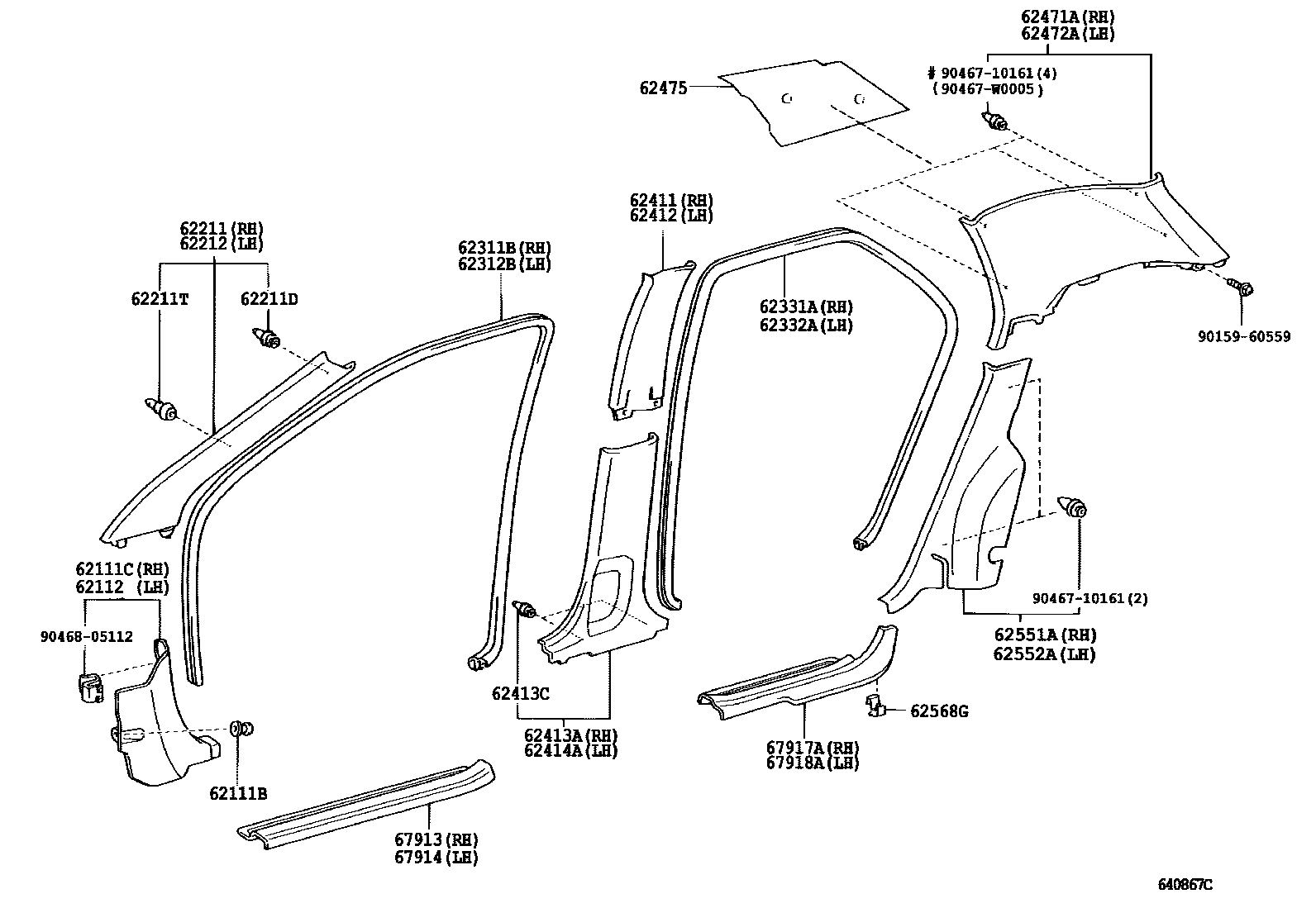

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
NEW ZEALAND PACKAGE,LT.GRAY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
(J)
(L)
62211TCLIP(FOR FRONT PILLAR GARNISH)
NEW ZEALAND PACKAGE
62212GARNISH, FRONT PILLAR, LH
NEW ZEALAND PACKAGE,LT.GRAY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
62411GARNISH, CENTER PILLAR, RH
NEW ZEALAND PACKAGE,LT.GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
NEW ZEALAND PACKAGE,LT.GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62471AGARNISH, ROOF SIDE, INNER RH
W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#
IVORY,TRIM0#
LT.GRAY,TRIM1#
62472AGARNISH, ROOF SIDE, INNER LH
NEW ZEALAND PACKAGE,LT.GRAY,TRIM1#
IVORY,TRIM0#
LT.GRAY,TRIM1#
62475PAD, ROOF SIDE INNER GARNISH
62551ACOVER, REAR SEAT SIDE, RH
62552ACOVER, REAR SEAT SIDE, LH
62568GCLAMP, ROCKER PANEL INNER PROTECTOR, NO.3
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
NEWZEALAND PACKAGE,DK.GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
NEWZEALAND PACKAGE,DK.GRAY,TRIM1#
9015960559
main90159-60559
9046710161
main90467-10161
90467W0005
main90467-W0005
9046805112
main90468-05112
30 parts on this diagram · 1 diagram in section
