FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050iZZE122200404-200702

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040iZZE122200404-200702

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iZZE122200110-200404

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-13010iZZE122200404-200702

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-13010iZZE122200404-200702

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-1A290iZZE122200110-200404

main57101-1A330iZZE122200404-200702

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-1A270iZZE122200110-200404

main57102-1A310iZZE122200404-200702

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12140iZZE122200110-200404

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12130iZZE122200110-200404

57111MEMBER, FRONT SIDE, RH

main57111-12240iZZE122200110-200404

57112MEMBER, FRONT SIDE, LH

main57112-12170iZZE122200110-200404

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12190iZZE122200110-200404

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12160iZZE122200110-200404

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12080iZZE122200110-200404

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12080iZZE122200110-200404

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-12130iZZE122200110-200404

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12130iZZE122200110-200404

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-12050iZZE122200110-200404

main57141-12080iZZE122200404-200702

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-12060iZZE122200110-200404

main57142-12090iZZE122200404-200702

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iZZE122200110-200404

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-12080iZZE122200404-200702

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-12060iZZE122200110-200404

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-13010iZZE122200404-200702

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-13010iZZE122200404-200702

57197BOX, TORQUE, FRONT RH

main57197-12030iZZE122200110-200404

57198BOX, TORQUE, FRONT LH

main57198-12030iZZE122200110-200404

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-12090iZZE122200110-200404

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-12090iZZE122200110-200404

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12570iZZE122200110-200404

main57401-12630iZZE122200404-200605

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12590iZZE122200110-200404

main57402-12680iZZE122200606-200702

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-13907iZZE122200110-200404

main57601-13913iZZE122200411-200702

NEWZEALAND SPEC

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12964iZZE122200404-200702

main57602-13911iZZE122200411-200702

NEWZEALAND SPEC

main57602-1A905iZZE122200110-200404

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12180iZZE122200110-200404

main57605-12210iZZE122200411-200702

NEWZEALAND SPEC

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-13130iZZE122200110-200404

main57606-13131iZZE122200404-200702

main57606-13191iZZE122200411-200702

NEWZEALAND SPEC

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-02907iZZE122200411-200702

NEWZEALAND SPEC

main57615-13912iZZE122200404-200702

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-02906iZZE122200411-200702

NEWZEALAND SPEC

main57616-13909iZZE122200110-200404

9011506219

main90115-06219

9033301011

main90333-01011

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9095001478

main90950-01478

9095001550

main90950-01550

9095001949

main90950-01949

9095001959

main90950-01959

9095001963

main90950-01963

91641C0816

main91641-C0816

91641K0816

main91641-K0816

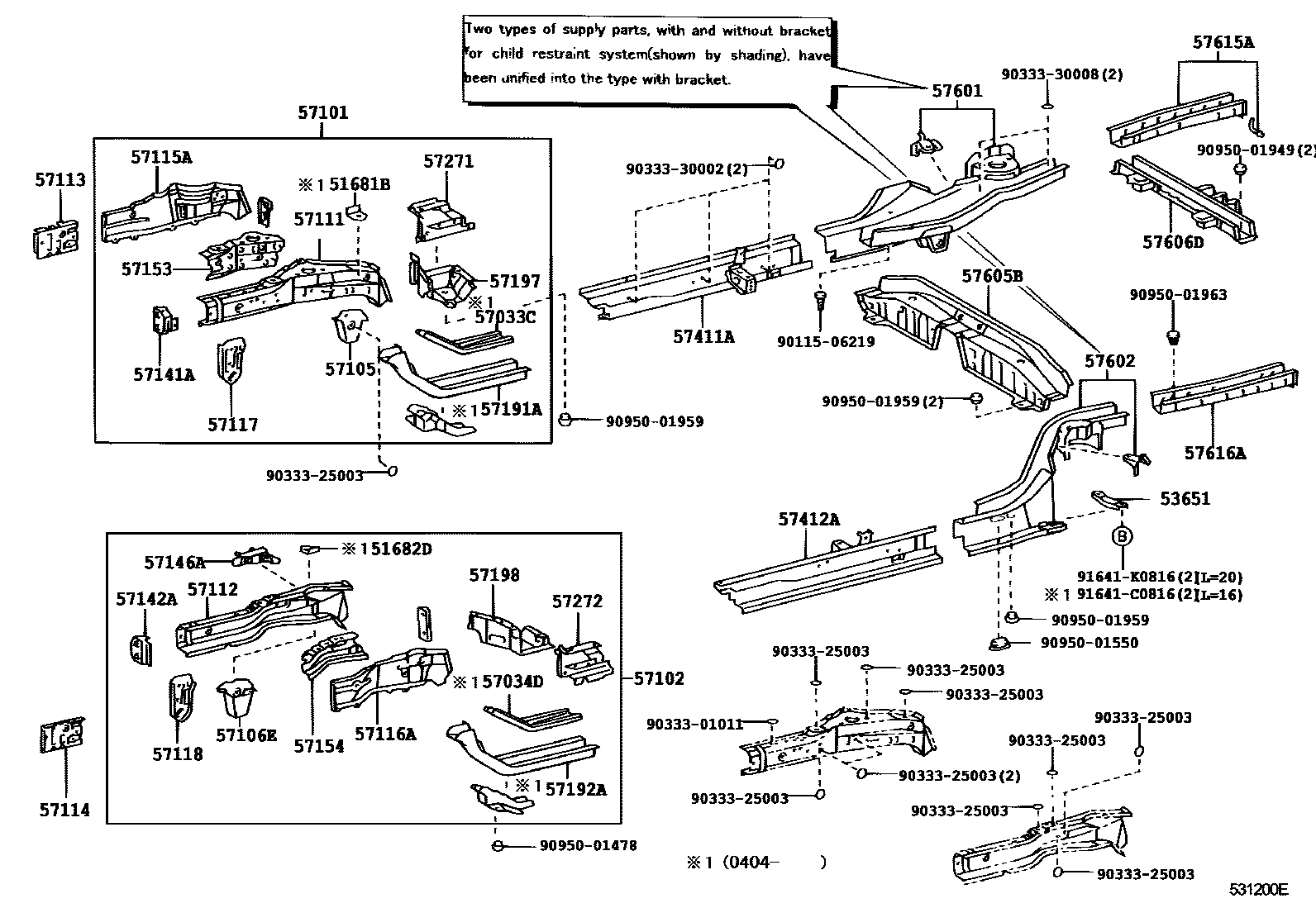

48 parts on this diagram · 1 diagram in section
