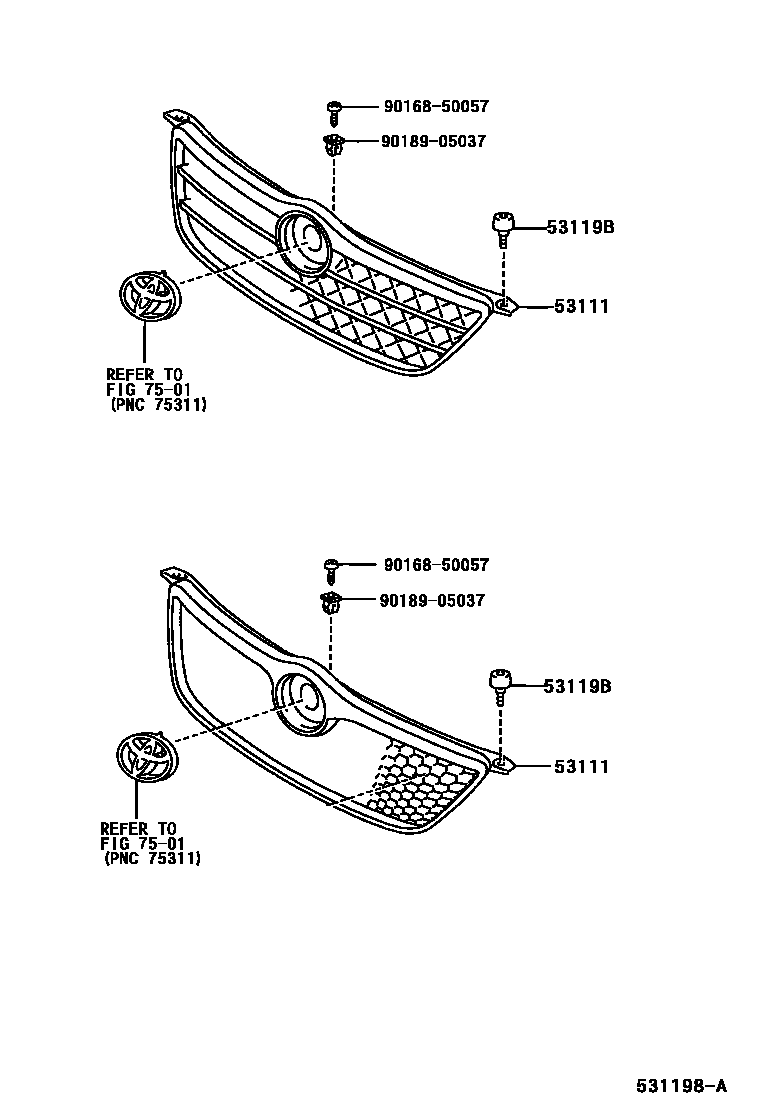

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-13200iZZE122..LVN200110-200404

main53111-13290iZZE122200404-200702

main53111-1A902iZZE122..CONQ,ULT200110-200404

CHROME PLATED

main53111-1A903iZZE122..CONQ200110-200404

BLACK

53119BPROTECTOR, RADIATOR GRILLE

main53119-12150×2iZZE122200110-200404

main53119-13020×2iZZE122200404-200702

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016850057

main90168-50057

9018905037

main90189-05037

5 parts on this diagram · 2 diagrams in section
