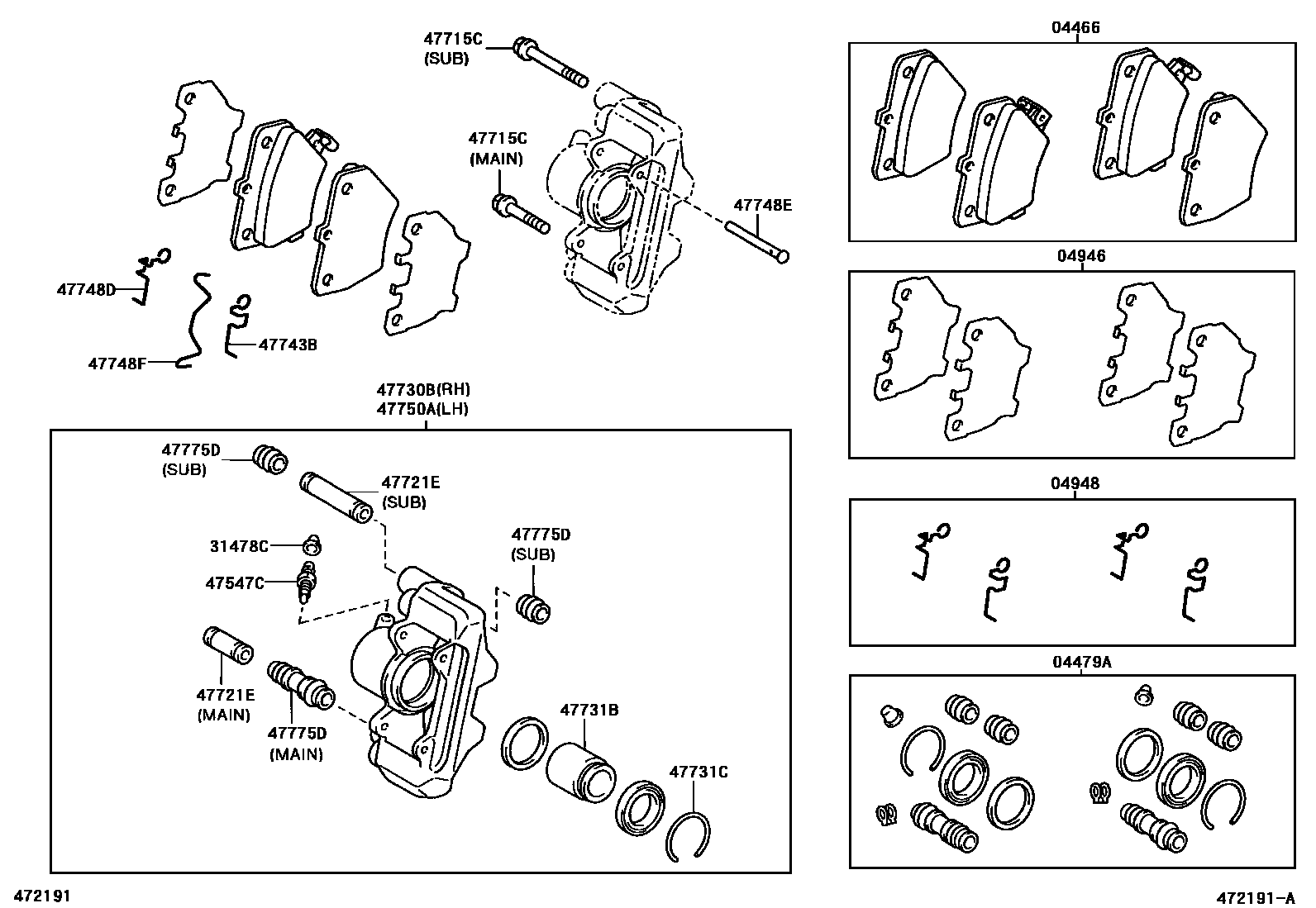

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK PA544
04479ACYLINDER KIT, DISC BRAKE, REAR
W(ABS)
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
MAIN
SUB
47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)
SUB
MAIN
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
W(ABS)
47731BPISTON, REAR DISC BRAKE
W(ABS)
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
W(ABS)
47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748EPIN, W/HOLE(FOR REAR DISC BRAKE)
47748FCLIP(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
W(ABS)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
MAIN
SUB
17 parts on this diagram · 1 diagram in section
