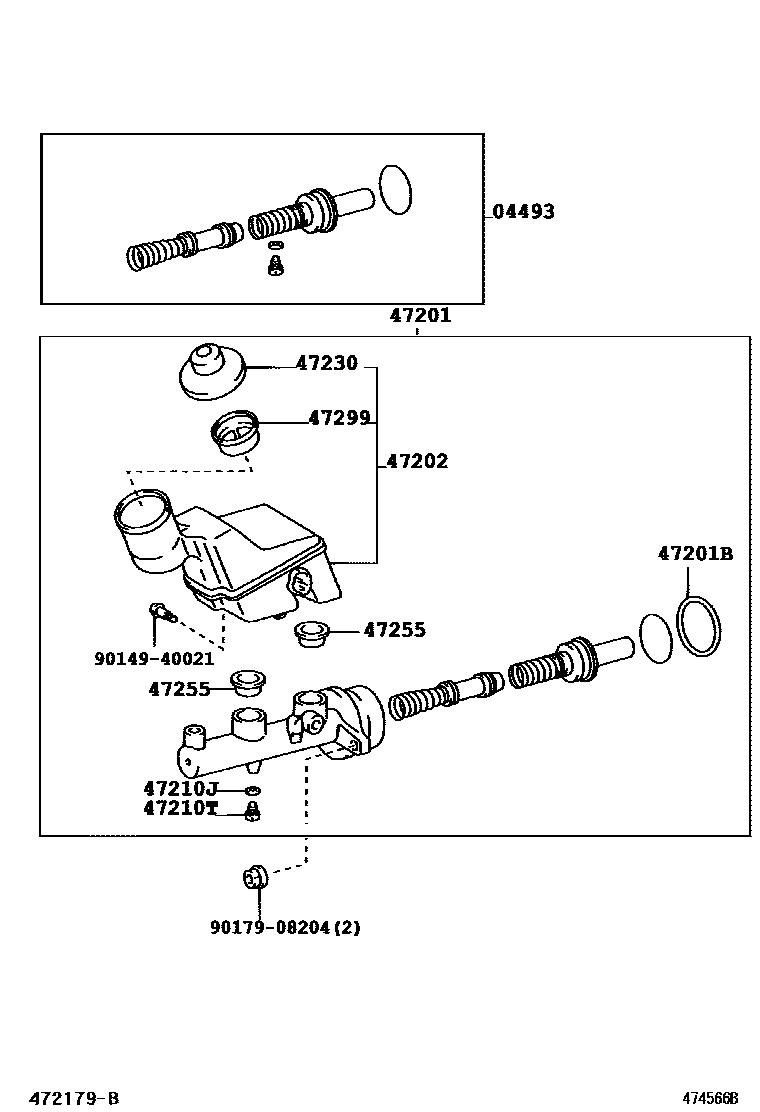

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iZZE122200110-200404

sub04493-1A030

main04493-1A030iZZE122200404-200702

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-1A330iZZE122..ATM200110-200702

main47201-1A340iZZE122..MTM200110-200702

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iZZE122200110-200702

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12120iZZE122..ATM200110-200404

sub47220-12121

sub90149-40021

main47220-12121iZZE122..ATM200404-200702

main47220-12130iZZE122..MTM200110-200404

sub47220-12131

sub90149-40021

main47220-12131iZZE122..MTM200404-200702

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iZZE122200112-200702

main90430-06104iZZE122200110-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iZZE122200110-200702

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iZZE122200110-200702

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iZZE122200110-200702

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZZE122200110-200702

9014940021

main90149-40021

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
