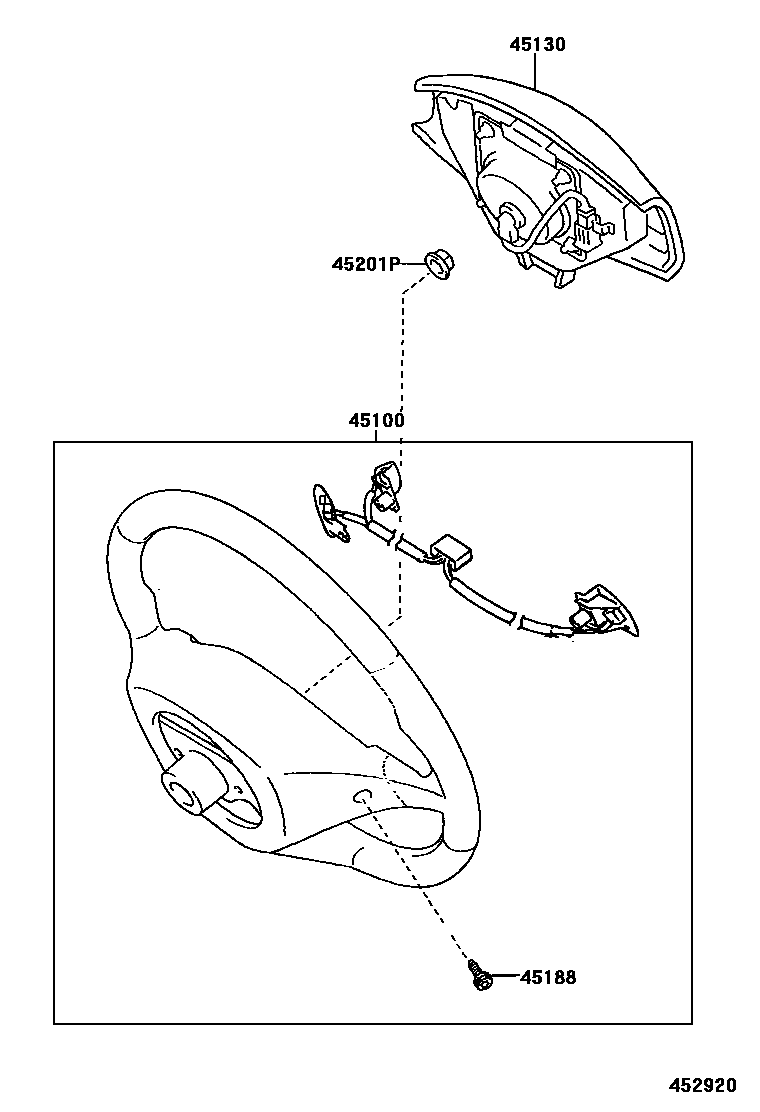

STEERING WHEEL

0001 13-SPOKE 0002 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-13050-B0iZZE122..LVN200404-200702

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-1A020-B0iZZE122..CONQ200110-200404

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-1A030-B0iZZE122..ULT200404-200702

4-SPOKE,LEATHER,DK.GRAY,TRIM0#,1#

main45100-1A060-B0iZZE122..LVN200110-200404

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-13060-B0iZZE122..LVN200404-200702

DK.GRAY,TRIM1#

main45130-1A270-B0iZZE122..LVN200110-200404

DK.GRAY,TRIM1#

main45130-1A280-B0iZZE122..CONQ; ZZE122..ULT200110-200404

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

main45130-1A320-B0iZZE122..CONQ; ZZE122..ULT200404-200702

DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iZZE122..CONQ,ULT200110-200401

L=18

main90148-60007×2iZZE122..LVN200110-200312

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iZZE122200110-200404

4 parts on this diagram · 2 diagrams in section
