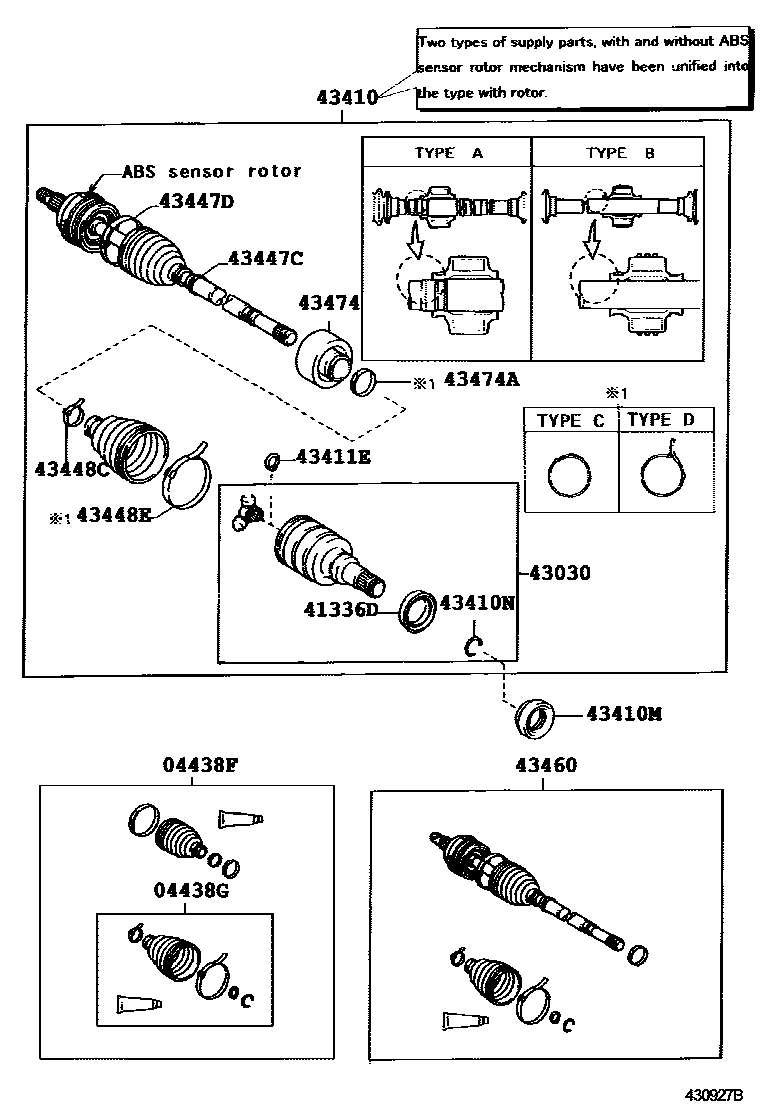

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
PNC 43410=TYPE A
PNC 43410=TYPE B
PNC 43410=TYPE B
PNC 43410=TYPE A
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
(L)
(J)
(L)
(J)
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE A:REFER ILLUST.
W(ABS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
W(ABS),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE C:REFER TO ILLUSTRATION
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
PNC 43410=TYPE A
TYPE B:REFER TO ILLUSTRATION,(L)
TYPE B:REFER ILLUST.
PNC 43410=TYPE B
TYPE C:REFER TO ILLUSTRATION
W(ABS),PNC 43410=TYPE B
W(ABS),PNC 43410=TYPE B
W(ABS),PNC 43410=TYPE A
PNC 43410=TYPE A
PNC 43410=TYPE B
43474DAMPER, DRIVE SHAFT
PNC 43410=TYPE A
PNC 43410=TYPE B
PNC 43410=TYPE A
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
15 parts on this diagram · 5 diagrams in section
