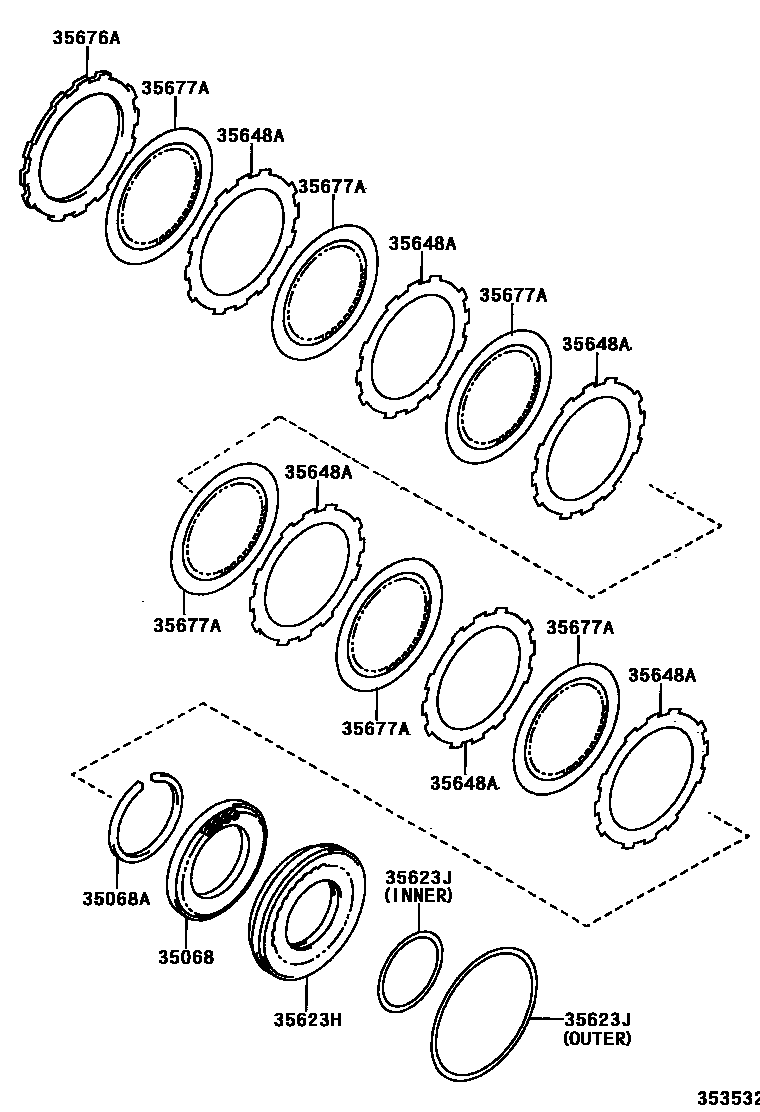

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A245E 0002 1U341E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010200110-200510

main35068-52030200510-200702

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001200110-200510

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030200110-200510

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004200110-200510

main90301-99131200110-200510

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020200110-200510

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030200110-200404

main35676-32010200404-200510

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12080200110-200201

main35677-32080200201-200510

7 parts on this diagram · 2 diagrams in section
