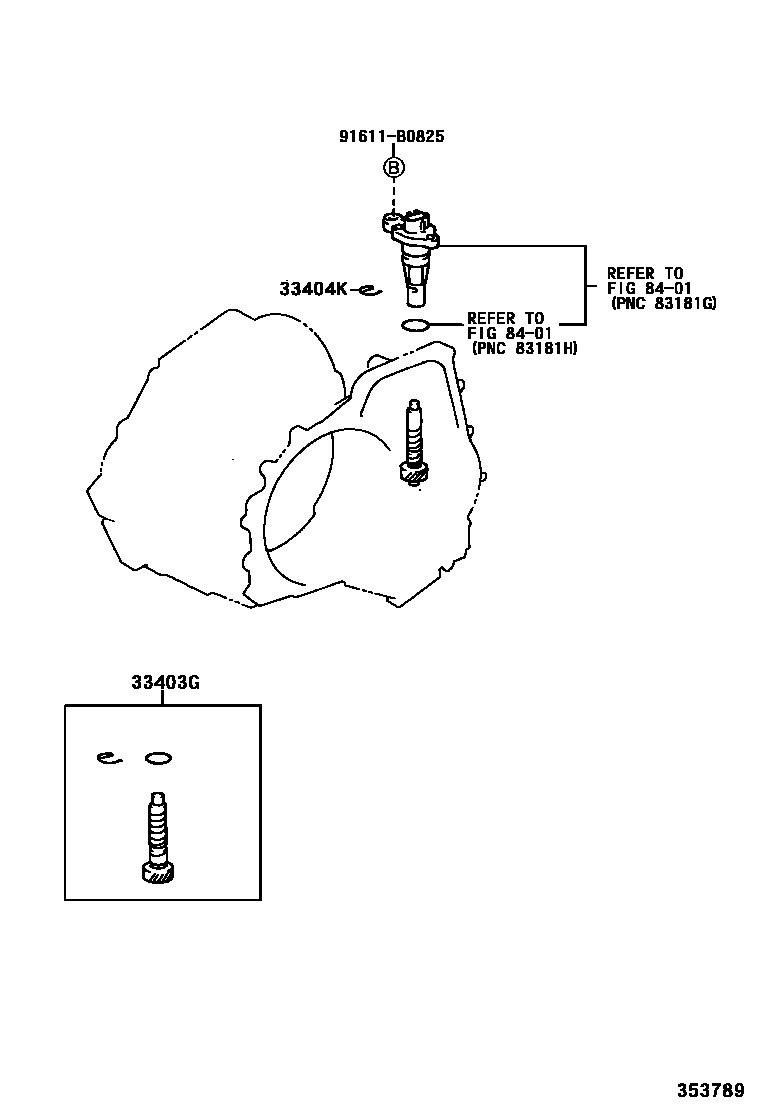

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A245E 0002 1U341E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455iZZE122..ATM200110-200404

N=30,MARK 30:35

main33403-29525iZZE122..ATM200510-200702

N=21,MARK 21:25

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iZZE122..ATM200110-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

4 parts on this diagram · 2 diagrams in section
