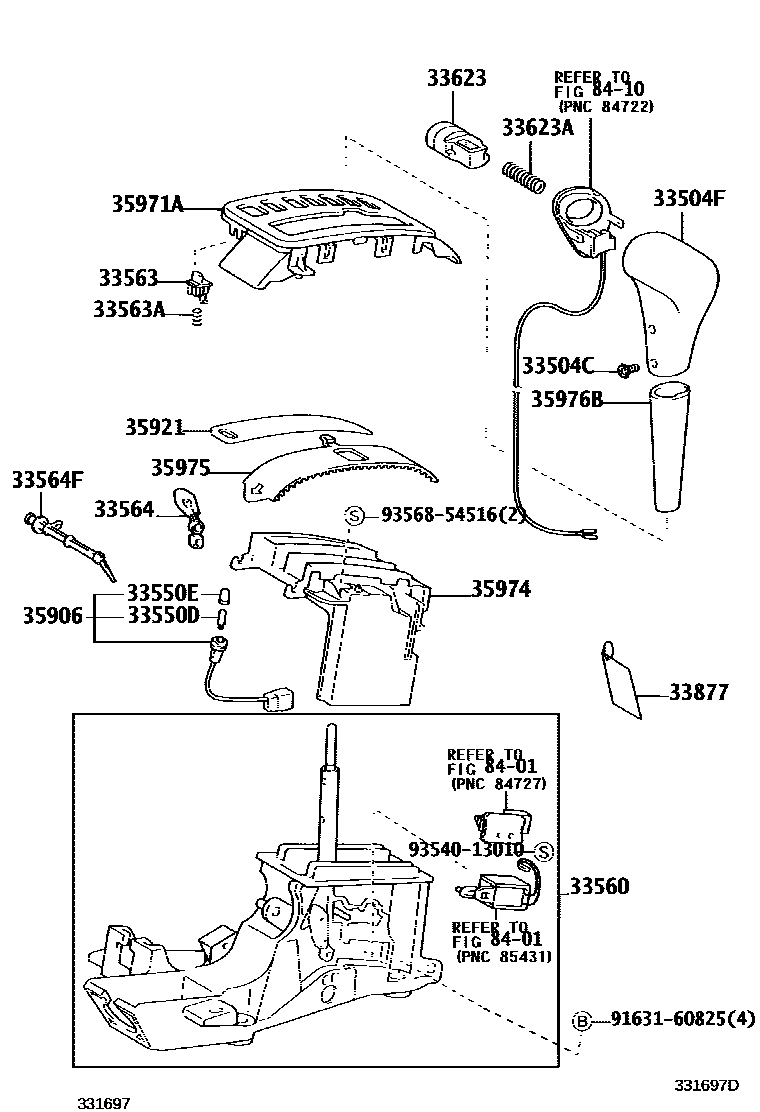

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iZZE122..ATM200110-200404

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iZZE122..MTM..CONQ200110-200404

DK.GRAY,TRIM1#

main33504-22140-B2iZZE122..MTM..ULT200404-200702

DK.GRAY,TRIM0#,1#

main33542-12310-B0iZZE122..ATM..CONQ200110-200404

DK.GRAY,TRIM1#

main33542-12330-B0iZZE122..ATM..ULT200404-200702

DK.GRAY,TRIM0#,1#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iZZE122..ATM200110-200404

12V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iZZE122..ATM200110-200404

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12050iZZE122..ATM200110-200309

main33560-12051iZZE122..ATM200309-200404

33563BUTTON, SHIFT LOCK RELEASE

main33563-12190iZZE122..ATM200110-200404

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iZZE122..ATM200404-200702

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-12130iZZE122..ATM200404-200702

33564FLINK, SHIFT LOCK RELEASE, NO.2

main33564-12150iZZE122..ATM200110-200404

33623BUTTON, SHIFT LEVER KNOB

main33623-12170-B0iZZE122..ATM..ULT200110-200404

DK.GRAY,TRIM0#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iZZE122..ATM200110-200404

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iZZE122..ATM200110-200404

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12200iZZE122..ATM200110-200404

35921PLATE, CONTROL POSITION INDICATOR

main35921-12530iZZE122..ATM200110-200404

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12480iZZE122..ATM200110-200404

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12240iZZE122..ATM200110-200404

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12290iZZE122..ATM200110-200404

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12120-B0iZZE122..ATM..ULT200110-200404

DK.GRAY,TRIM0#

8401

8410

9163160825

main91631-60825

9354013010

main93540-13010

9356854516

main93568-54516

23 parts on this diagram · 3 diagrams in section
