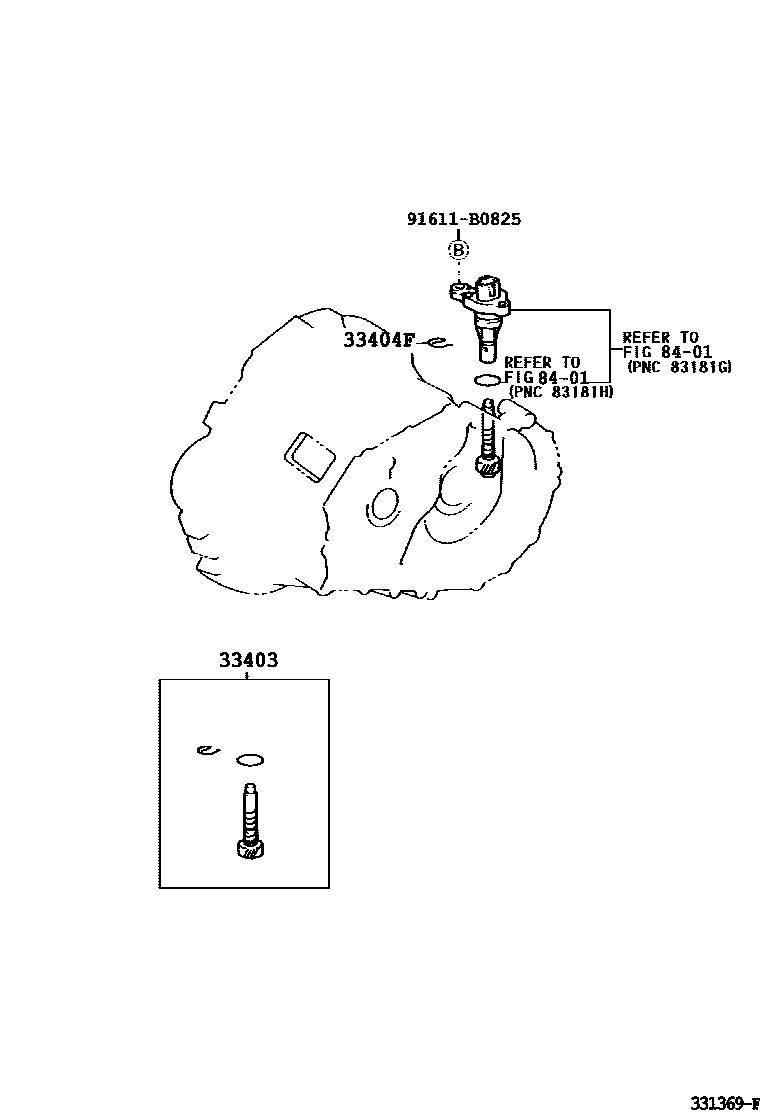

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iZZE122..MTM..CONQ200110-200303

N=30,MARK 30:35

main33403-29395iZZE122..MTM200110-200404

N=29,MARK 29:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iZZE122..MTM200110-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section
