CLUTCH HOUSING & TRANSMISSION CASE (MTM)

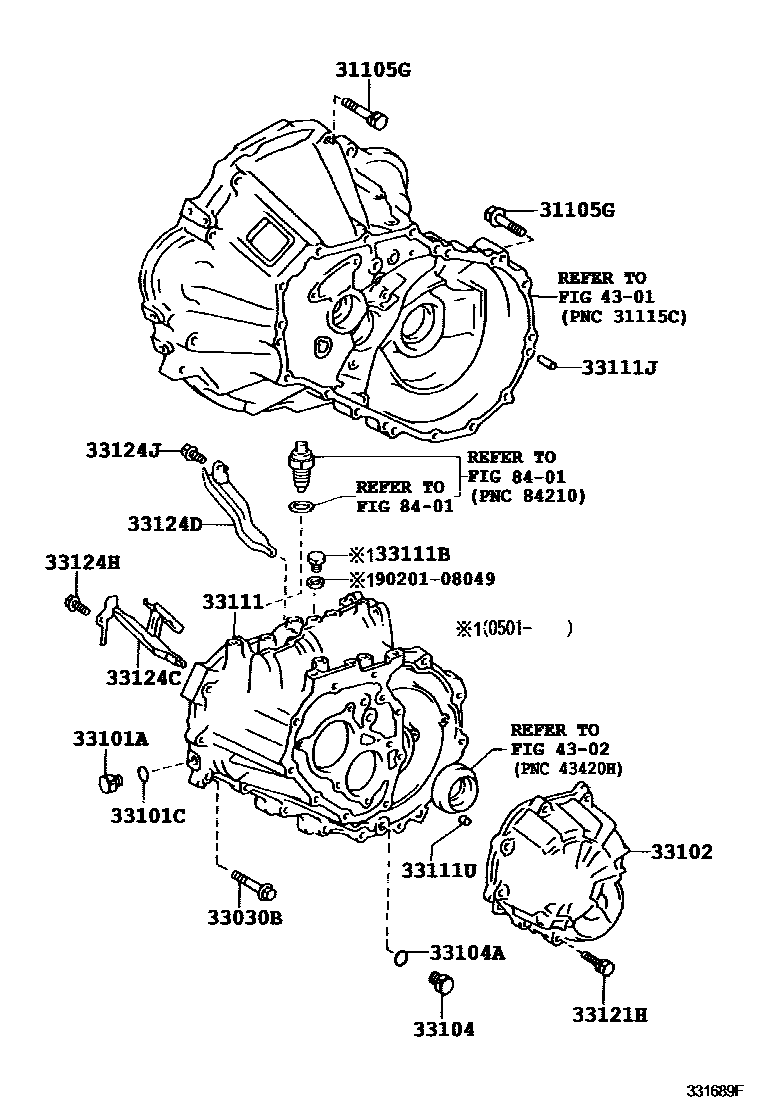

Parts diagram

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91619-61255×2i200110-200404

*12-1.25PX55-30

main91642-81055×2i200110-200404

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×3i200110-200404

*8-1.25PX45-27.5

main90105-08353×13i200404-200702

*8-1.25PX50-30

main90105-08430×3i200407-200702

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006i200110-200404

main90341-18033i200506-200702

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i200110-200404

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021i200110-200404

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i200110-200404

main90341-18033i200506-200702

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i200404-200702

33111CASE, MANUAL TRANSMISSION

main33111-17100i200110-200301

main33111-17101i200404-200501

main33111-17102i200501-200702

33111BBOLT, STUD OR BOLT(FOR TRANSMISSION CASE)

main90101-08166i200501-200702

*8-1.25PX14-12

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4i200110-200404

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2i200110-200404

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08782×9i200603-200702

main91611-60835×9i200404-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050i200110-200404

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021i200110-200404

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820i200110-200404

33124JBOLT, W/WASHER

main91611-G0820i200110-200404

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9020108049

main90201-08049

20 parts on this diagram · 1 diagram in section
