TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

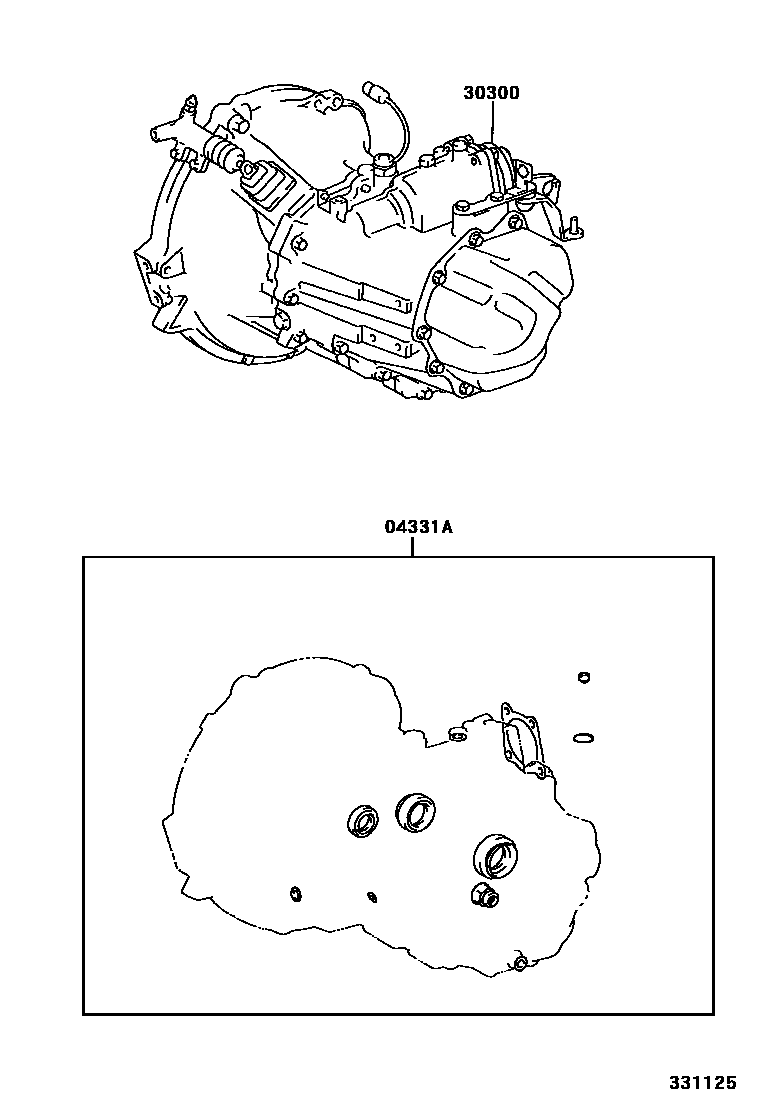

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12540i200404-200510

main04331-12580i200511-200702

main04331-20100i200110-200404

30300TRANSAXLE ASSY, MANUAL

main30300-1A821i200110-200404

C52

2 parts on this diagram · 1 diagram in section
